Solenoid Valve Operation Chart

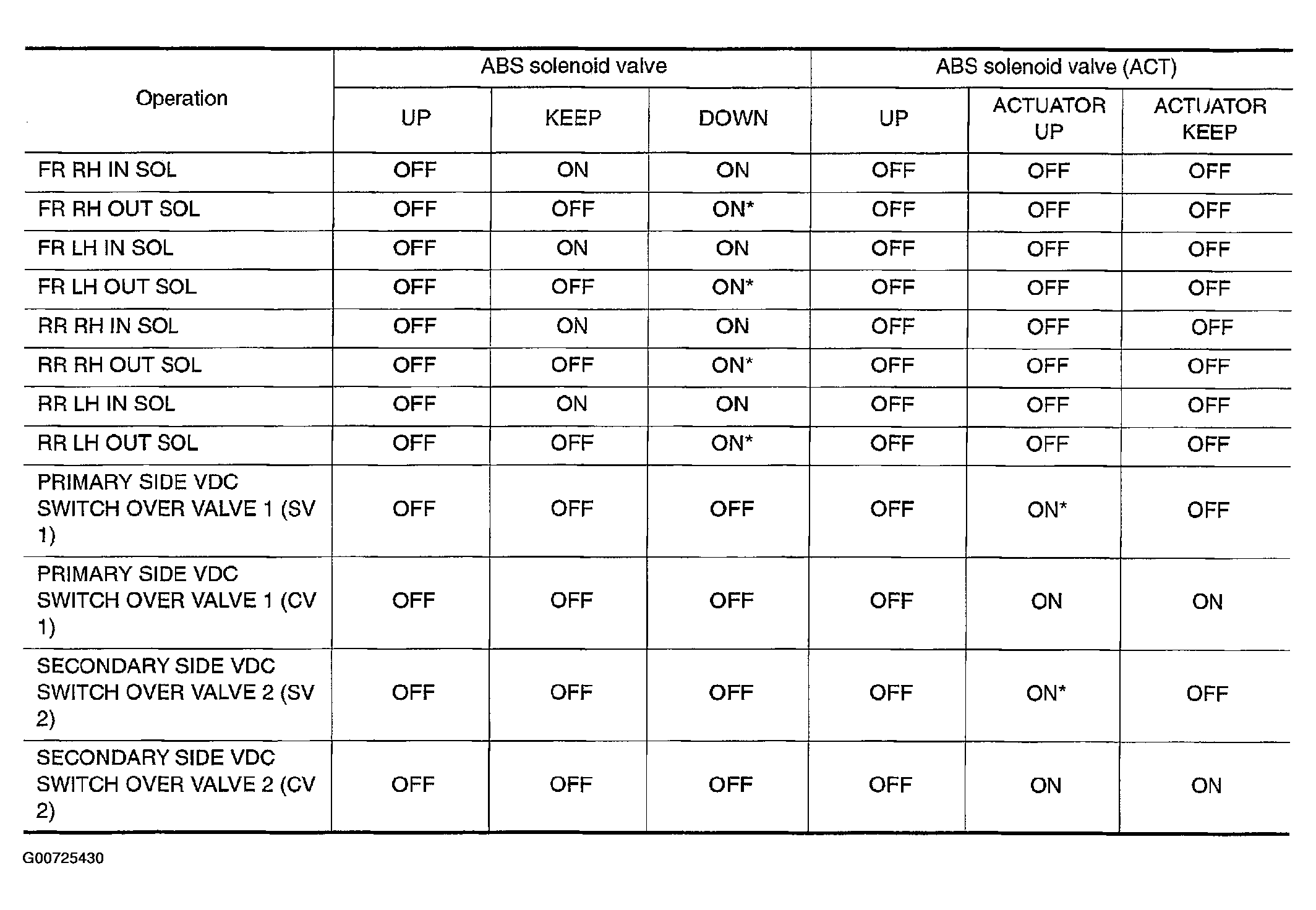

Fig 1: Displaying Solenoid Valve Operation Chart

G00725430

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
"TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.
After "TEST IS STOPPED" is displayed, touch "BACK" and conduct the test from step 8.
