Diagnostic Procedure 4
Diagnostic procedure 4, see
Fig 1
.

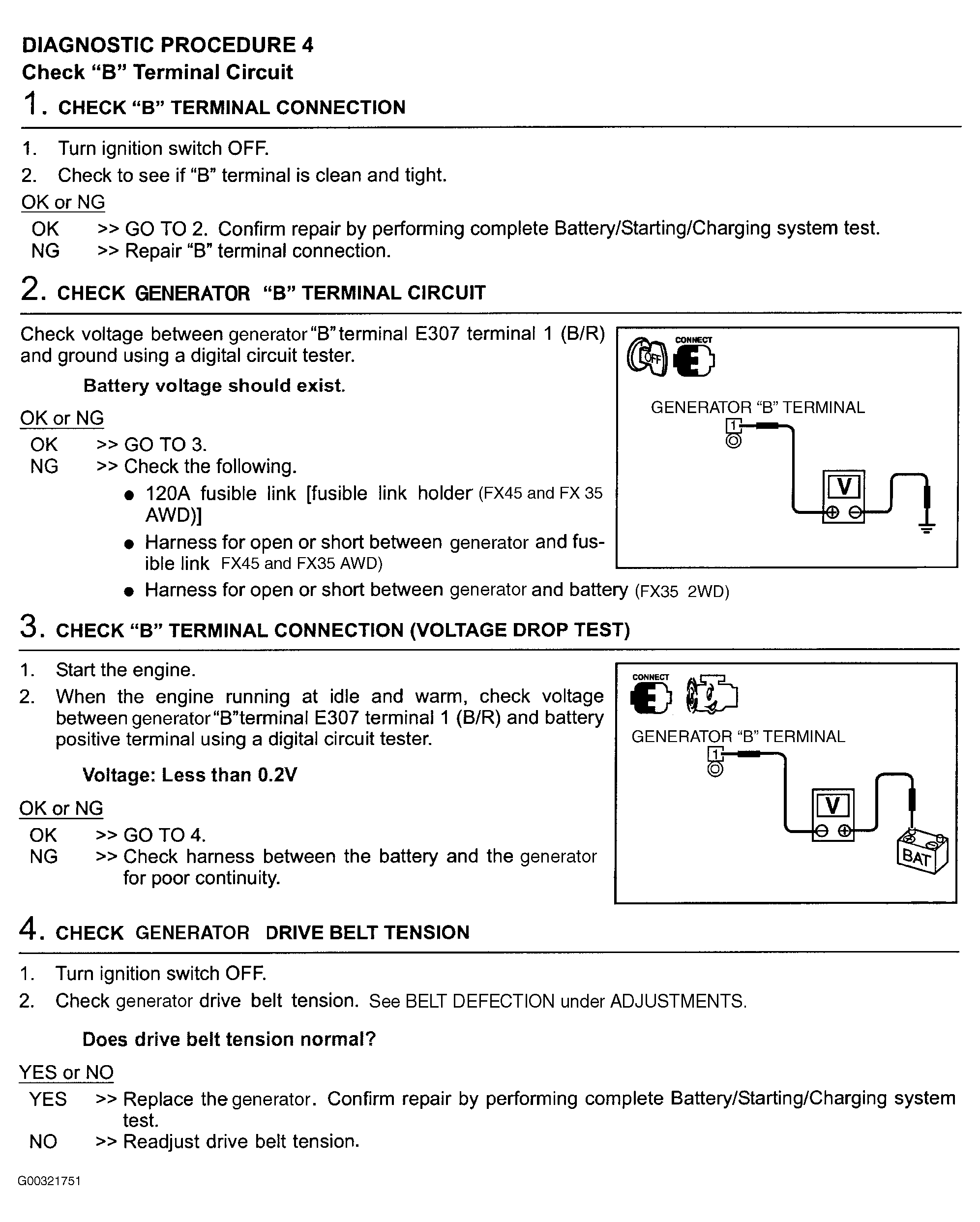

Fig 1: Diagnostic Procedure 4
Courtesy of NISSAN MOTOR CO., U.S.A.
