Infiniti
›
2004
›
FX45
›
Repair and Diagnosis
›
Electrical
›
Gauges
›
Combination Meters
›
Circuit Diagram
Circuit Diagram

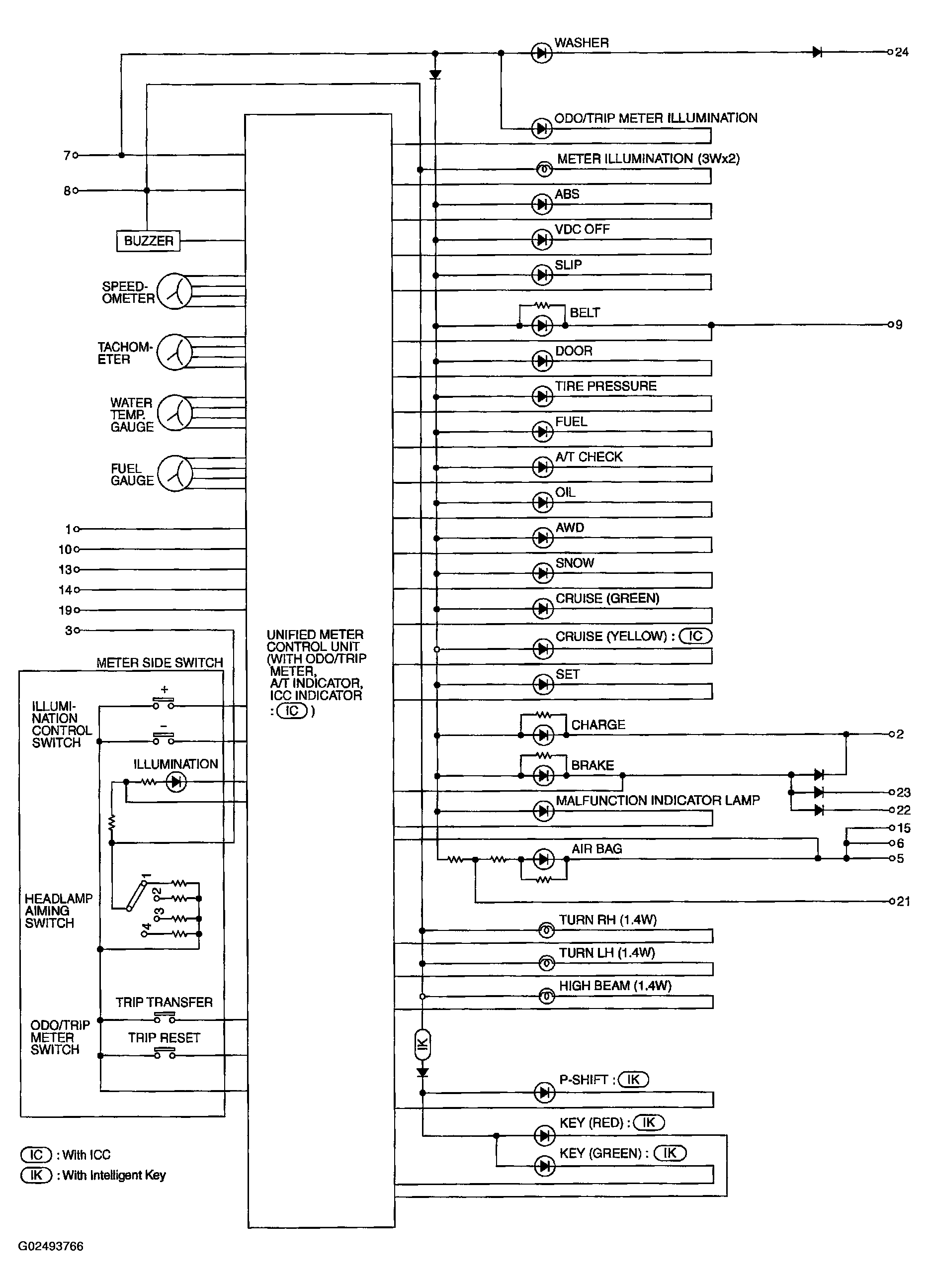

Fig 1: Combination Meter Circuit Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
