Symptom Chart 2
Symptom Chart 2

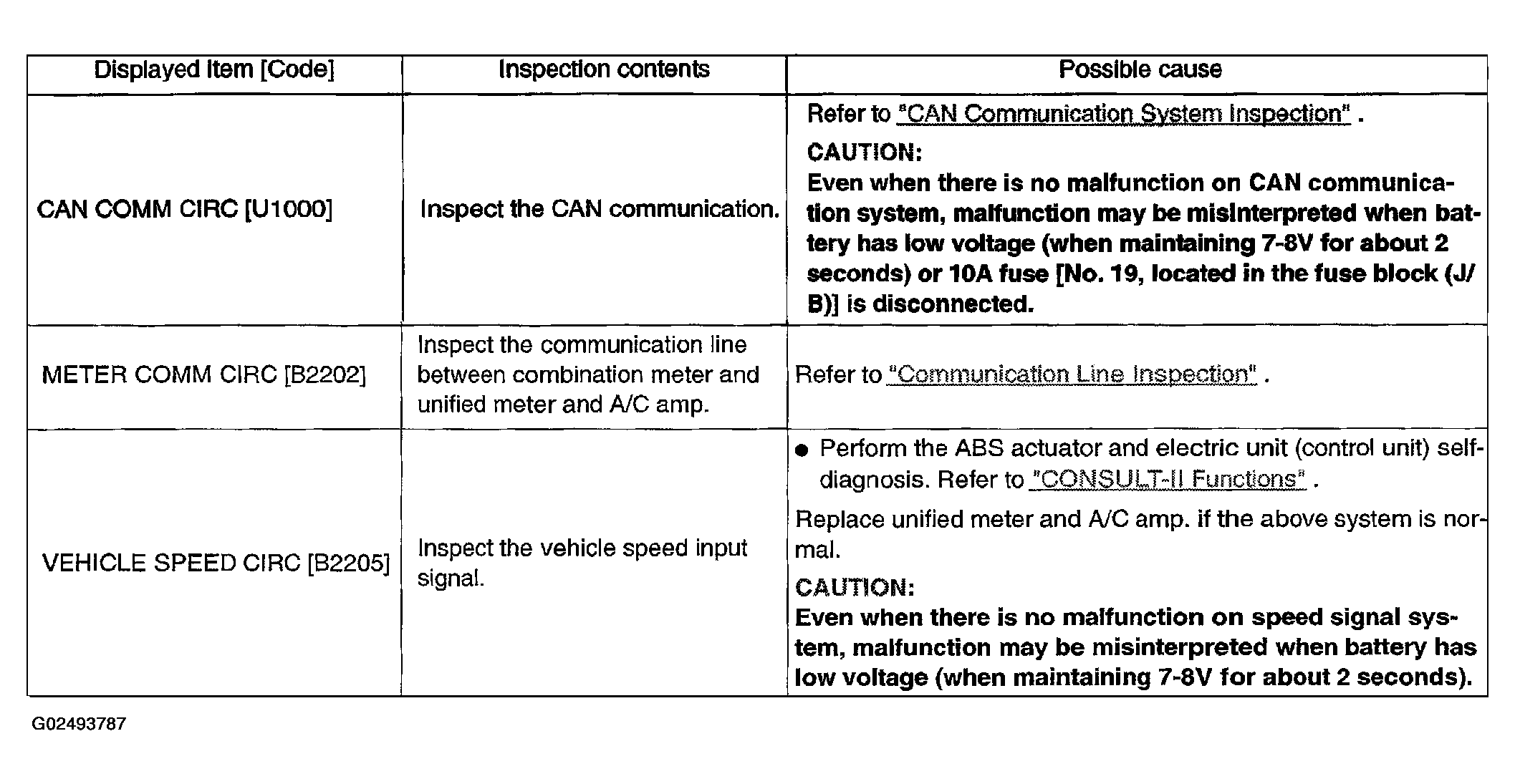

Fig 1: Identifying Causes Of Trouble Codes
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
