Idle Speed and Ignition Timing Check
›
Ignition Timing
›
Method B
Method B
Remove No. 1 ignition coil.

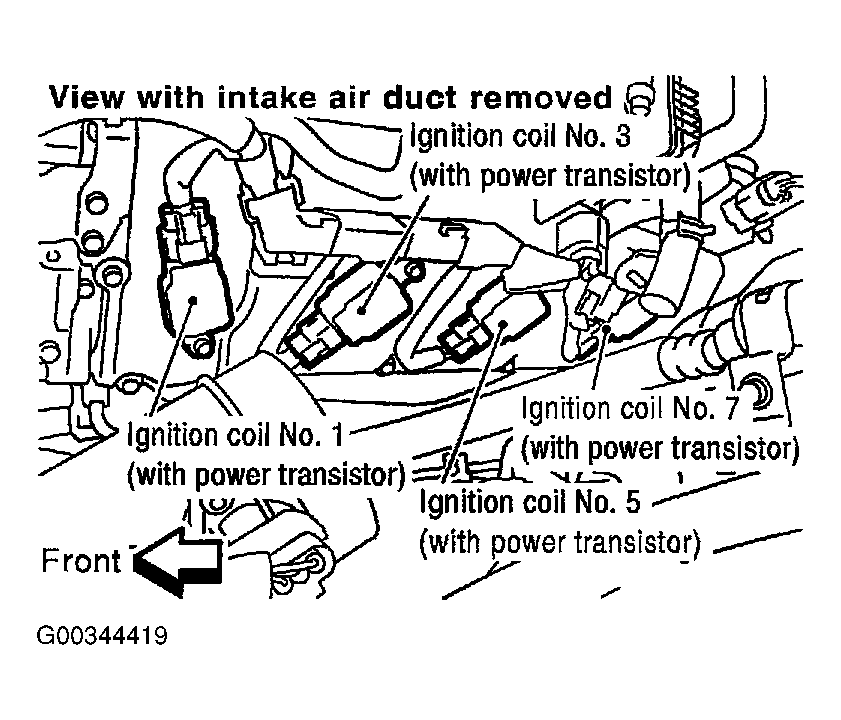

Fig 1: Locating & Identifying Ignition Coils
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

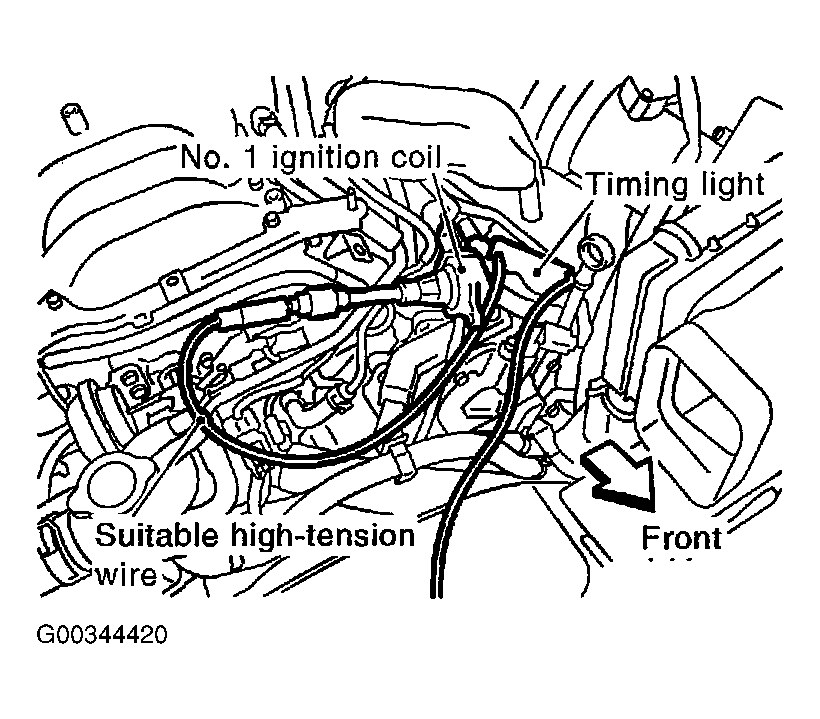

Fig 2: Identifying No. 1 Ignition Coil, High-Tension Wire & Timing Light
Courtesy of NISSAN MOTOR CO., U.S.A.

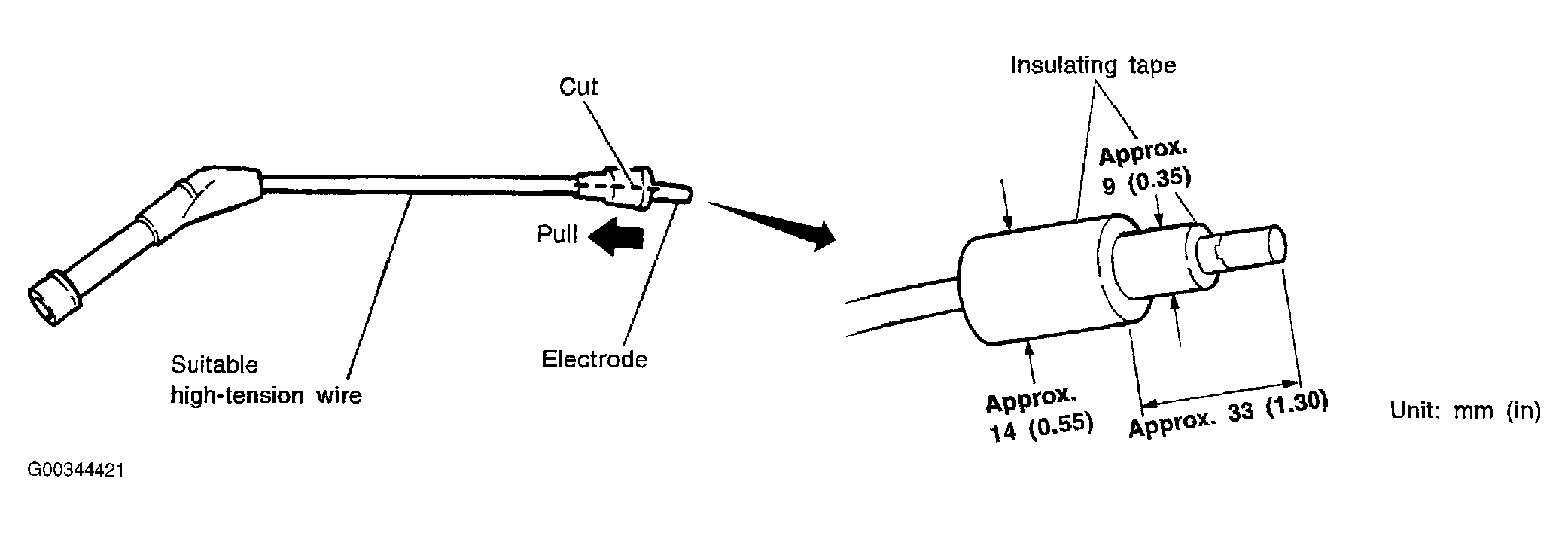

Fig 3: Identifying Dimensions Of High Tension Wire Electrode
Courtesy of NISSAN MOTOR CO., U.S.A.
Check ignition timing. See
Figure
.
