Intake Valve Timing Control Position Sensor

Disconnect intake valve timing control position sensor harness connector.
Loosen the fixing bolt of the sensor.
Remove the sensor. See Figure .
Visually check the sensor for chipping.
Check resistance as shown below.

Fig 1: Testing Intake Valve Timing Control Position Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.

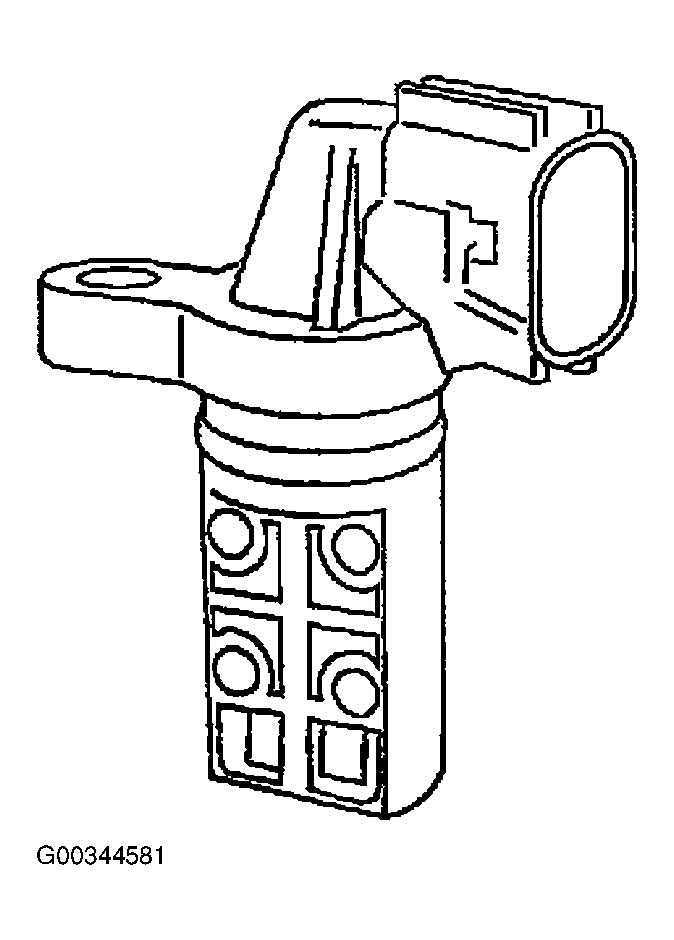

Fig 2: Identifying Intake Valve Timing Control Position Sensor Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace intake valve timing control position sensor.
