CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

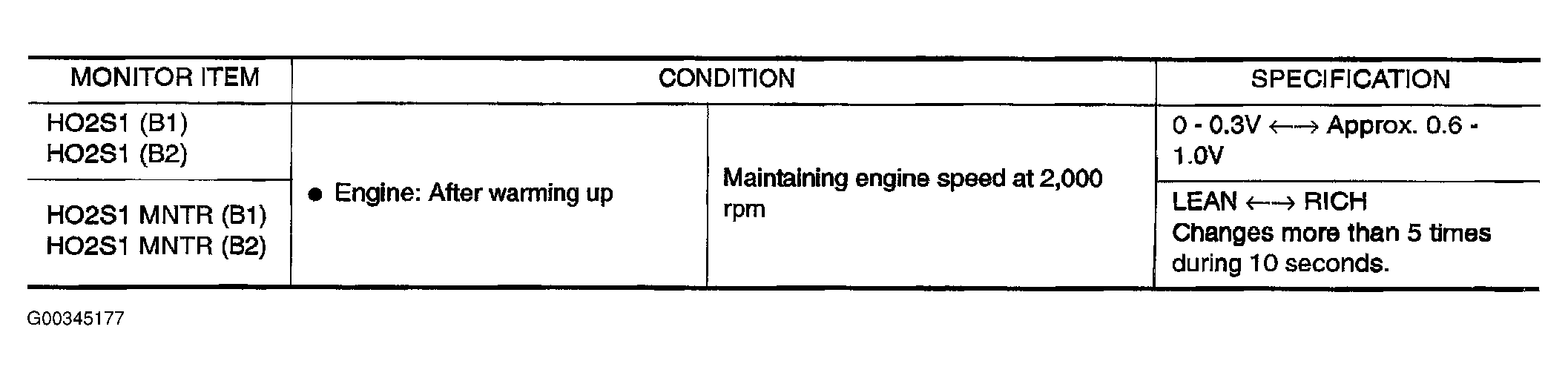

Fig 1: Identifying Heated Oxygen Sensor 1 Bank 1 & 2 Specifications (CONSULT-II)

Courtesy of NISSAN MOTOR CO., U.S.A.
