Main 12 causes of Overheating

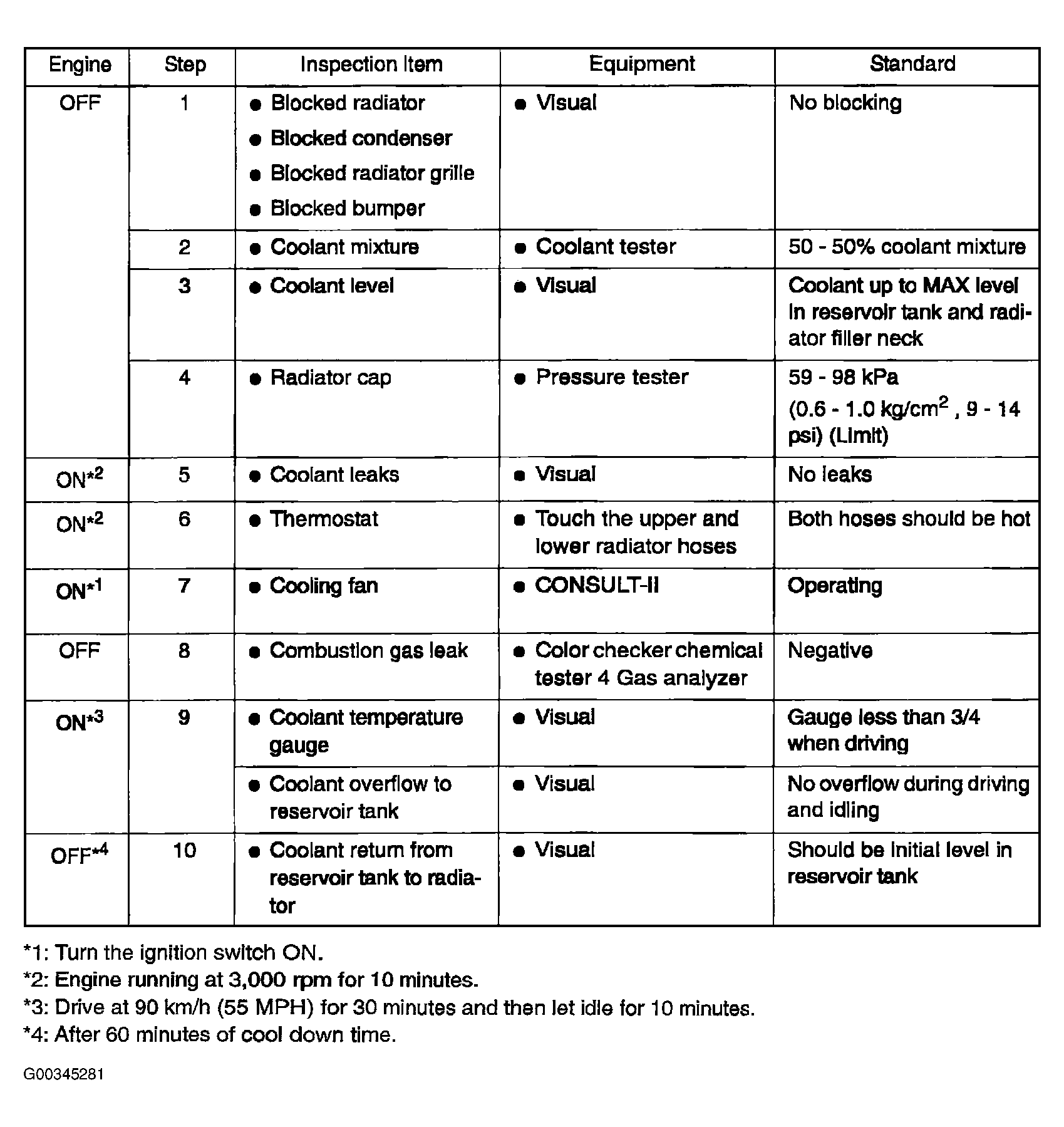

Fig 1: Identifying Conditions That Lead To Engine Overheating (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

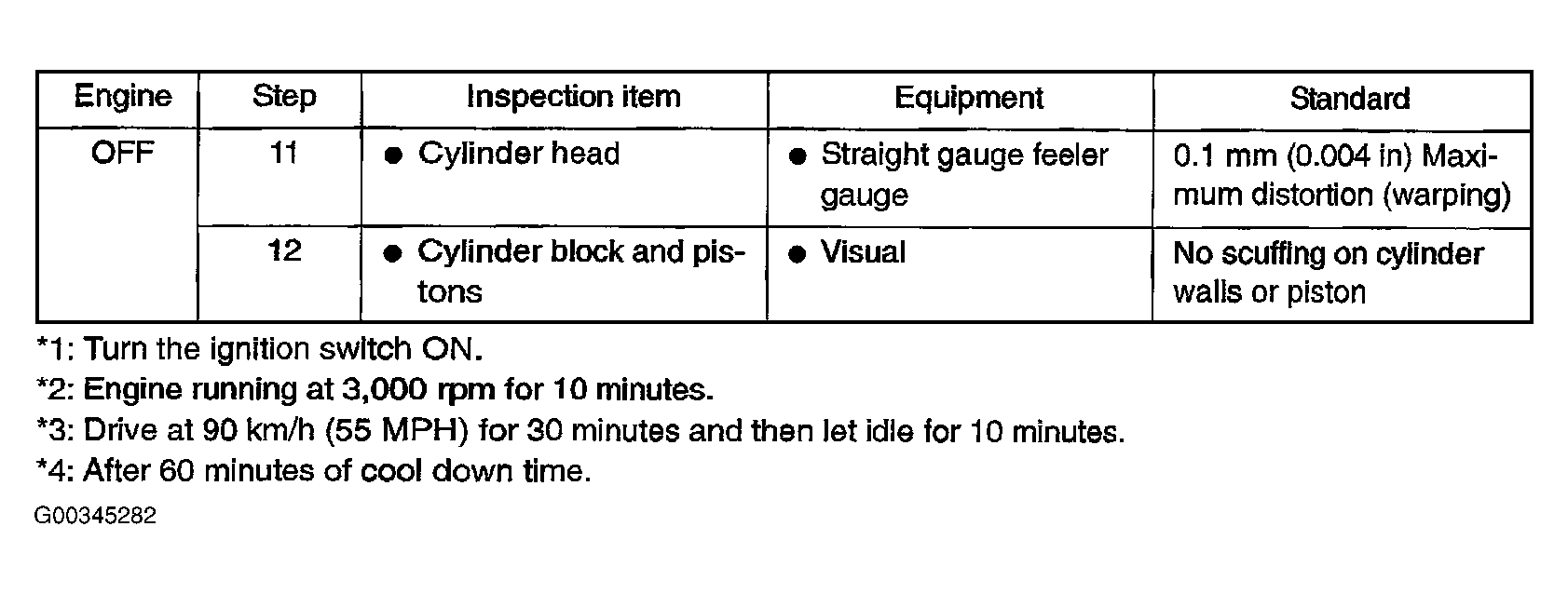

Fig 2: Identifying Conditions That Lead To Engine Overheating (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
