ASCD Steering Switch

  1. Disconnect combination switch (spiral cable).
  2. Check continuity between ASCD steering switch terminals 14 and 15 with pushing each switch.

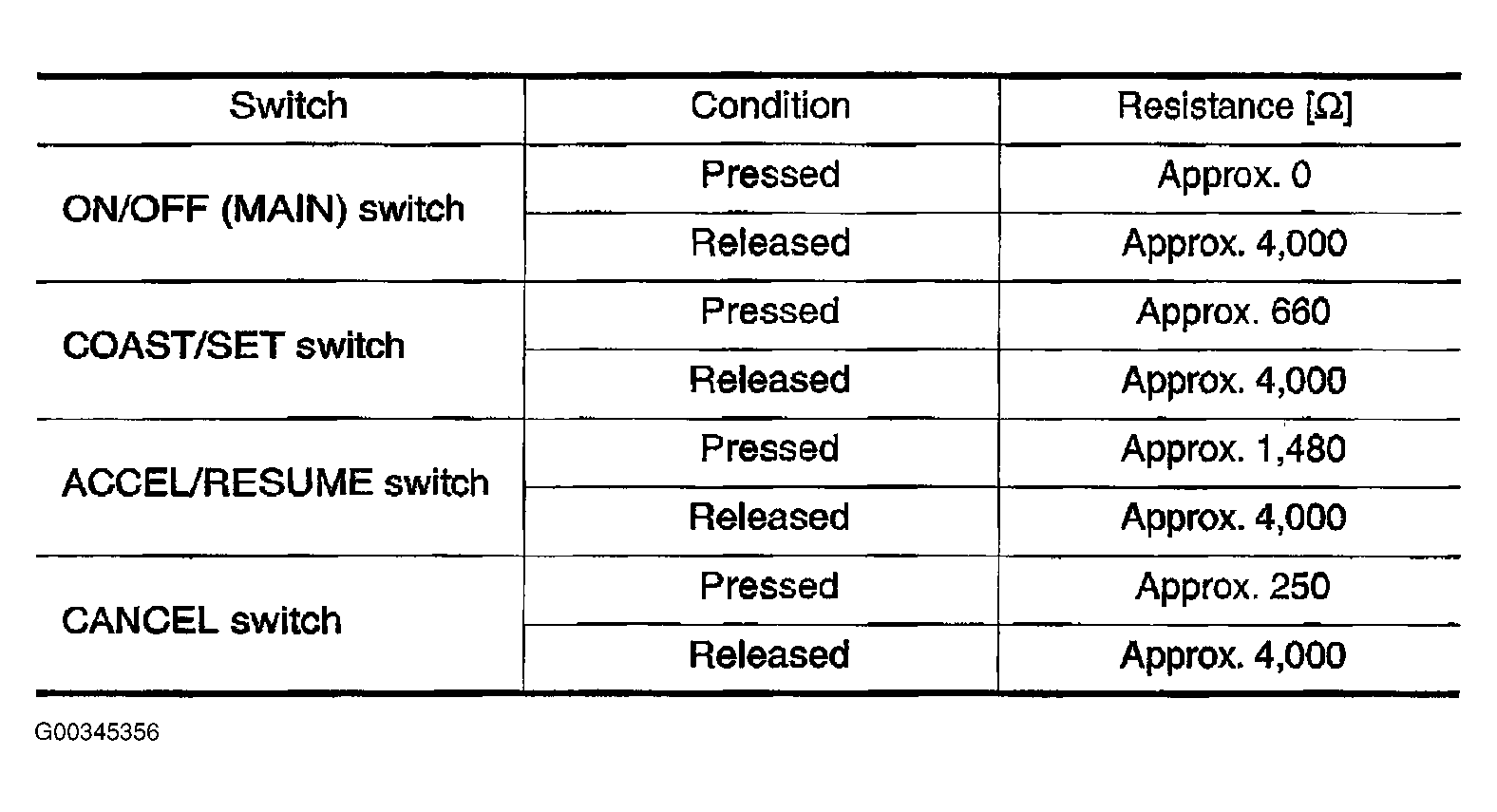

    Fig 1: ASCD Steering Switch Resistance Specifications (W/DVOM)
    G00345356Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 2: Testing ASCD Steering Switch Circuit Resistance (W/DVOM)
    G00345357Courtesy of NISSAN MOTOR CO., U.S.A.
