Air Conditioning Cut Control
›
Input/Output Signal Chart
Input/Output Signal Chart

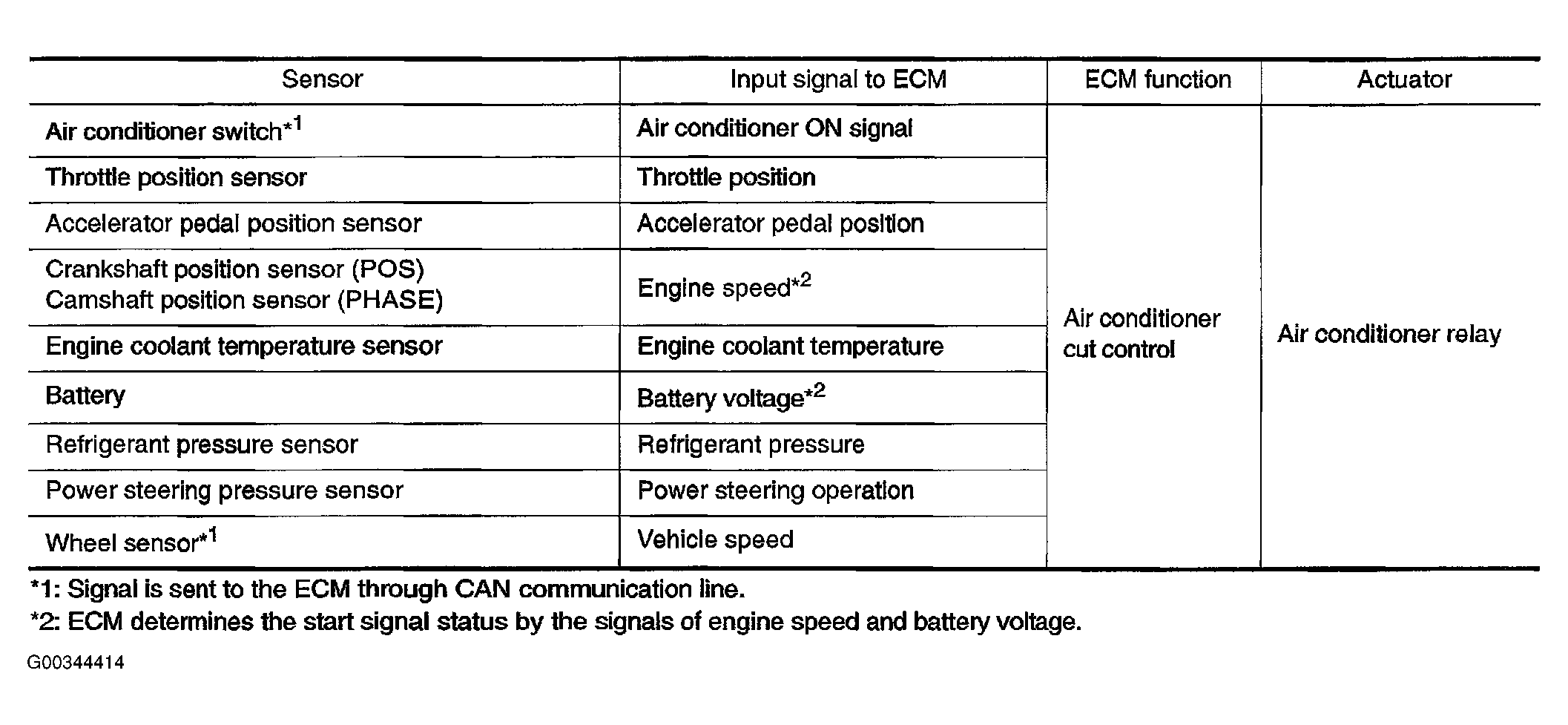

Fig 1: Identifying Sensors Providing Information To Control Air Conditioner Relay
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
