CONSULT-II Reference Value in Data Monitor

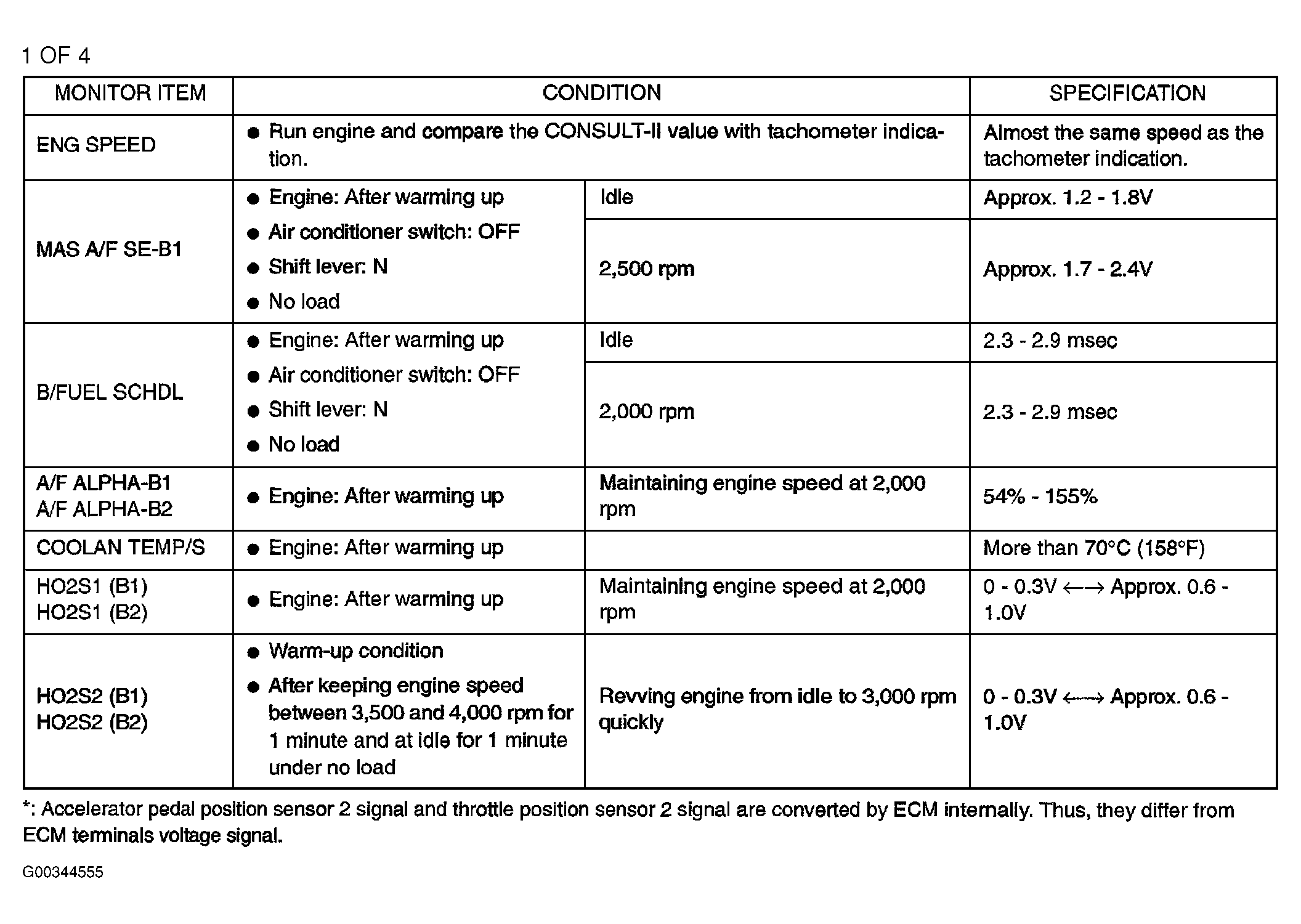

Fig 1: Identifying Monitored Items Supported By Generic Scan Tool (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

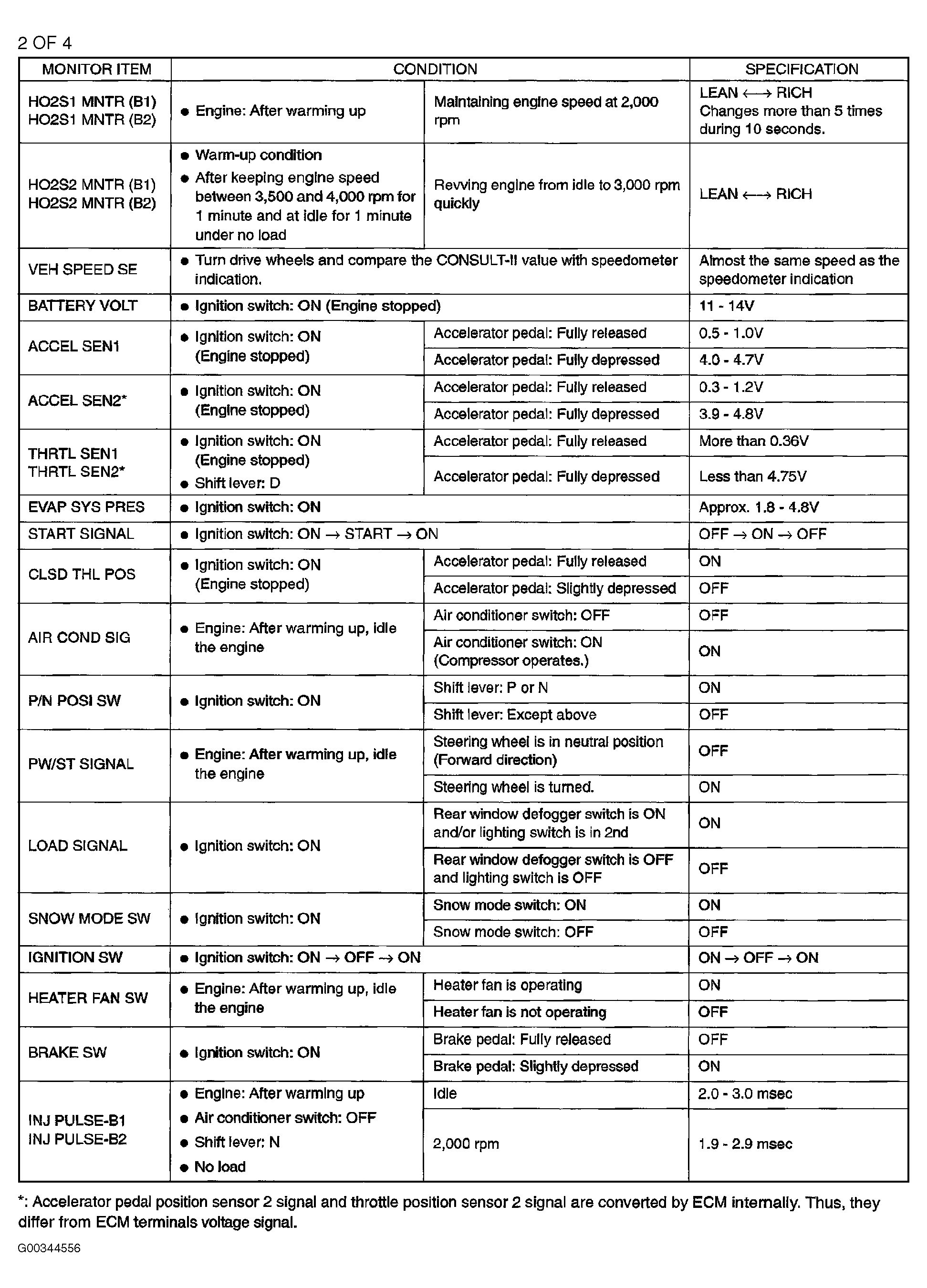

Fig 2: Identifying Monitored Items Supported By Generic Scan Tool (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

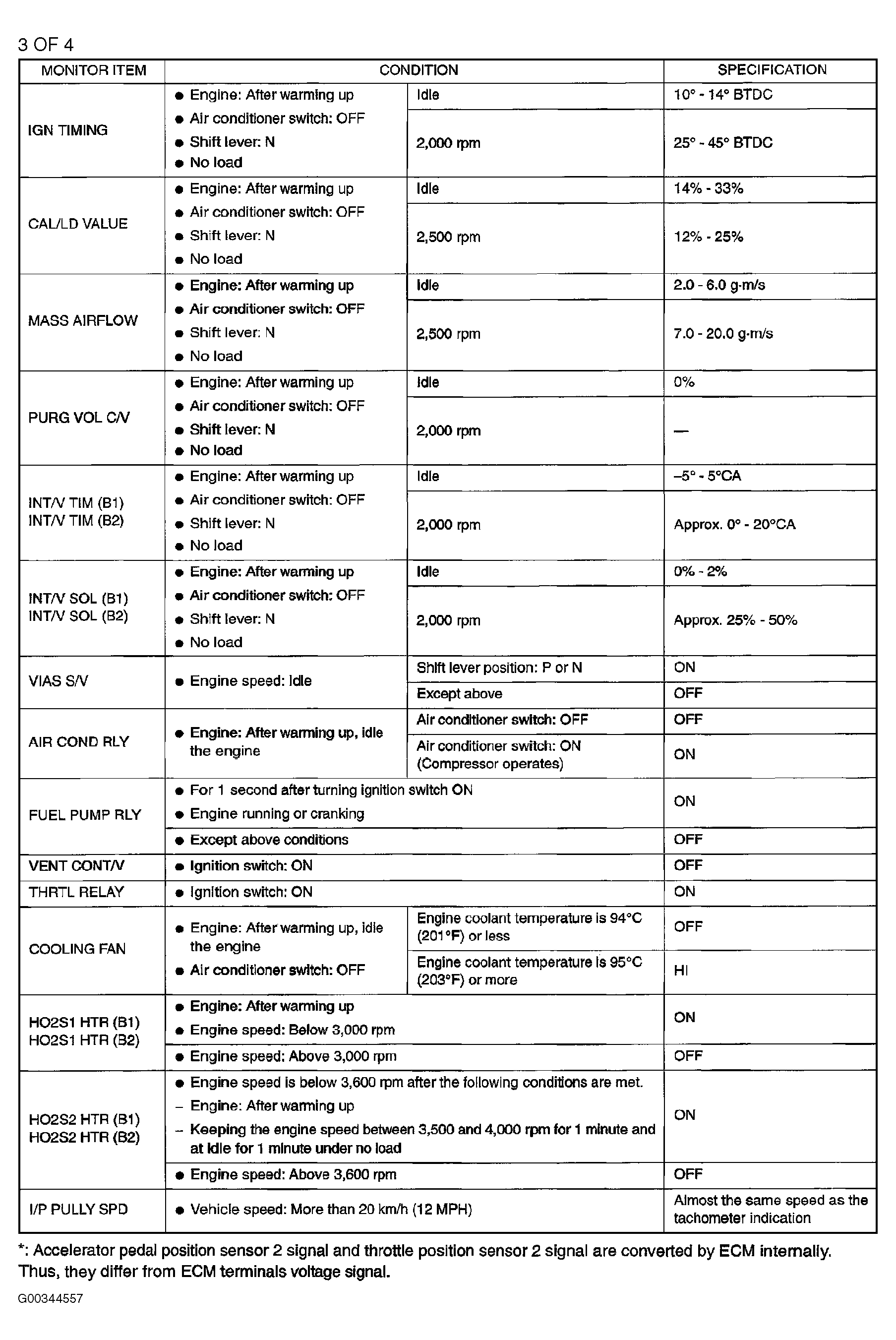

Fig 3: Identifying Monitored Items Supported By Generic Scan Tool (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

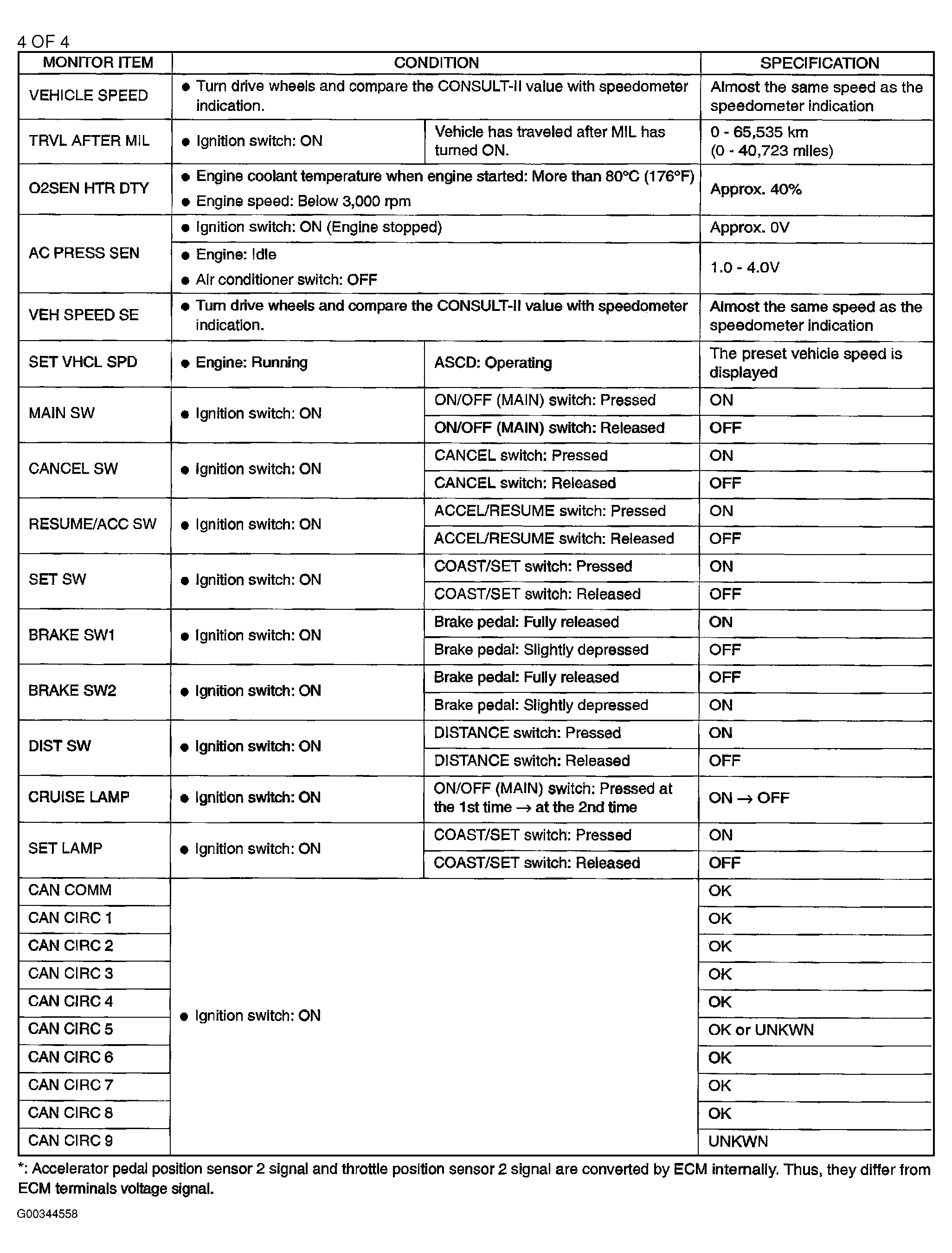

Fig 4: Identifying Monitored Items Supported By Generic Scan Tool (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
