Circuit Diagram

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

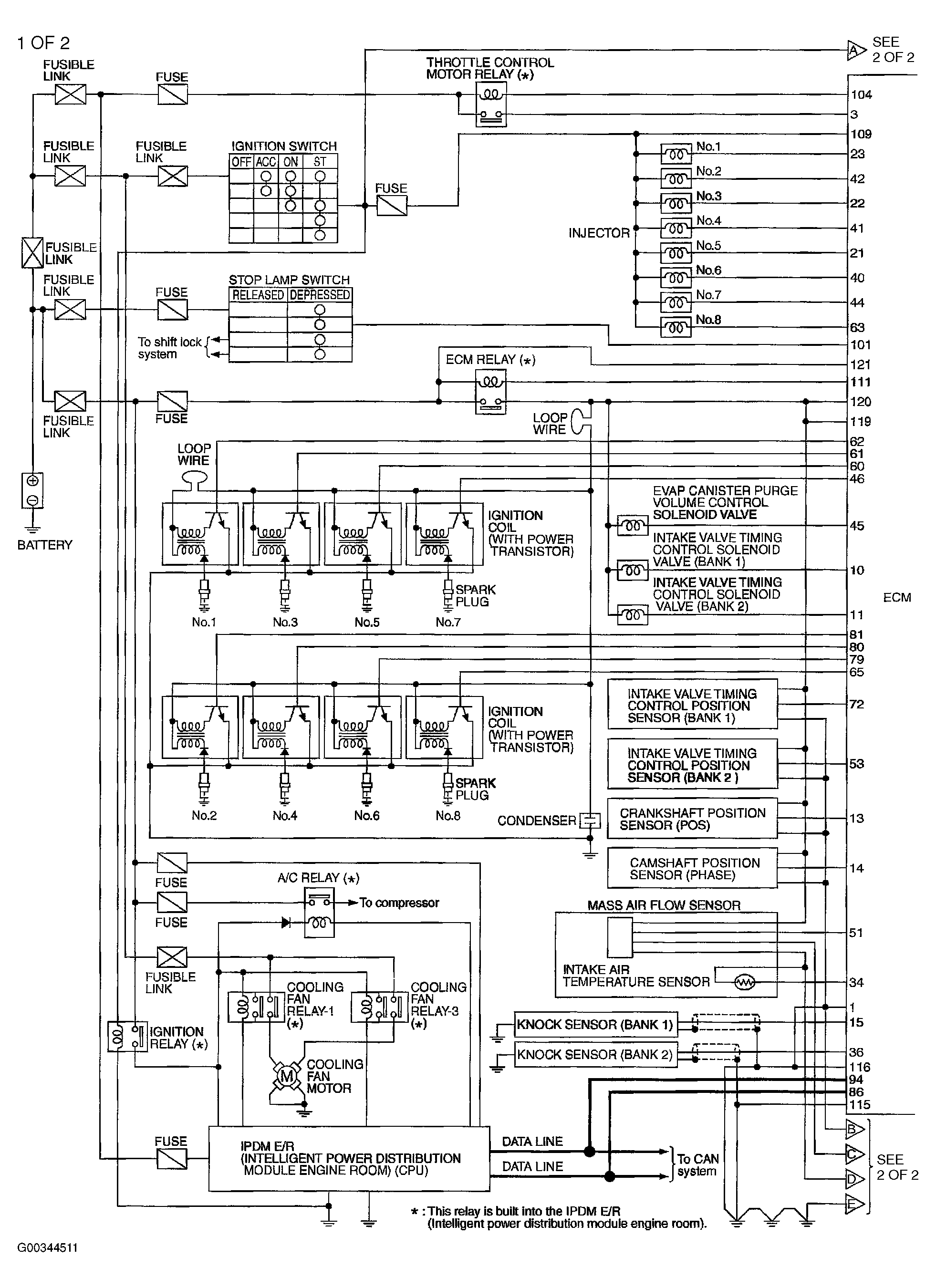

Fig 1: Engine Control Circuit (1 Of 2)
G00344511Courtesy of NISSAN MOTOR CO., U.S.A.

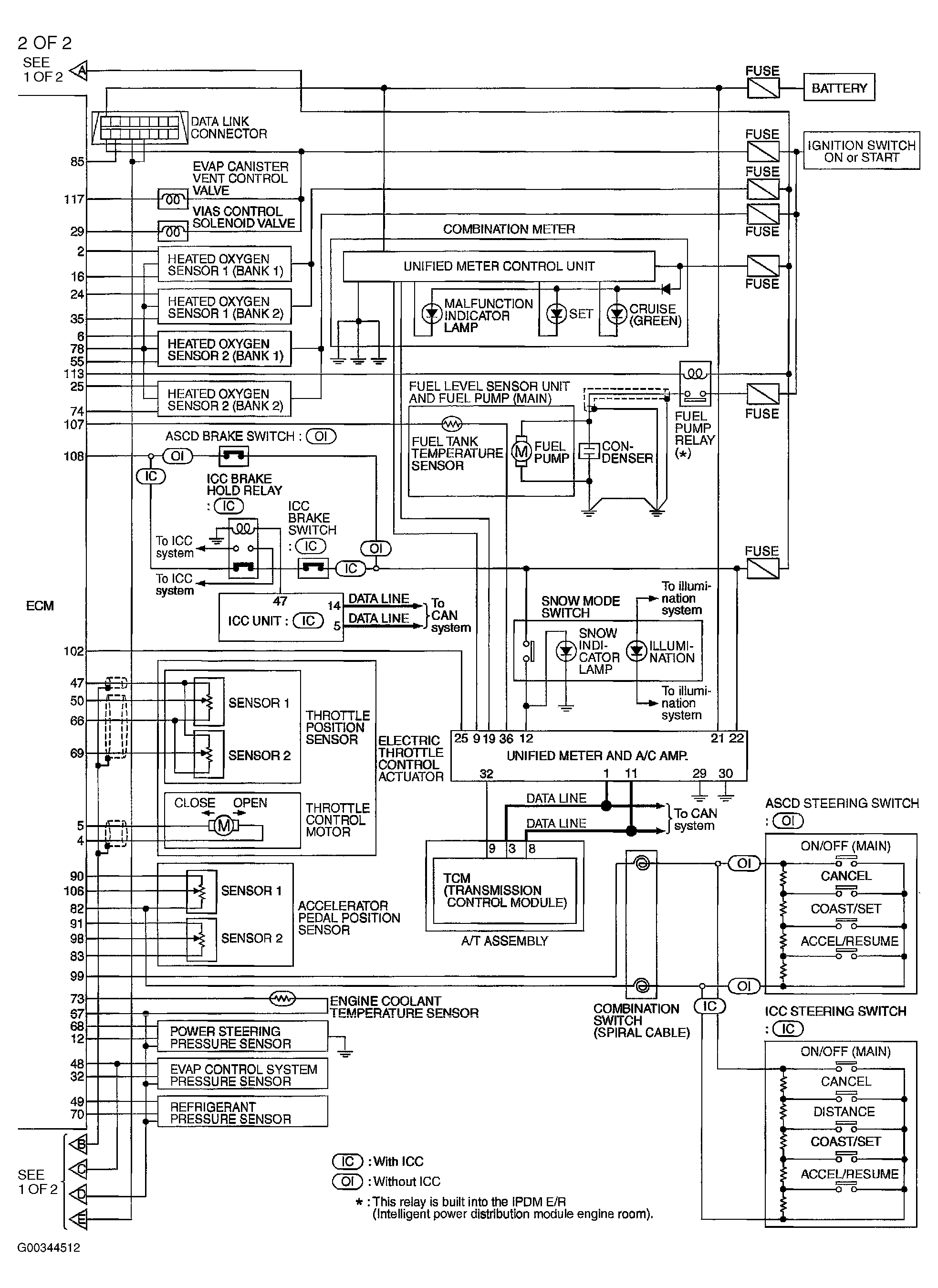

Fig 2: Engine Control Circuit (1 Of 2)
G00344512Courtesy of NISSAN MOTOR CO., U.S.A.
