System - Engine Mechanical & Other

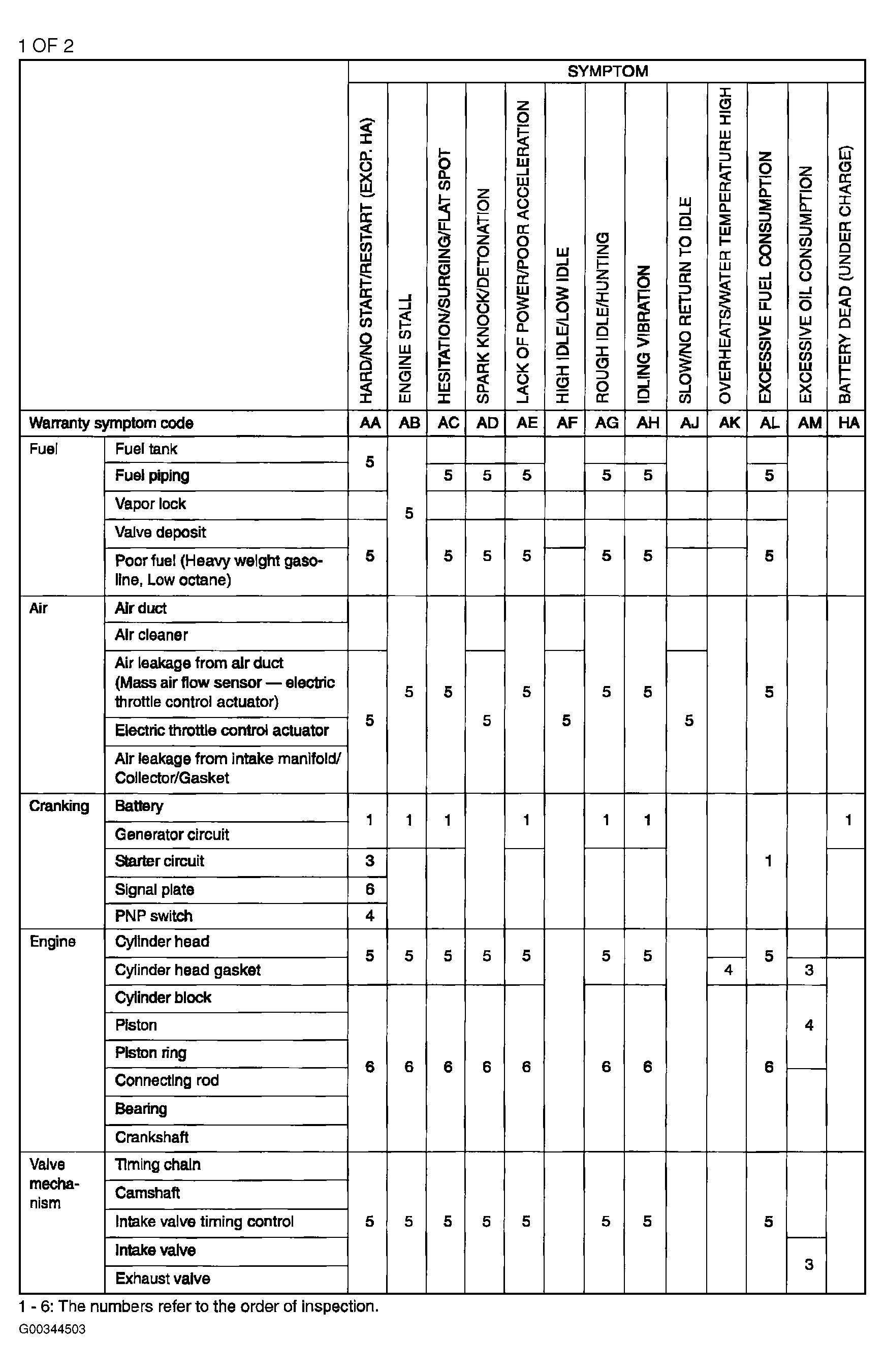

Fig 1: Isolating Engine Mechanical System Symptoms (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

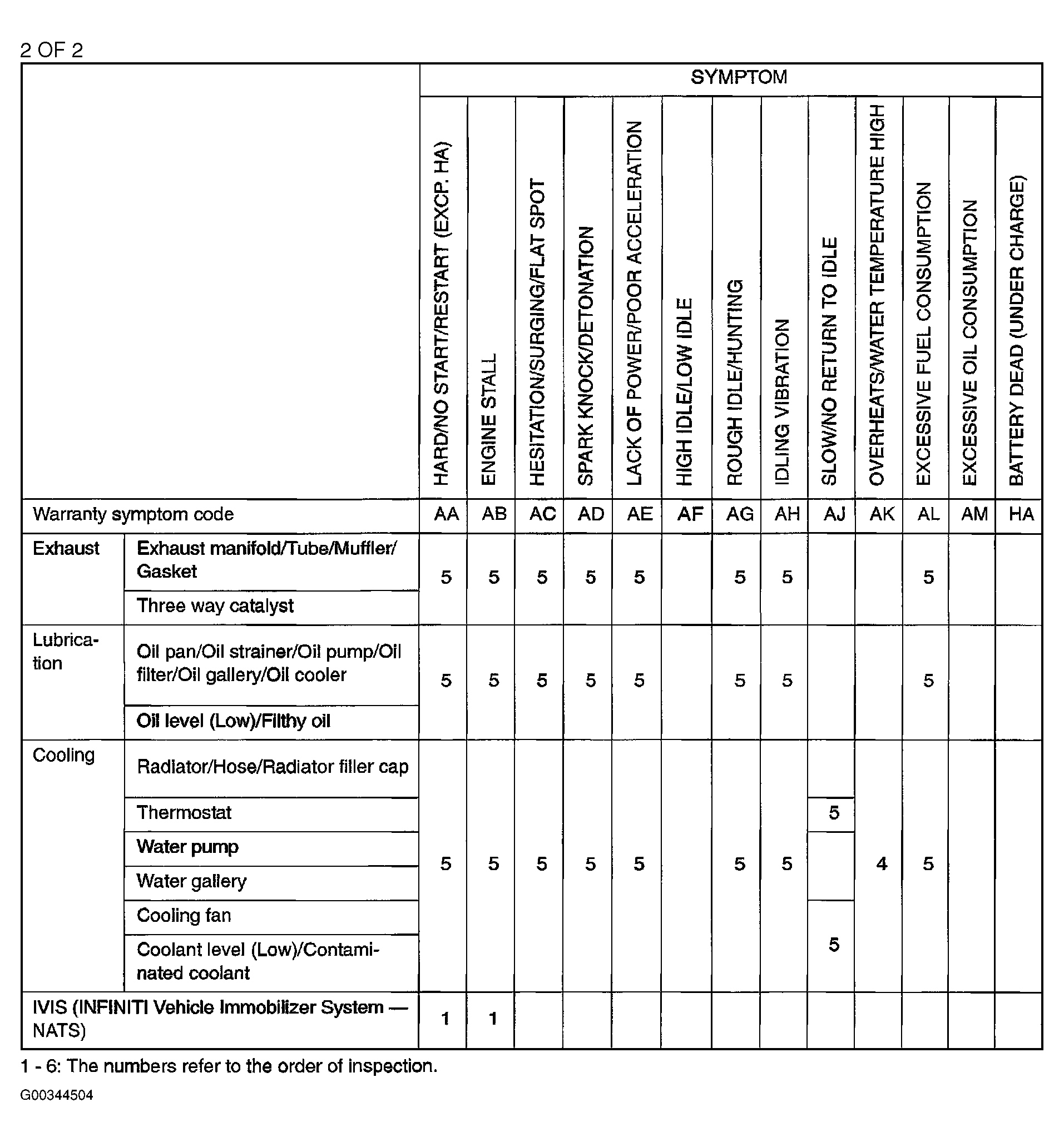

Fig 2: Isolating Engine Mechanical System Symptoms (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
