Home › Infiniti › 2004 › FX45 › Repair and Diagnosis › Engine Performance › Fuel Delivery › Fuel System › Fuel Tank › Removal And Installation › Notes

Removal And Installation: Notes

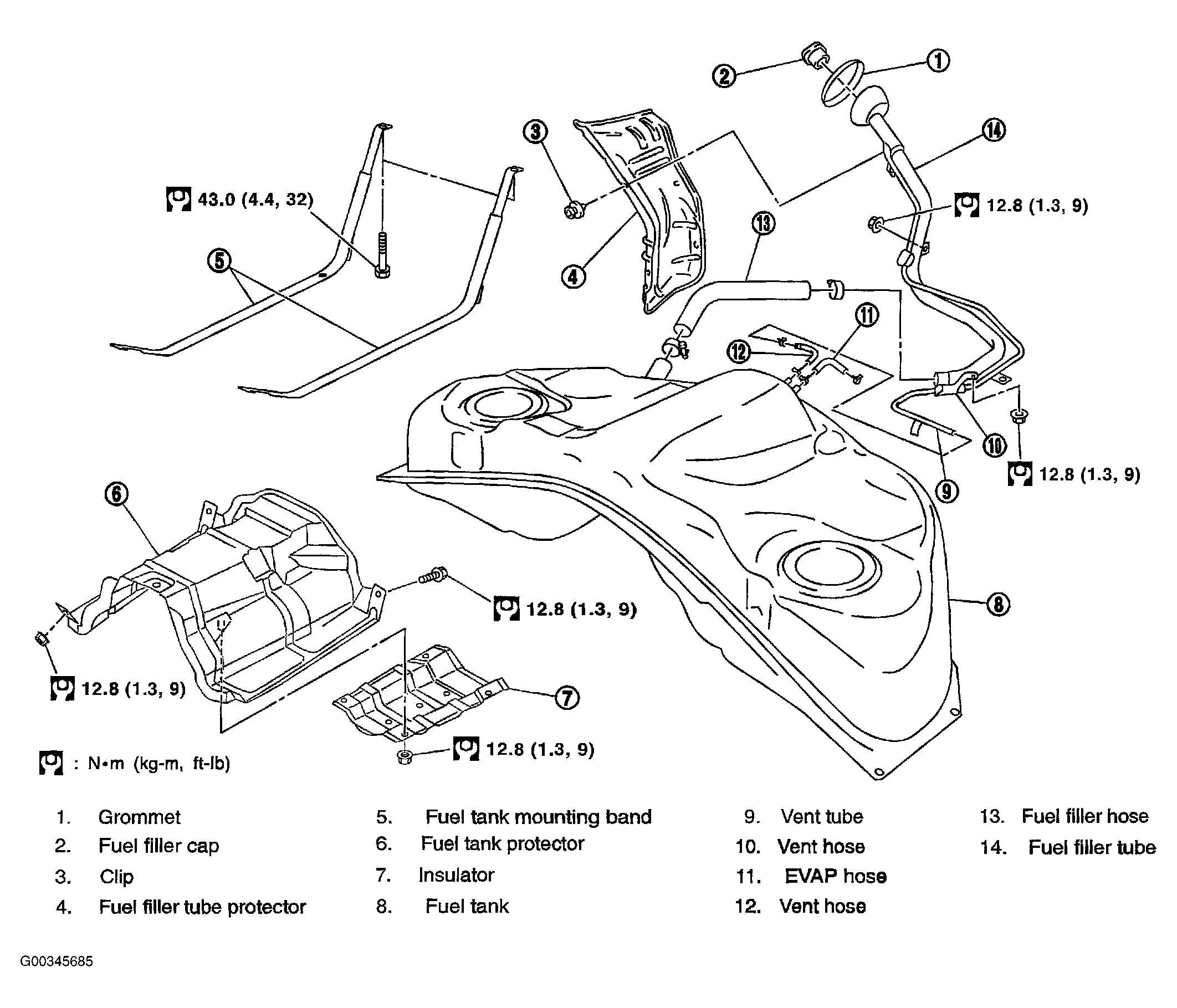

Fig 1: Displaying Fuel Tank Components
G00345685Courtesy of NISSAN MOTOR CO., U.S.A.
