Idle Speed/Ignition Timing/Idle Mixture Ratio Adjustment
›
Overall Inspection Sequence
Overall Inspection Sequence

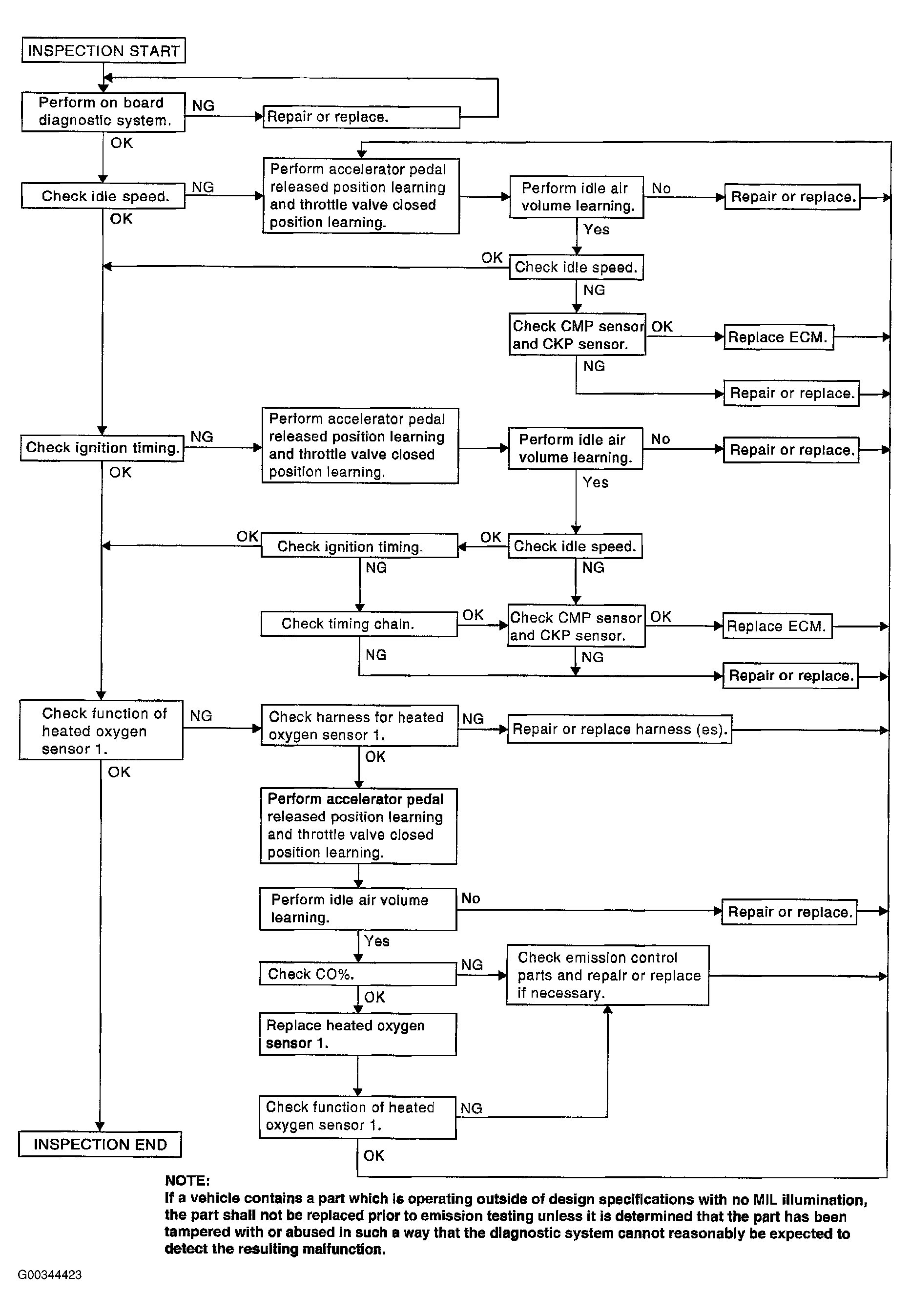

Fig 1: Identifying Overall Inspection Sequence For Basic Service Procedure
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
