Hydraulic Line: Component

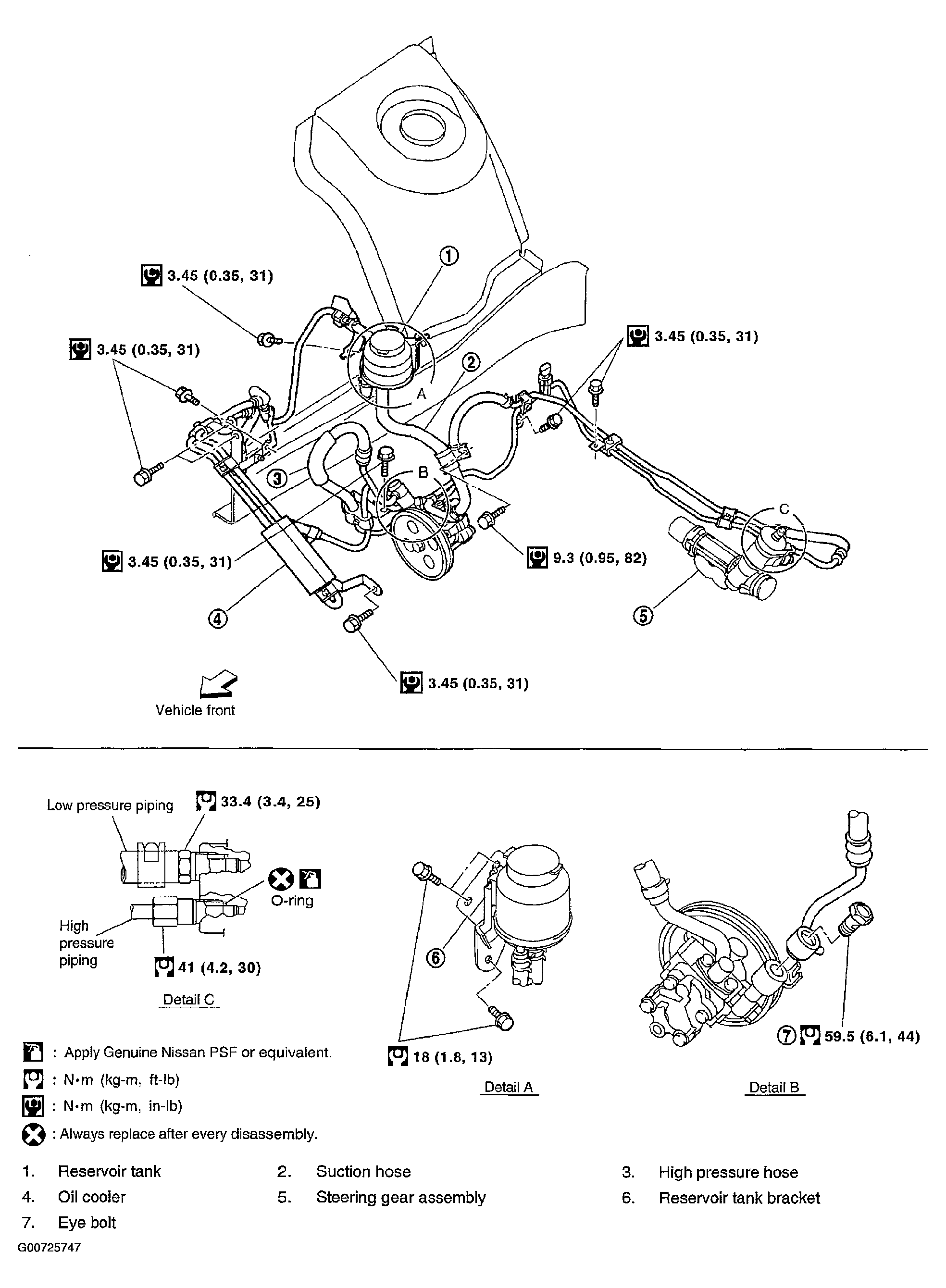

Fig 1: Identifying VK45DE AWD Model Components

G00725747

Courtesy of NISSAN MOTOR CO., U.S.A.
