Disassembly And Assembly (VK45DE Models): Notes

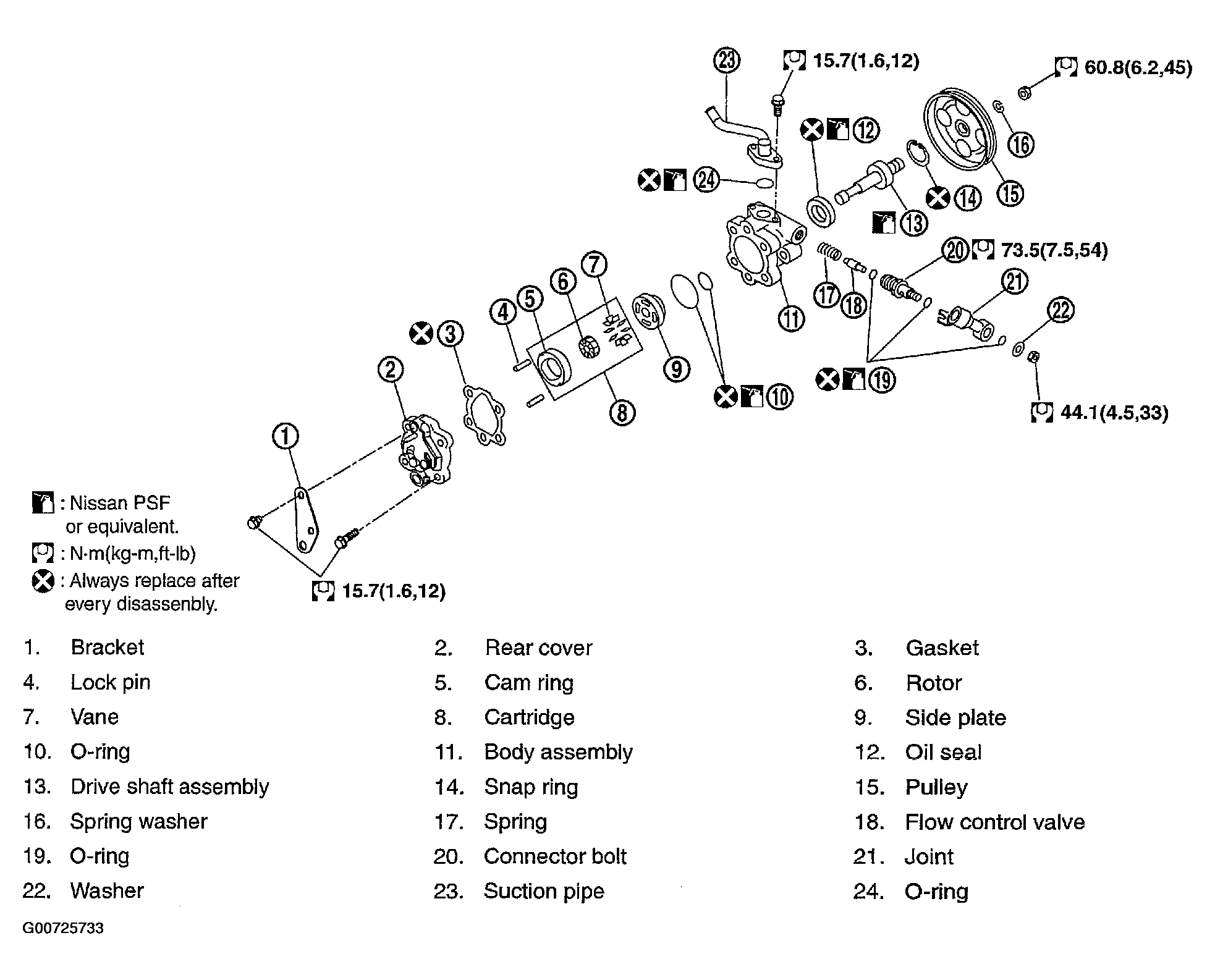

Fig 1: Displaying Oil Pump Components (VK45DE Models)
G00725733Courtesy of NISSAN MOTOR CO., U.S.A.
