Special Service Tools (SST)

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

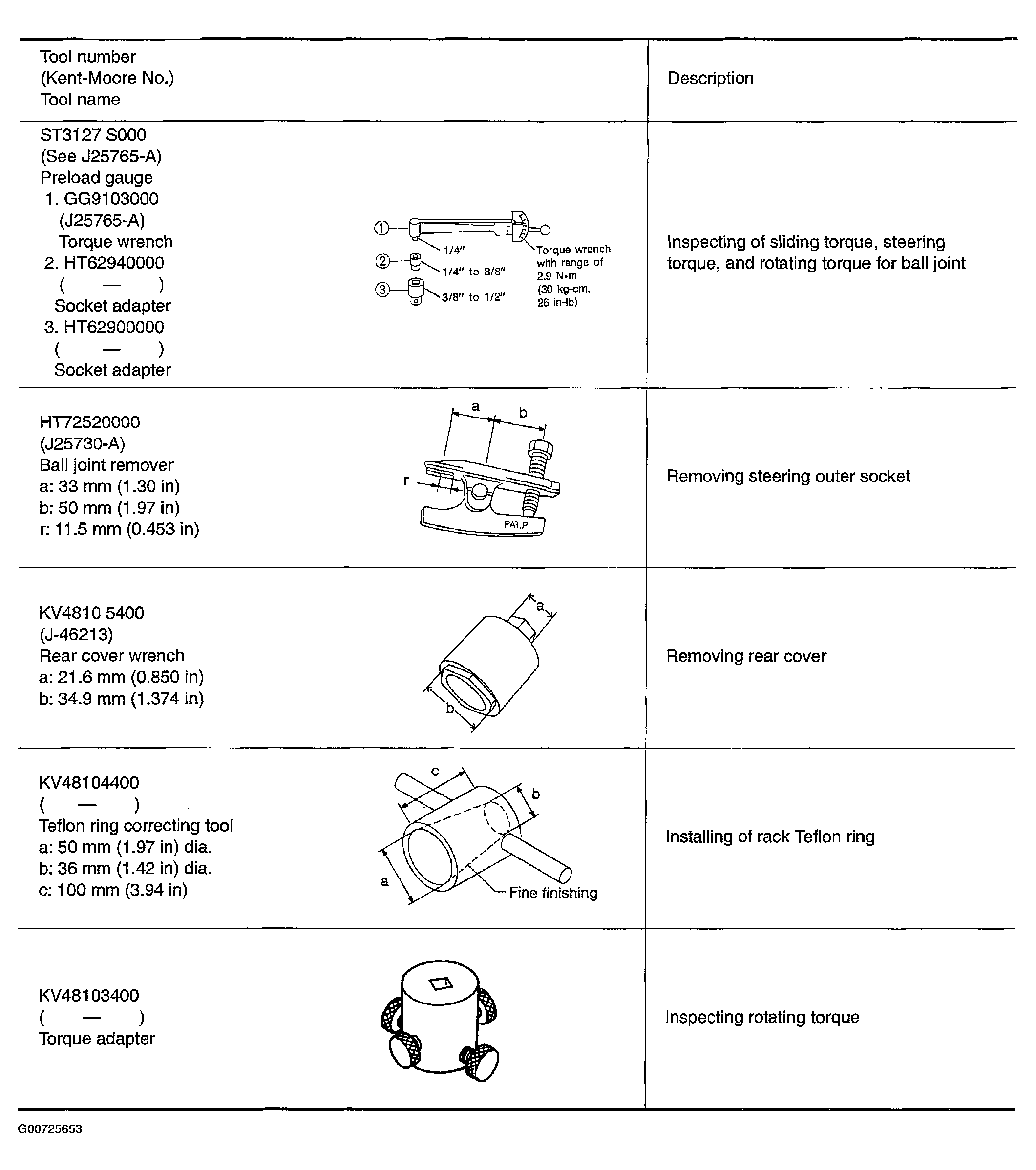

Fig 1: Displaying Special Service Tools (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

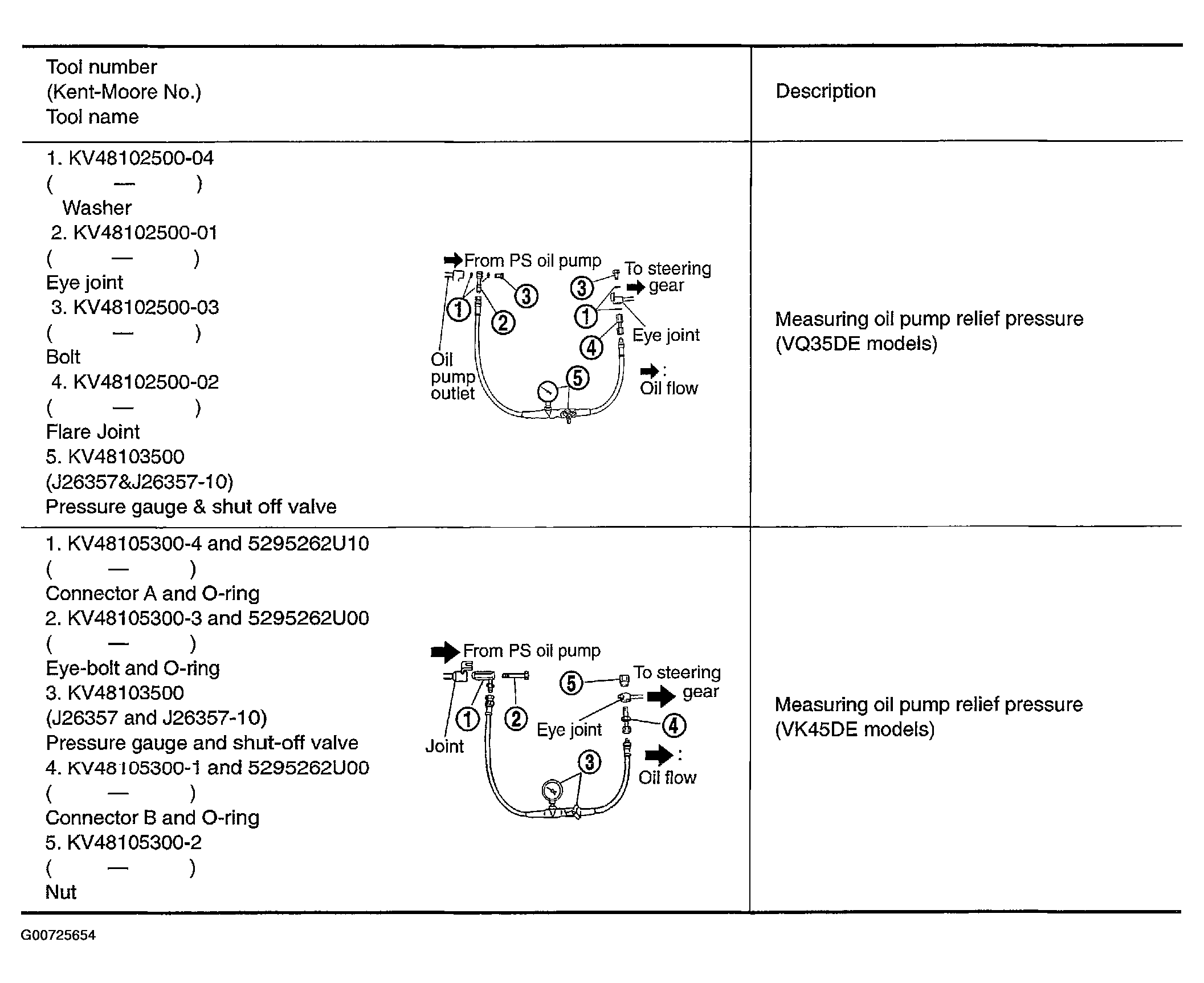

Fig 2: Displaying Special Service Tools (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
