Function Of ATF Pressure Switch

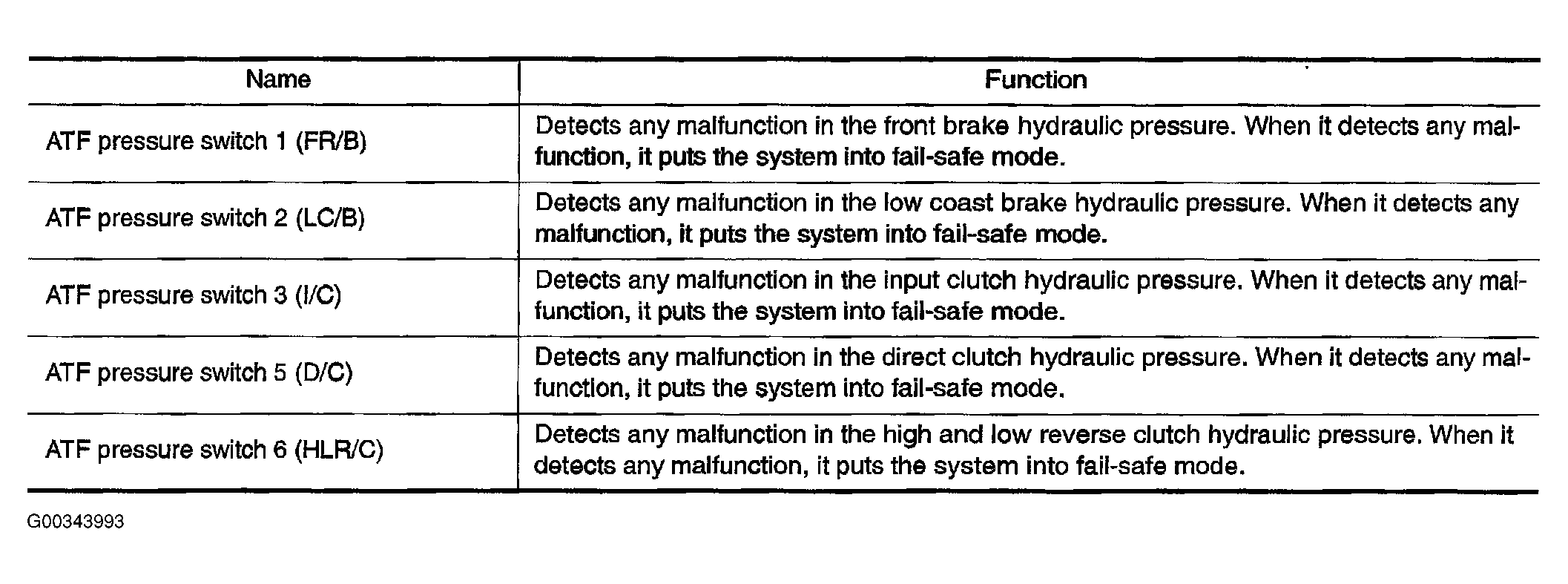

Fig 1: Identifying ATF Pressure Switch Functions
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
