Shift Change

The clutch is controlled with the optimum timing and oil pressure by the engine speed, engine torque information, etc.

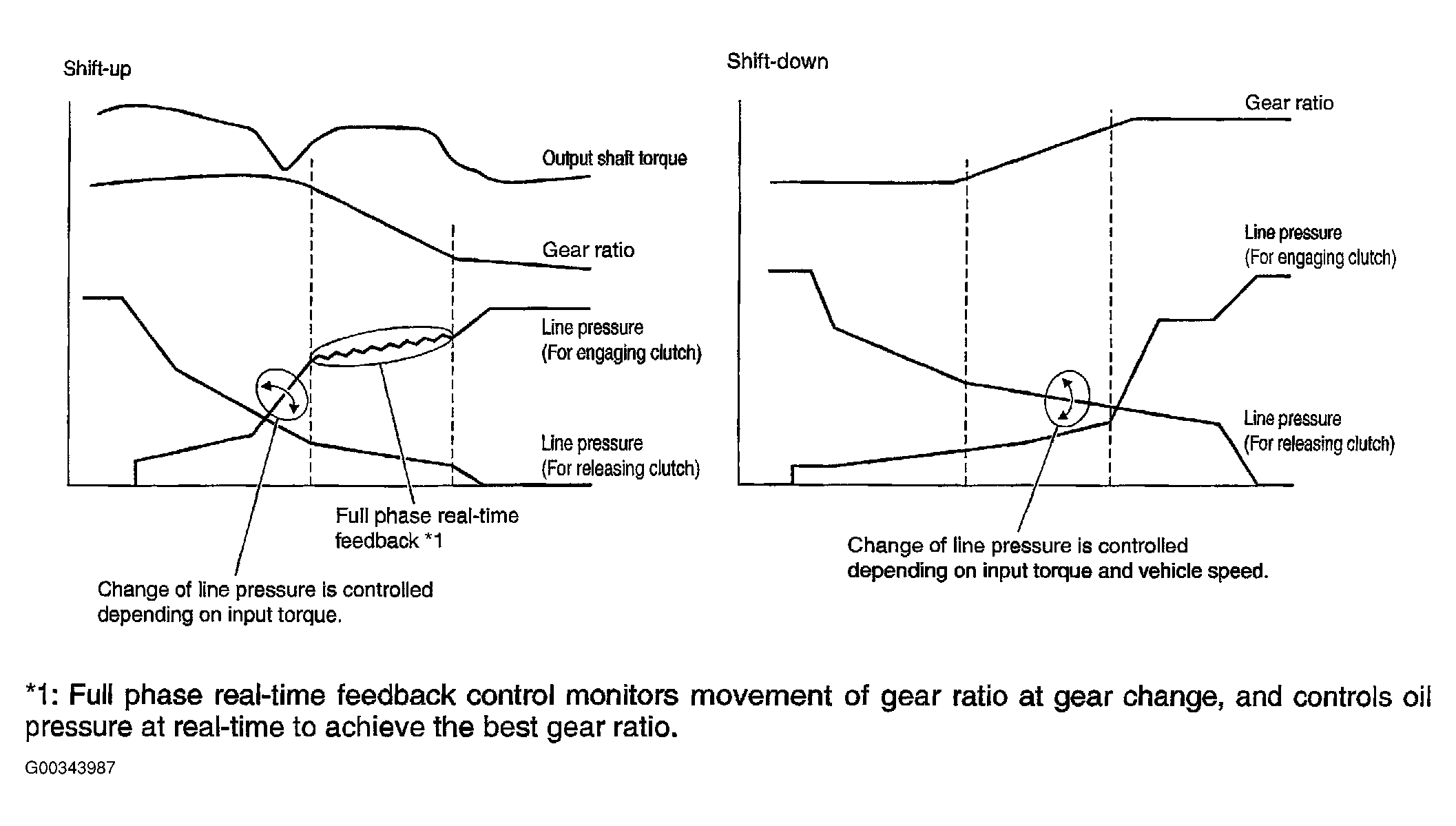

Fig 1: Shift Change System Diagram
G00343987Courtesy of NISSAN MOTOR CO., U.S.A.
