DTC P1815: Manual Mode Switch
›
Component Inspection
›
Manual Mode Switch
Manual Mode Switch
Check continuity between terminals.

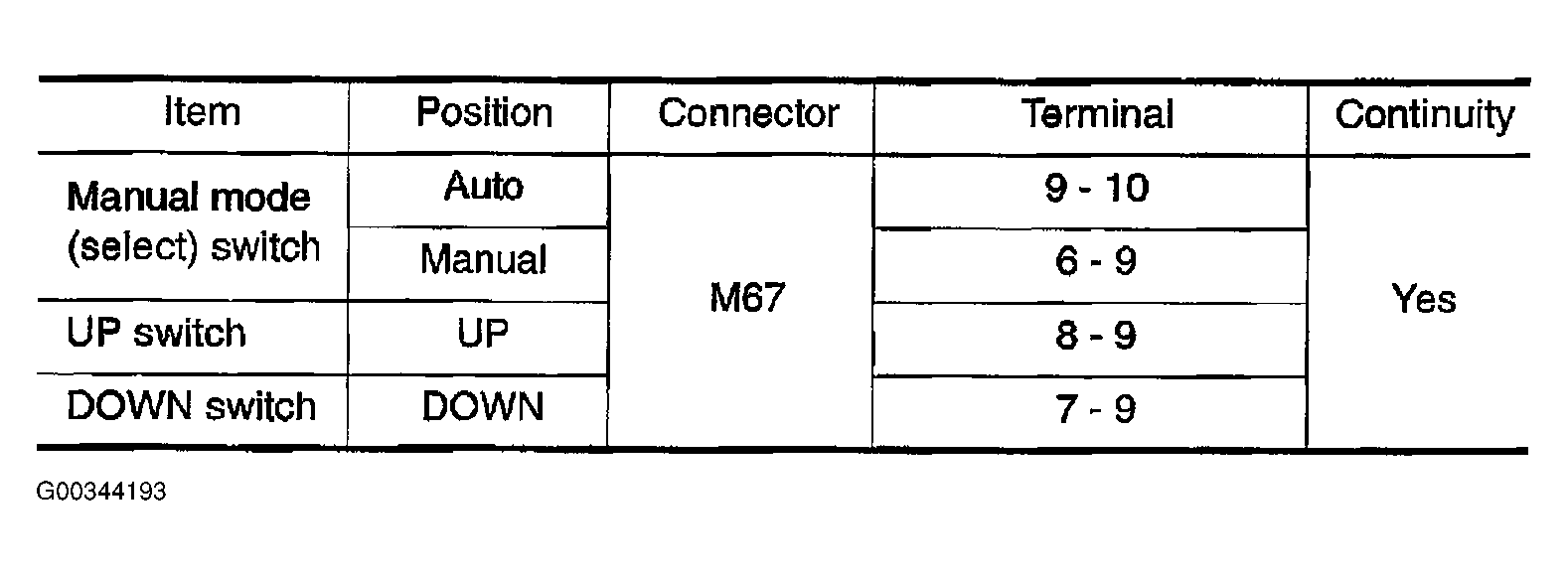

Fig 1: Continuity Test Terminals For Manual Mode Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Manual Mode Switch Connector Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
