DTC No. Index

NOTE: If DTC U1000 is displayed with other DTCs, first perform the trouble diagnosis for DTC U1000. Refer to DTC U1000: CAN COMMUNICATION LINE .

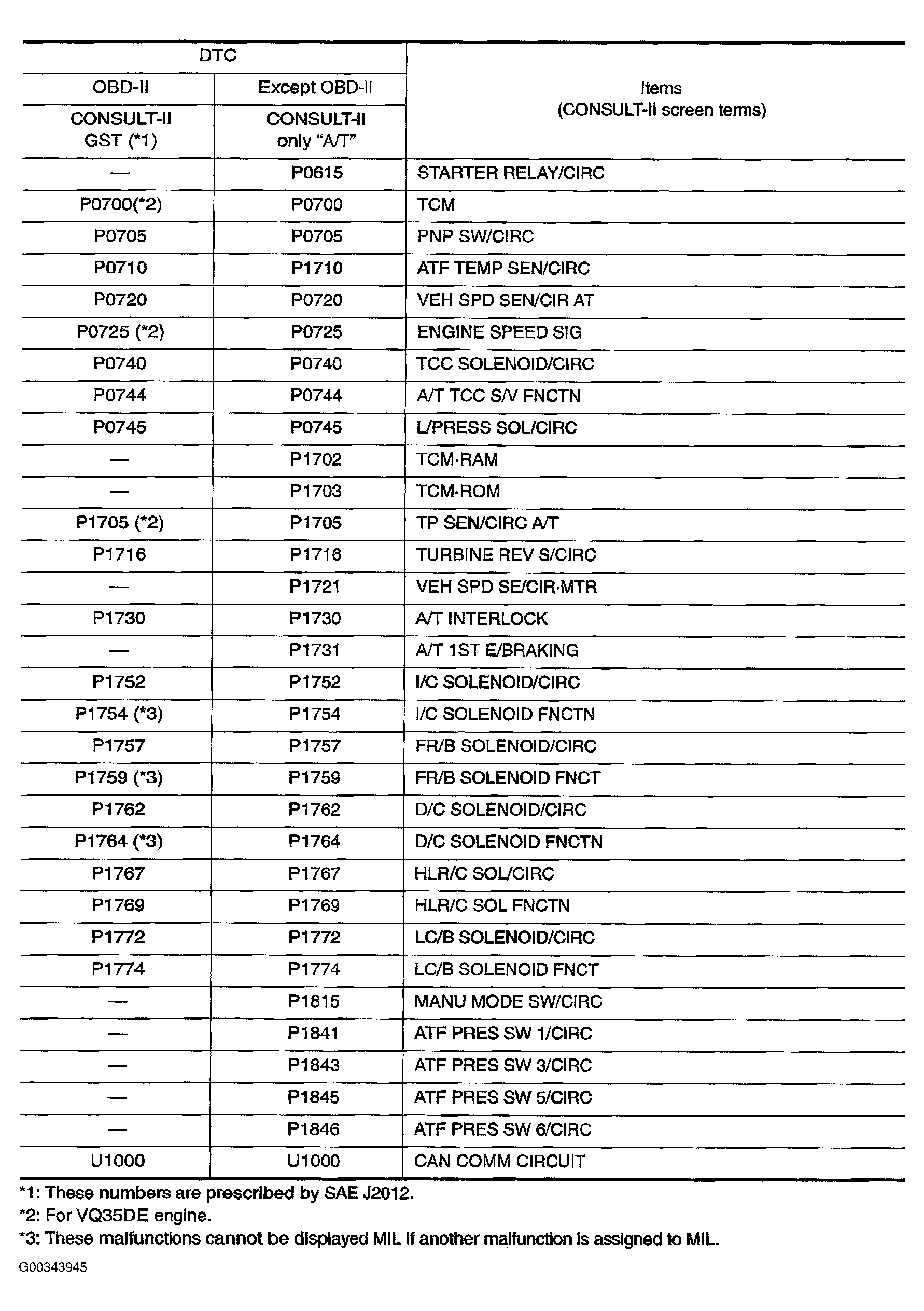

Fig 1: Index Of Automatic Transmission-Related DTCs

Courtesy of NISSAN MOTOR CO., U.S.A.
