Removal And Installation (2WD Models): Installation

Install the removed parts in the reverse order of the removal, while paying attention to the following work.

When installing transmission assembly to the engine, attach the fixing bolts in accordance with the following standard.

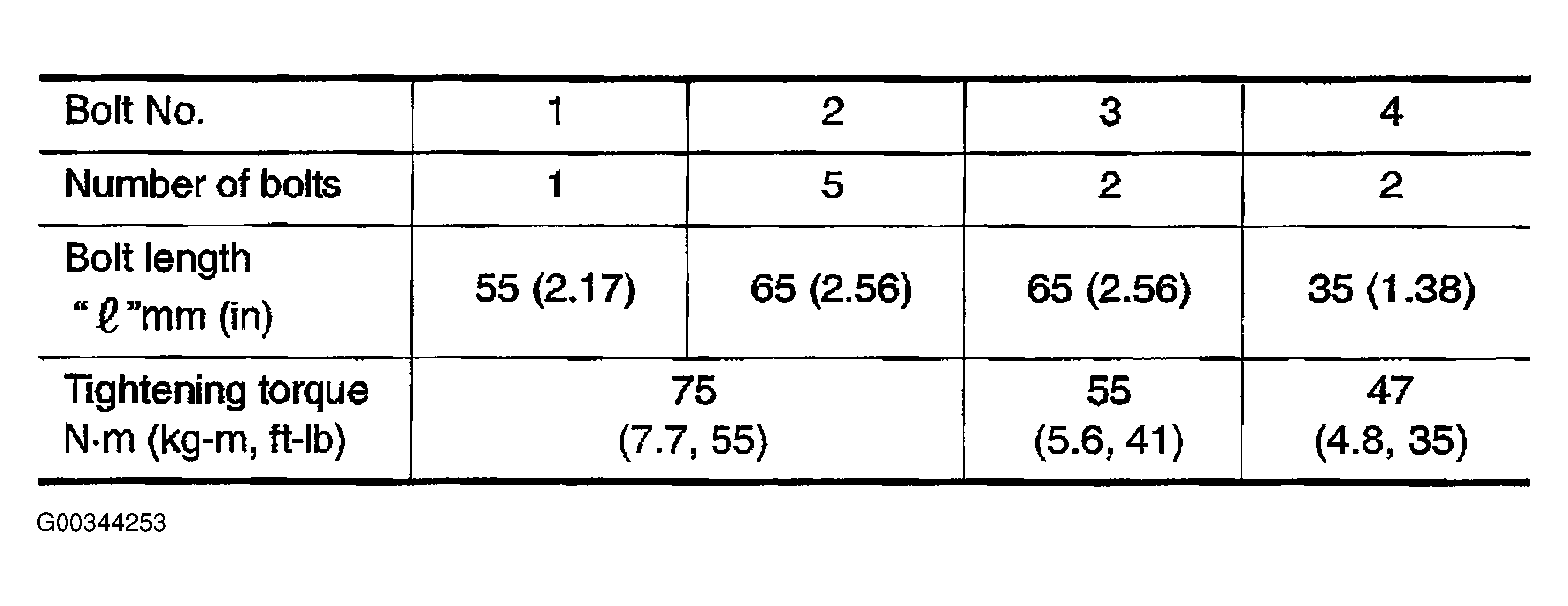

Fig 1: Identifying Number Of Different-Length Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Locations Of Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Align the positions of tightening bolts for drive plate with those of the torque converter, and temporarily tighten the bolts. Then, tighten the bolts with the specified torque.

Fig 3: Locating Drain Plug
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

When turning crankshaft, turn it clockwise as viewed from the front of the engine.
When tightening the bolts for the torque converter after fixing the crankshaft pulley bolts, be sure to confirm the tightening torque of the crankshaft pulley mounting bolts.
After converter is installed to drive plate, rotate crankshaft several turns and check to be sure that transmission rotates freely without binding.

Install crankshaft position sensor (POS). Refer to REMOVAL AND INSTALLATION .
After completing installation, check fluid leakage, fluid level, and the A/T positions of A/T. Refer to DRAINING & REFILLING , ADJUSTMENT OF A/T POSITION and CHECKING OF A/T POSITION .
