Disassembly And Assembly: Components

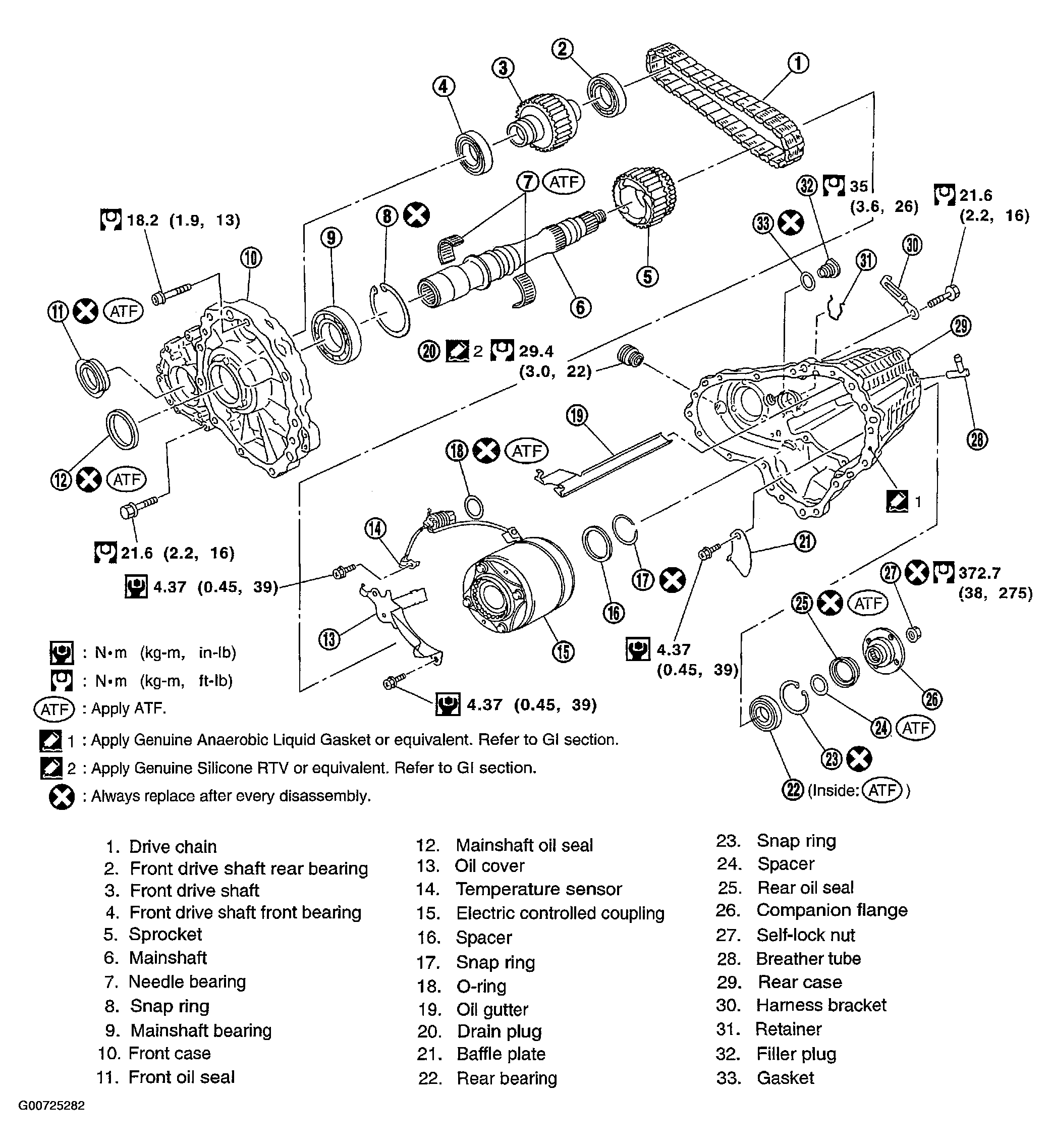

Fig 1: Displaying Transfer Assembly Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
