Specifications With CONSULT-II

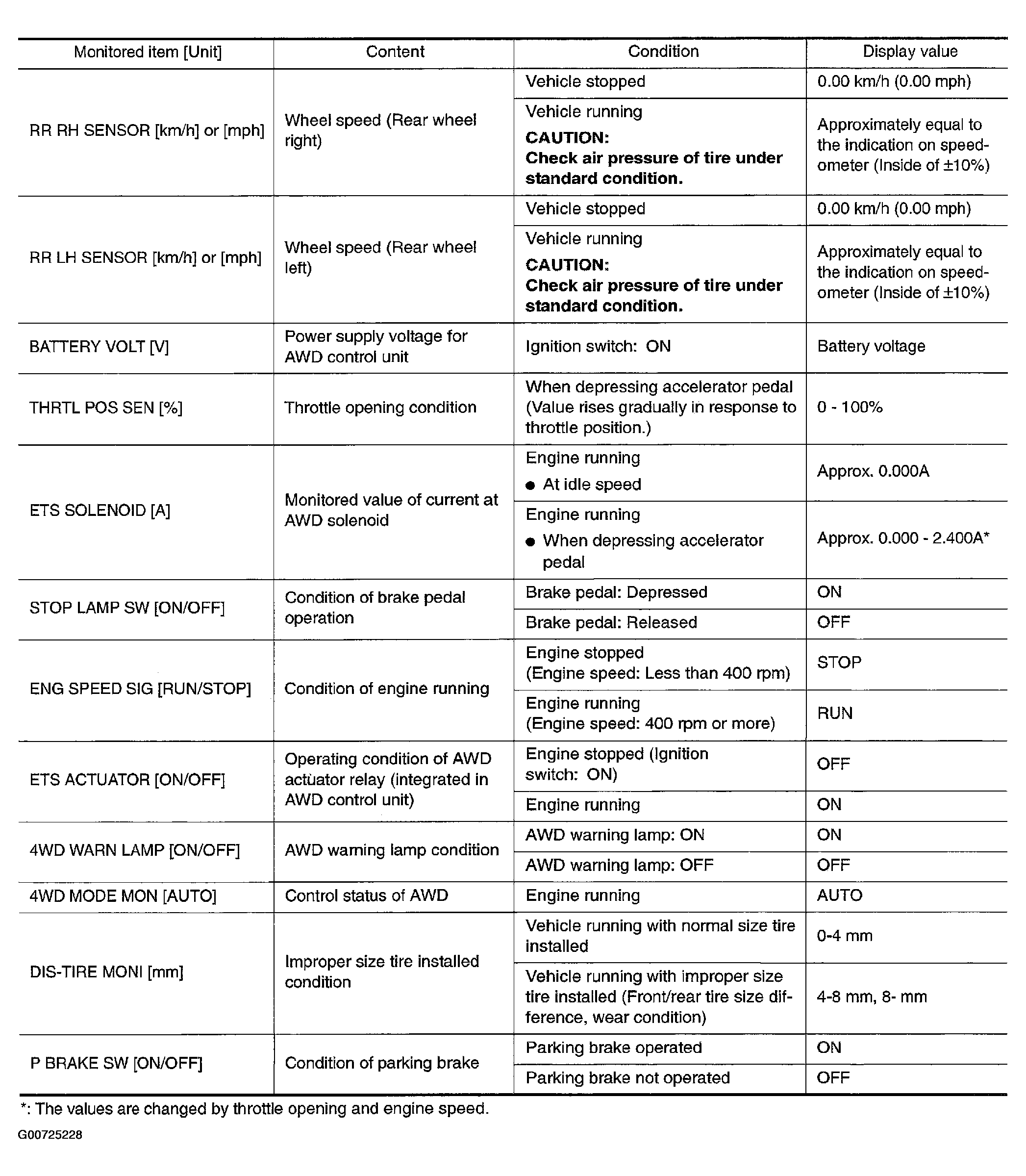

Fig 1: Displaying AWD Control Unit Inspection Table (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

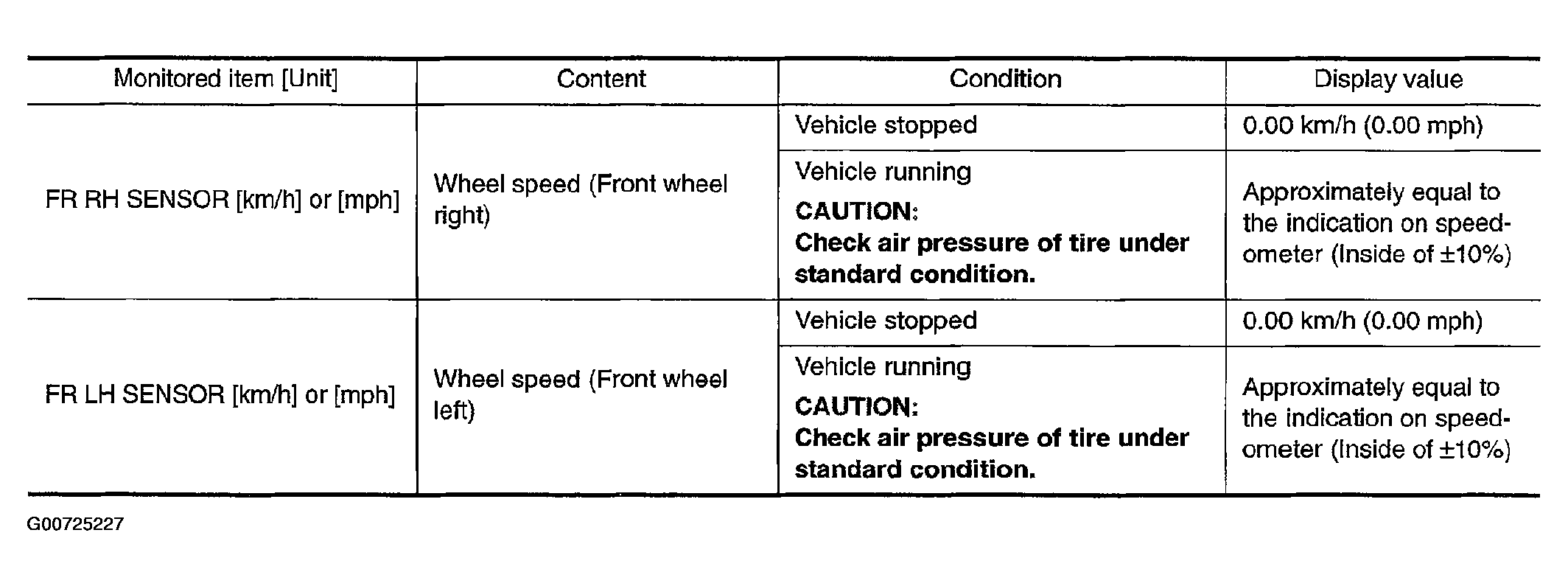

Fig 2: Displaying AWD Control Unit Inspection Table (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
