2004 - Engine Control System - Sedan
›
ASCD Indicator
›
Wiring Diagram
ASCD Indicator: Wiring Diagram

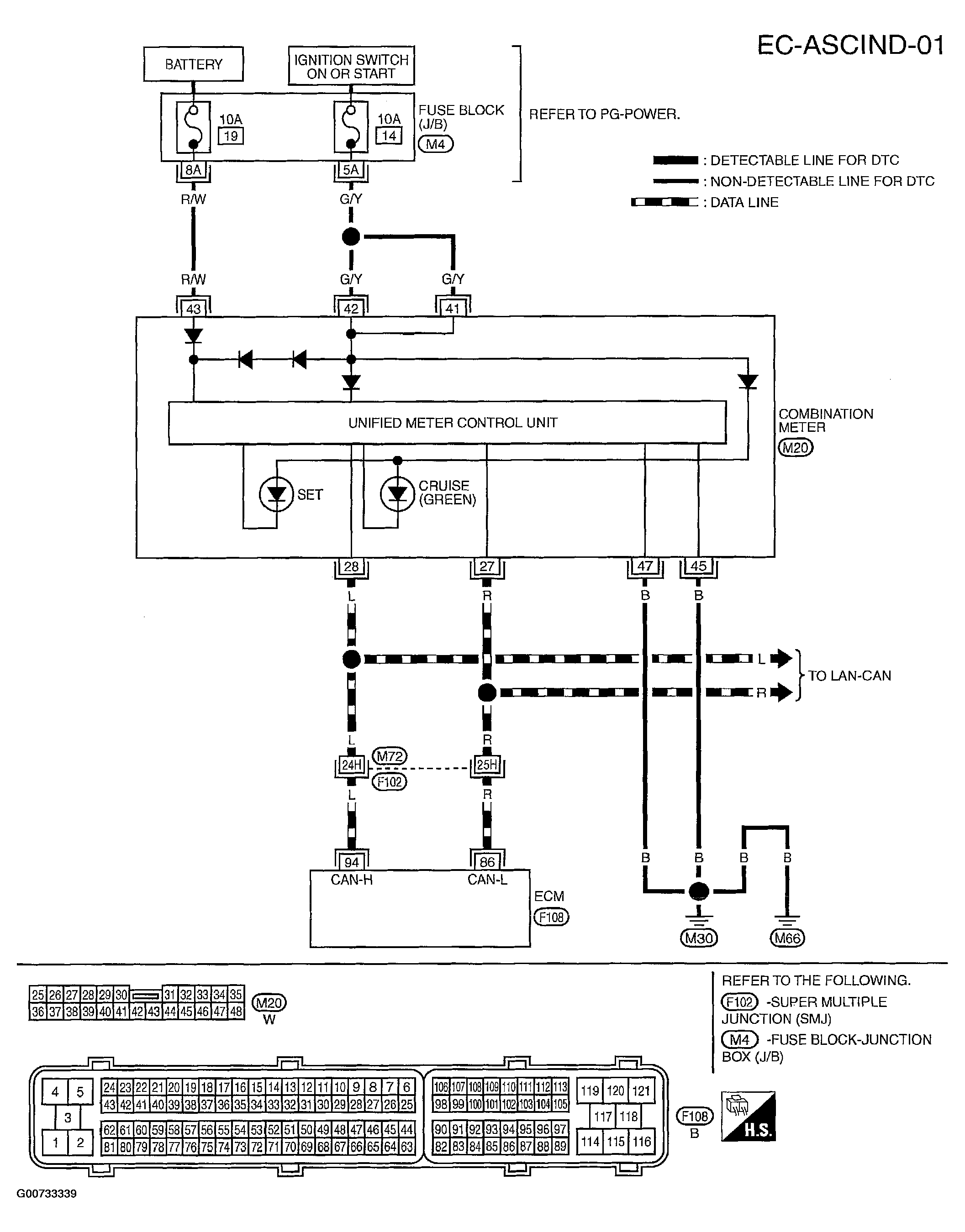

Fig 1: Wiring Diagram (EC-ASCIND-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
