Method A

  1. Attach timing light to loop wire as shown.
  2. Check ignition timing.

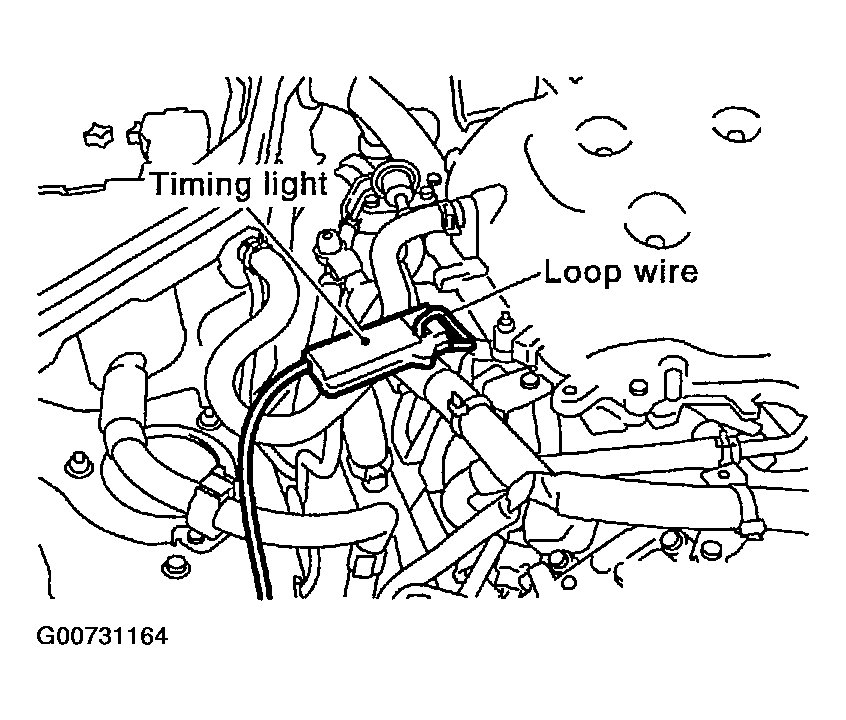

Fig 1: Locating Timing Light And Loop Wire
G00731164Courtesy of NISSAN MOTOR CO., U.S.A.
