2004 - Engine Control System - Sedan
›
Engine Control System
›
System Chart
System Chart

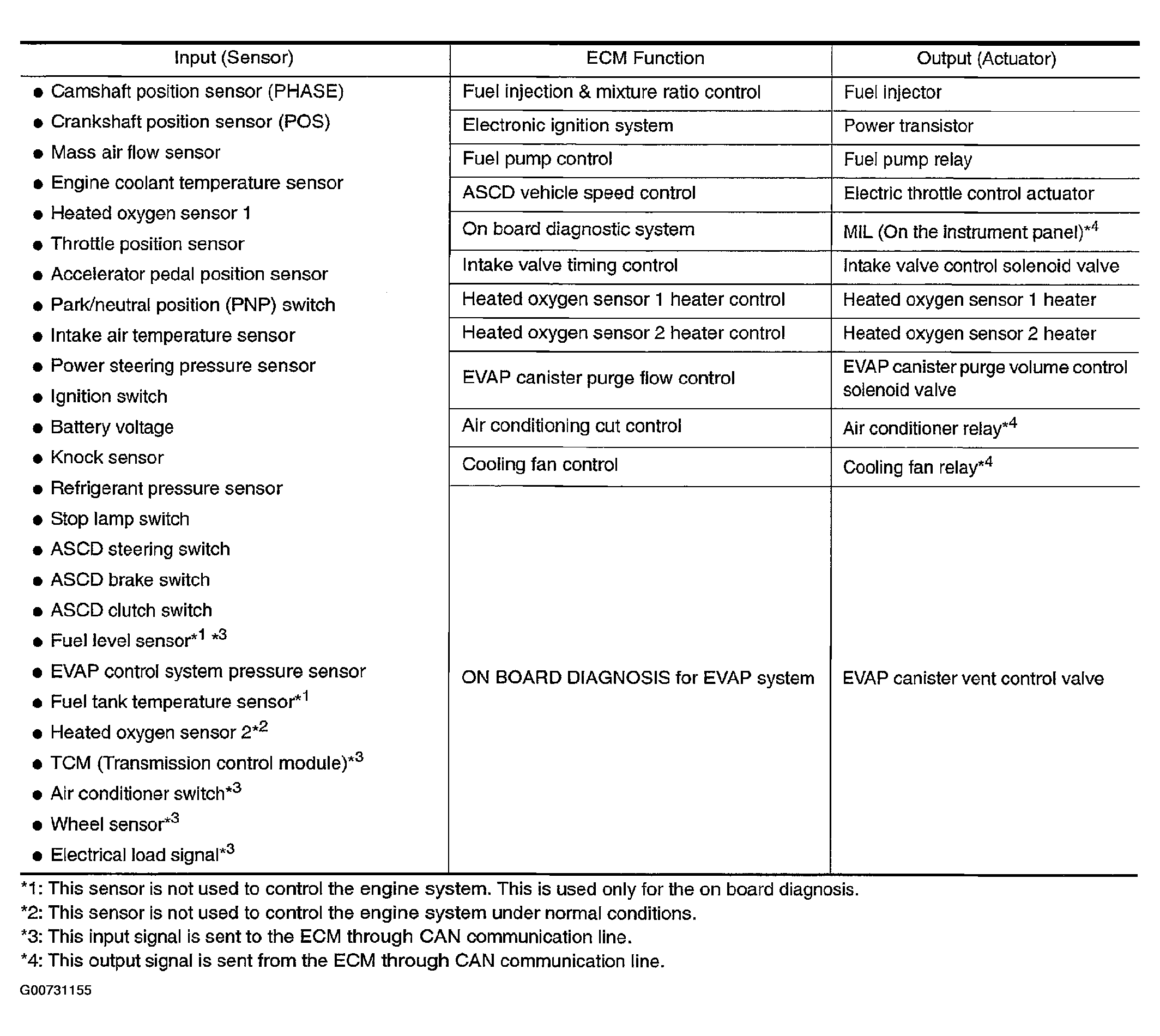

Fig 1: Engine Control System -System Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
