2004 - Engine Control System - Sedan
›
Engine Control System
›
System Diagram
System Diagram

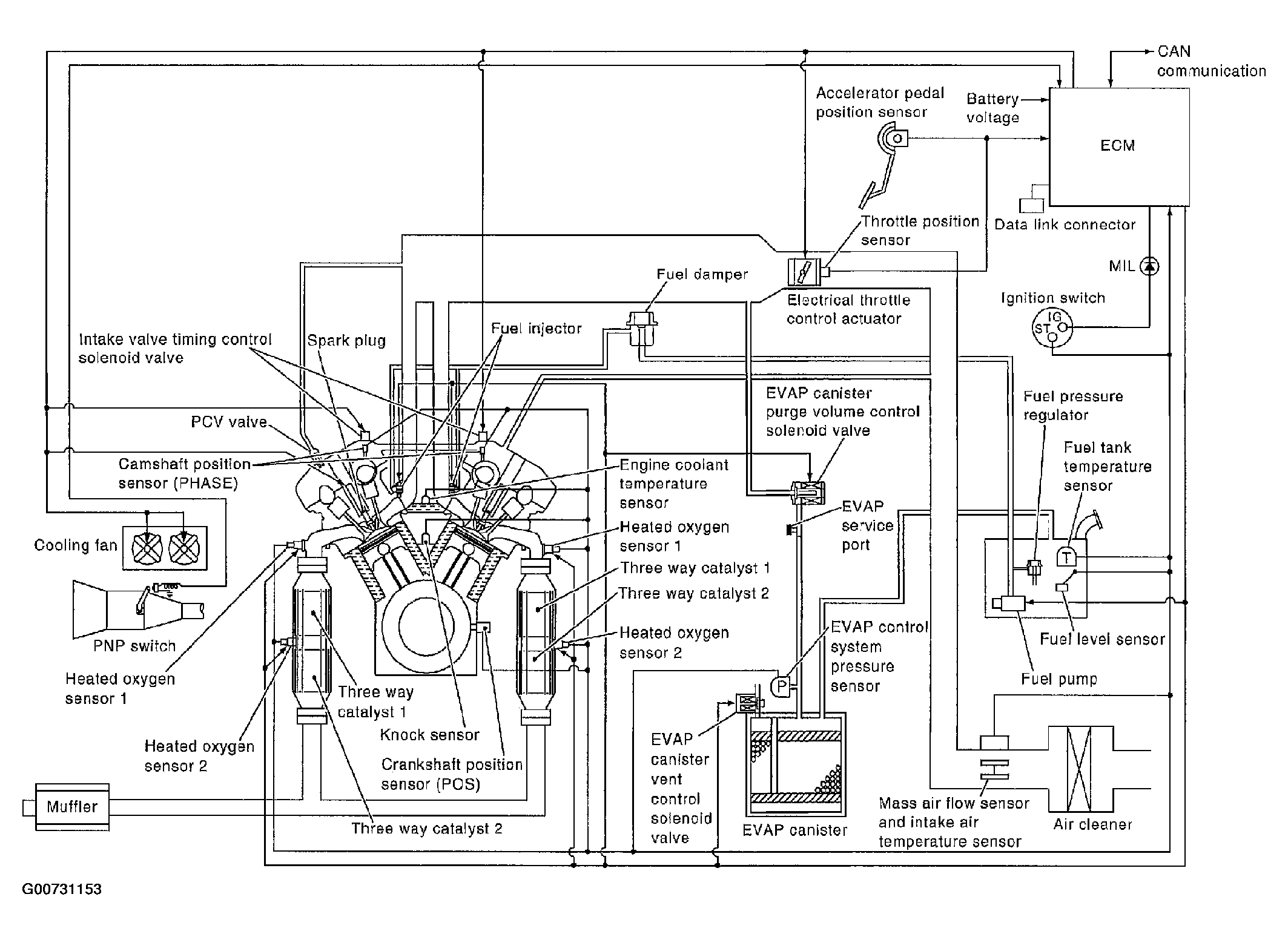

Fig 1: Identifying Engine Control System - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
