Idle Speed and Ignition Timing

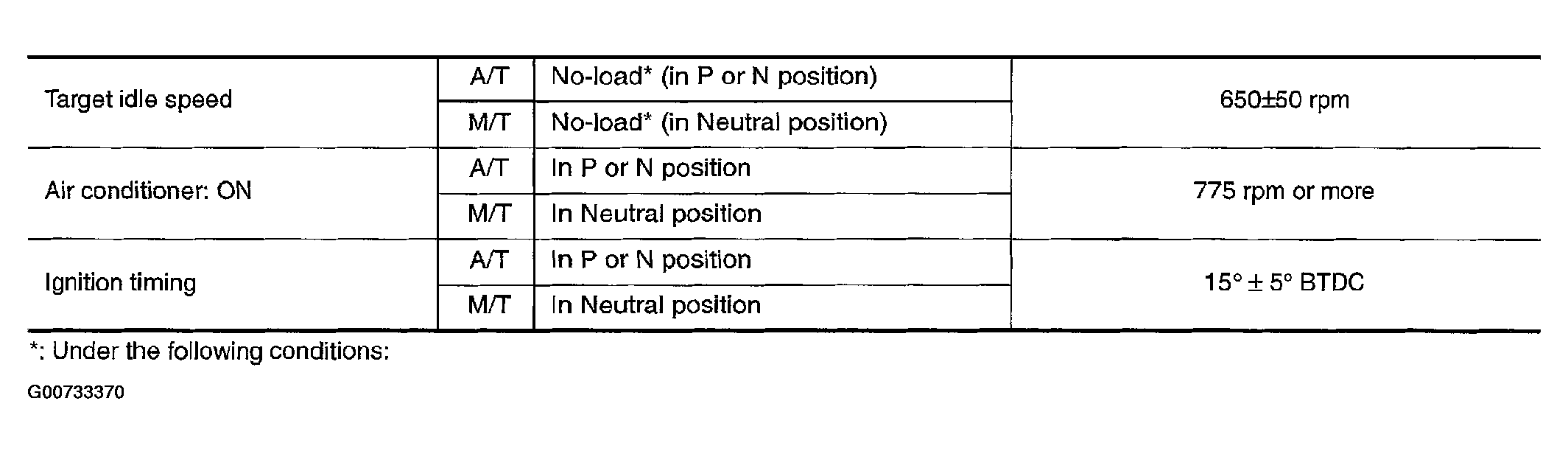

Fig 1: Idle Speed And Ignition Timing Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

• Air conditioner switch: OFF
• Electric load: OFF (Light, heater fan & rear window defogger
• Steering wheel: Kept in straight-ahead position
