2004 - Engine Control System - Sedan
›
Trouble Diagnosis
›
DTC P1217: Engine Over Temperature (For M/T Models)
›
CONSULT-II Reference Value in Data Monitor Modes
CONSULT-II Reference Value in Data Monitor Modes
Specification data are reference values.

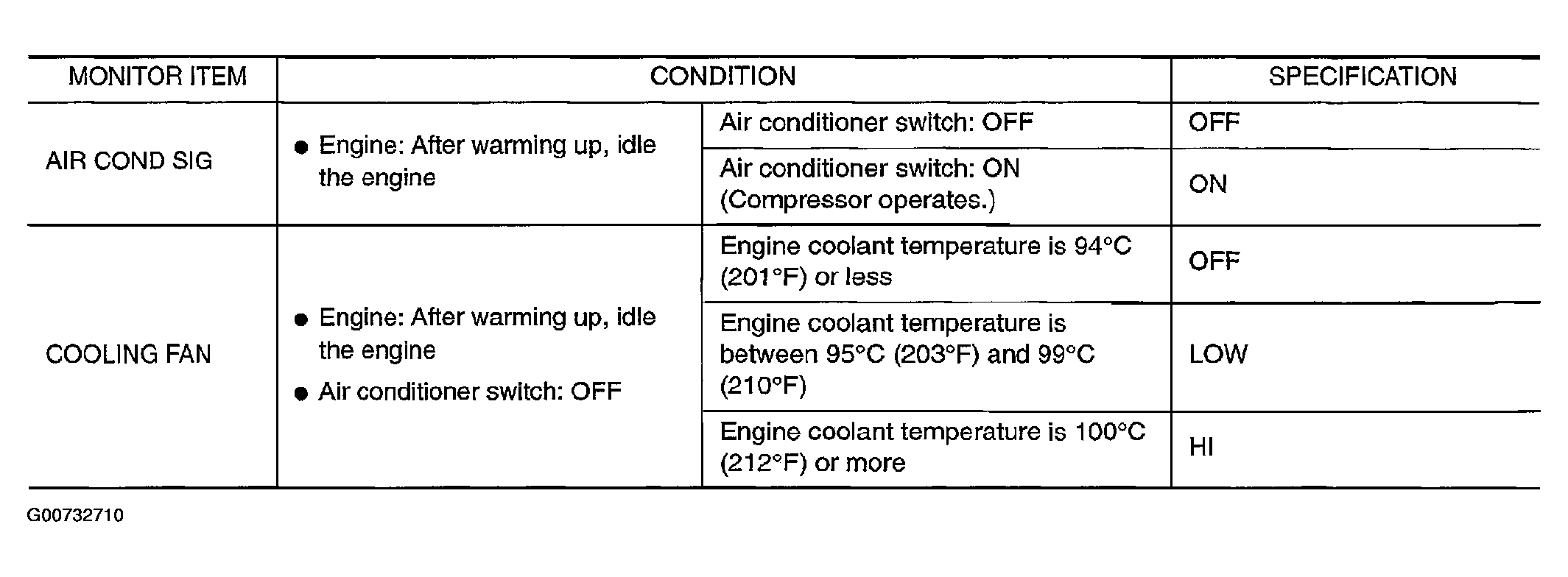

Fig 1: CONSULT-II Reference Value In Data Monitor Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
