Diagnostic Procedure
- CHECK GROUND CONNECTIONS
- Turn ignition switch OFF.

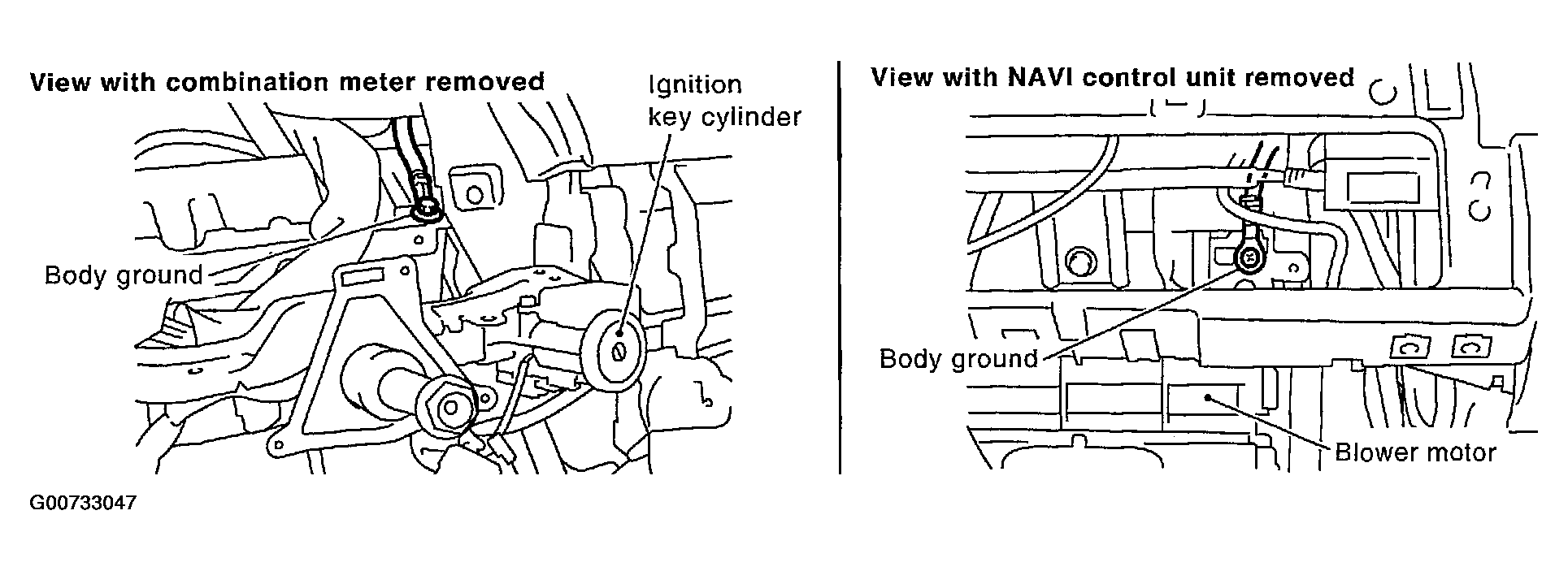

- Loosen and retighten two ground screws on the body. Refer to Ground Inspection .
OK or NG
- OK: GO TO 2.
- NG: Repair or replace ground connections.
- CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT

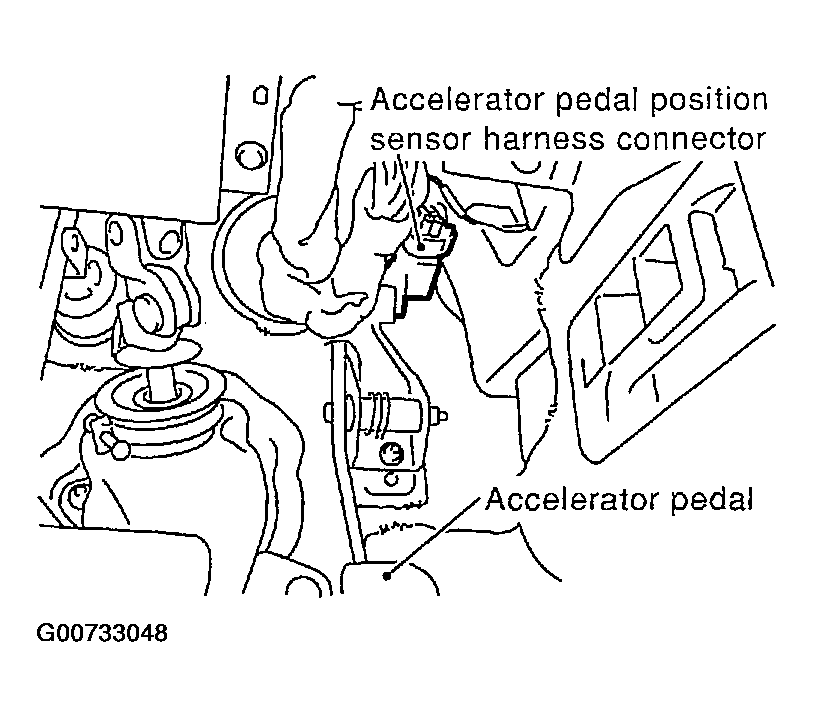

- Disconnect accelerator pedal position (APP) sensor harness connector.
- Turn ignition switch ON.
- Check voltage between APP sensor terminal 6 and ground with CONSULT-II or tester.
- Voltage: Approximately 5V
OK or NG
- OK: GO TO 4.
- NG: GO TO 3.
- DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E10, F1
- Harness for open or short between ECM and accelerator pedal position sensor.
- : Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
Check voltage between APP sensor terminal 4 and ground with CONSULT-II or tester.
- Voltage: Approximately 5V
OK or NG
- OK: GO TO 10.
- NG: GO TO 5.
- CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
- Turn ignition switch OFF.
- Disconnect ECM harness connector.
- Check harness continuity between APP sensor terminal 4 and ECM terminal 91.
Refer to Wiring Diagram.
- Continuity should exist.
OK or NG
- OK: GO TO 7.
- NG: GO TO 6.
- DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E10, F1
- Harness for open between ECM and accelerator pedal position sensor.
- : Repair or replace open circuit.
- CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals.
OK or NG
- OK: GO TO 8.
- NG: Repair short to ground or short to power in harness or connectors.
- CHECK THROTTLE POSITION SENSOR
Refer to Component Inspection .
OK or NG
- OK: GO TO 16.
- NG: GO TO 9.
- REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
- Replace the electric throttle control actuator.
- Perform Throttle Valve Closed Position Learning .
- Perform Idle Air Volume Learning .
- : INSPECTION END
- CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
- Turn ignition switch OFF.
- Disconnect ECM harness connector.
- Check harness continuity between APP sensor terminal 1 and ECM terminal 83, APP sensor terminal 3 and ECM terminal 82.
Refer to Wiring Diagram.
- Continuity should exist.
- Also check harness for short to ground and short to power.
OK or NG
- OK: GO TO 12.
- NG: GO TO 11.
- DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E10, F1
- Harness for open or short between ECM and accelerator pedal position sensor.
- : Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
- Check harness continuity between ECM terminal 106 and APP sensor terminal 5, ECM terminal 98 and APP sensor terminal 2.
Refer to Wiring Diagram.
- Continuity should exist.
- Also check harness for short to ground and short to power.
OK or NG
- OK: GO TO 14.
- NG: GO TO 13.
- Check harness continuity between ECM terminal 106 and APP sensor terminal 5, ECM terminal 98 and APP sensor terminal 2.
- DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E10, F1
- Harness for open or short between ECM and accelerator pedal position sensor.
- : Repair open circuit or short ground or short to power in harness or connectors.
- CHECK APP SENSOR
Refer to Component Inspection .
OK or NG
- OK: GO TO 16.
- NG: GO TO 15.
- REPLACE ACCELERATOR PEDAL ASSEMBLY
- Replace accelerator pedal assembly.
- Perform Accelerator Pedal Released Position Learning
- Perform Throttle Valve Closed Position Learning
- Perform Idle Air Volume Learning
- : INSPECTION END
- CHECK INTERMITTENT INCIDENT
Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .
- : INSPECTION END
