2004 - Engine Control System - Sedan
›
Trouble Diagnosis
›
Trouble Diagnosis Introduction
›
CONSULT-II Function
›
Function
CONSULT-II Function: Function

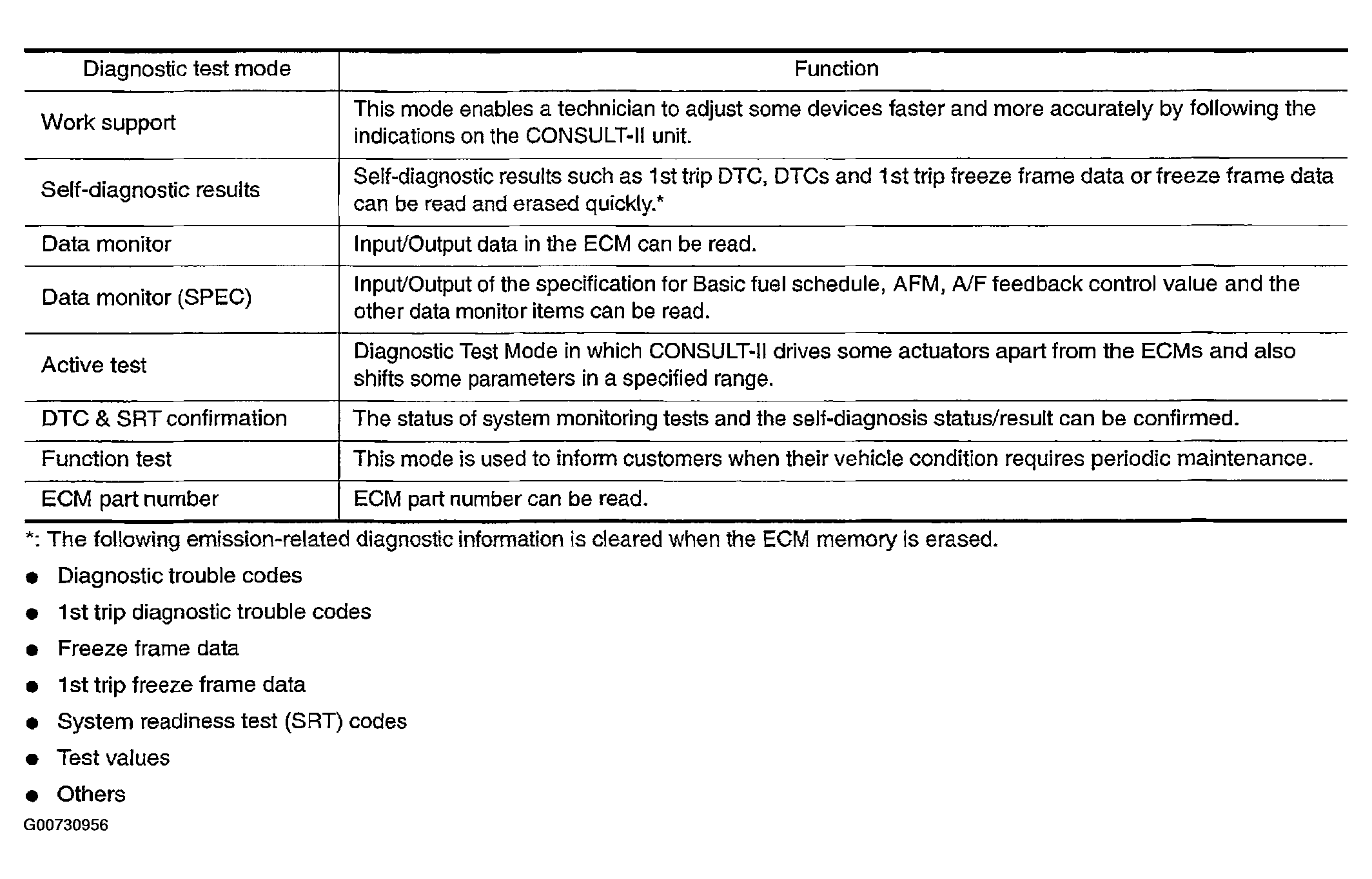

Fig 1: CONSULT-II Function - Table
Courtesy of NISSAN MOTOR CO., U.S.A.

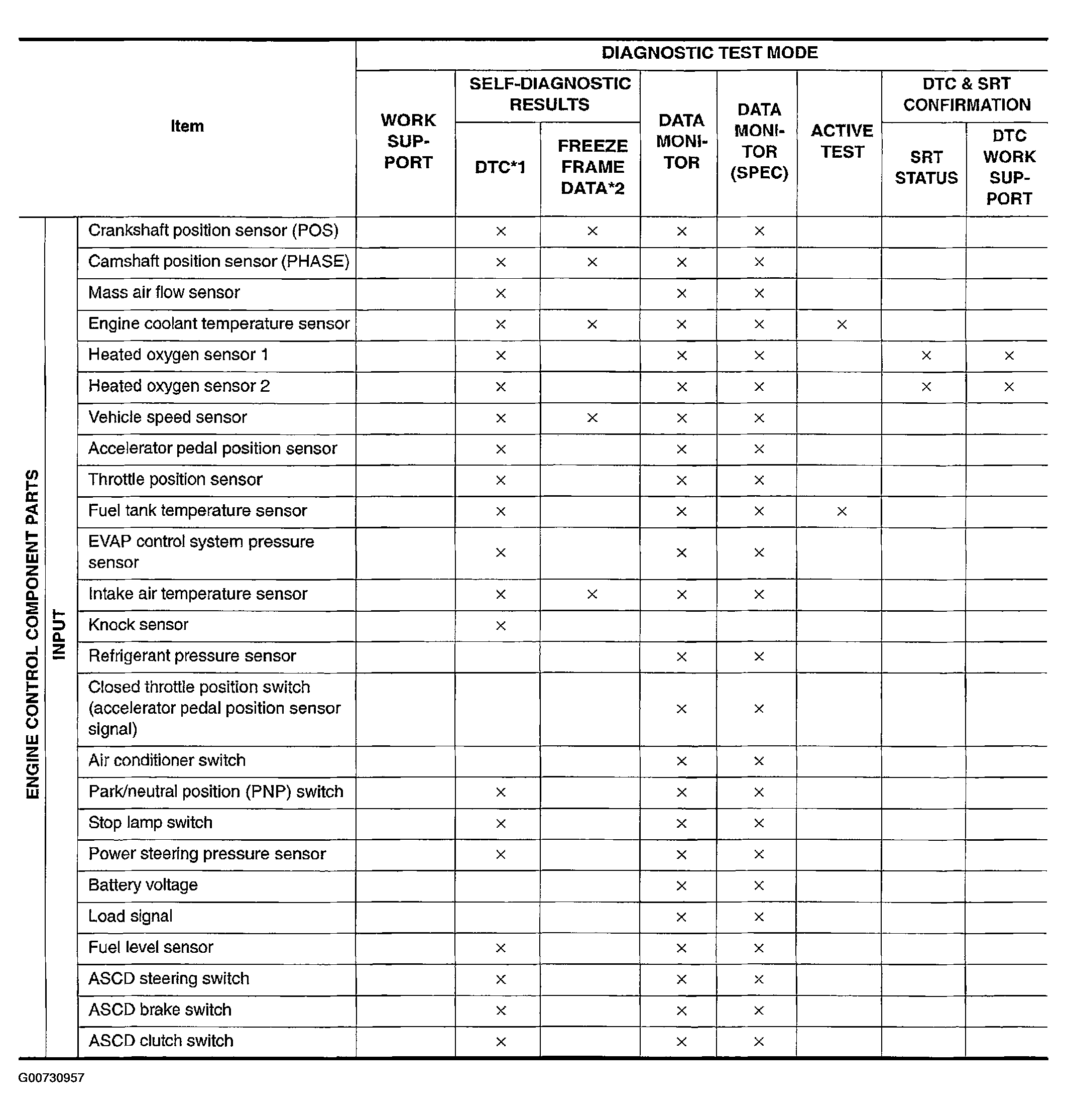

Fig 2: Engine Control Component Parts Application Table (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

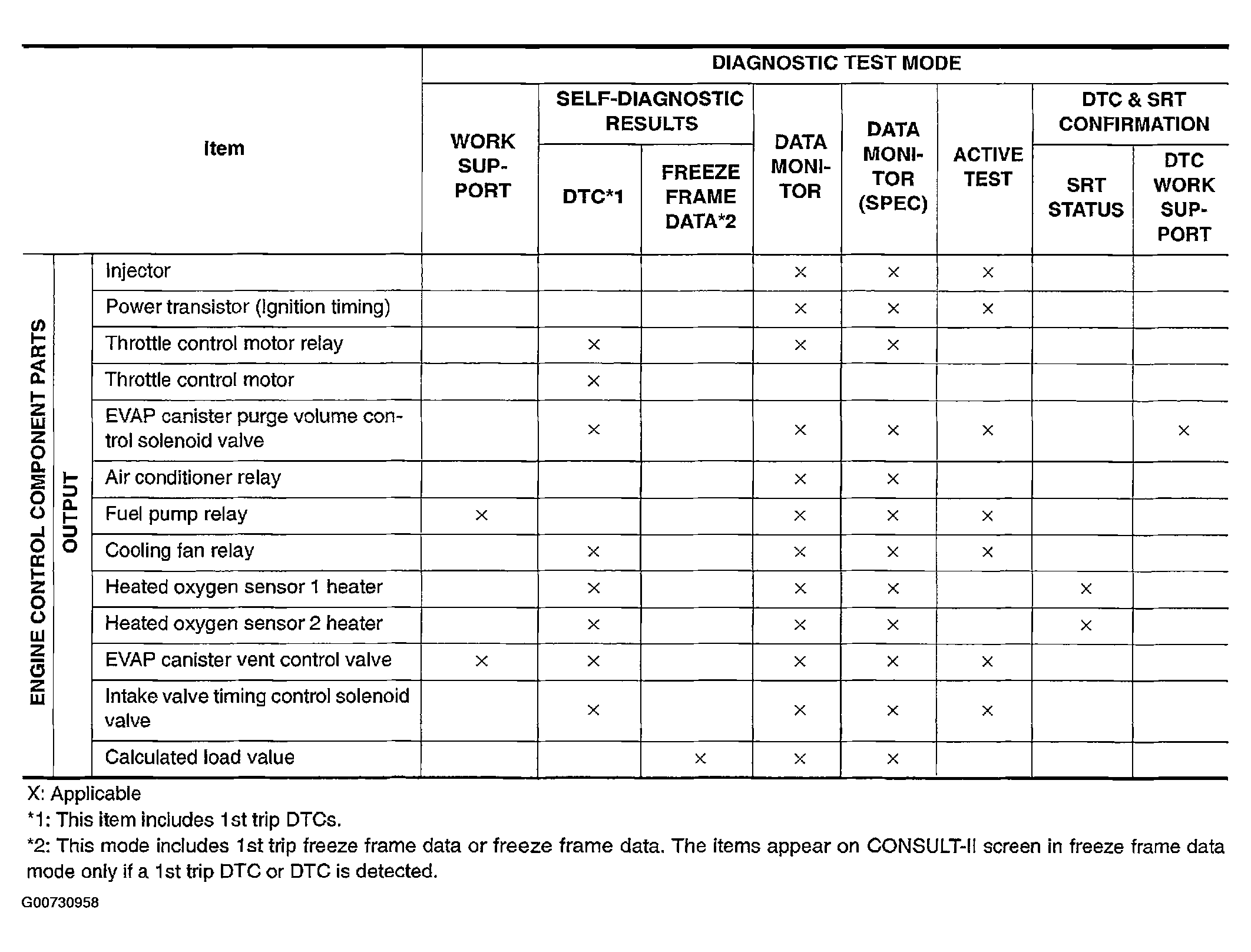

Fig 3: Engine Control Component Parts Application Table (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
