ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

Fig 1: ECM Inspection Table (1 Of 10)

G00731260

Courtesy of NISSAN MOTOR CO., U.S.A.

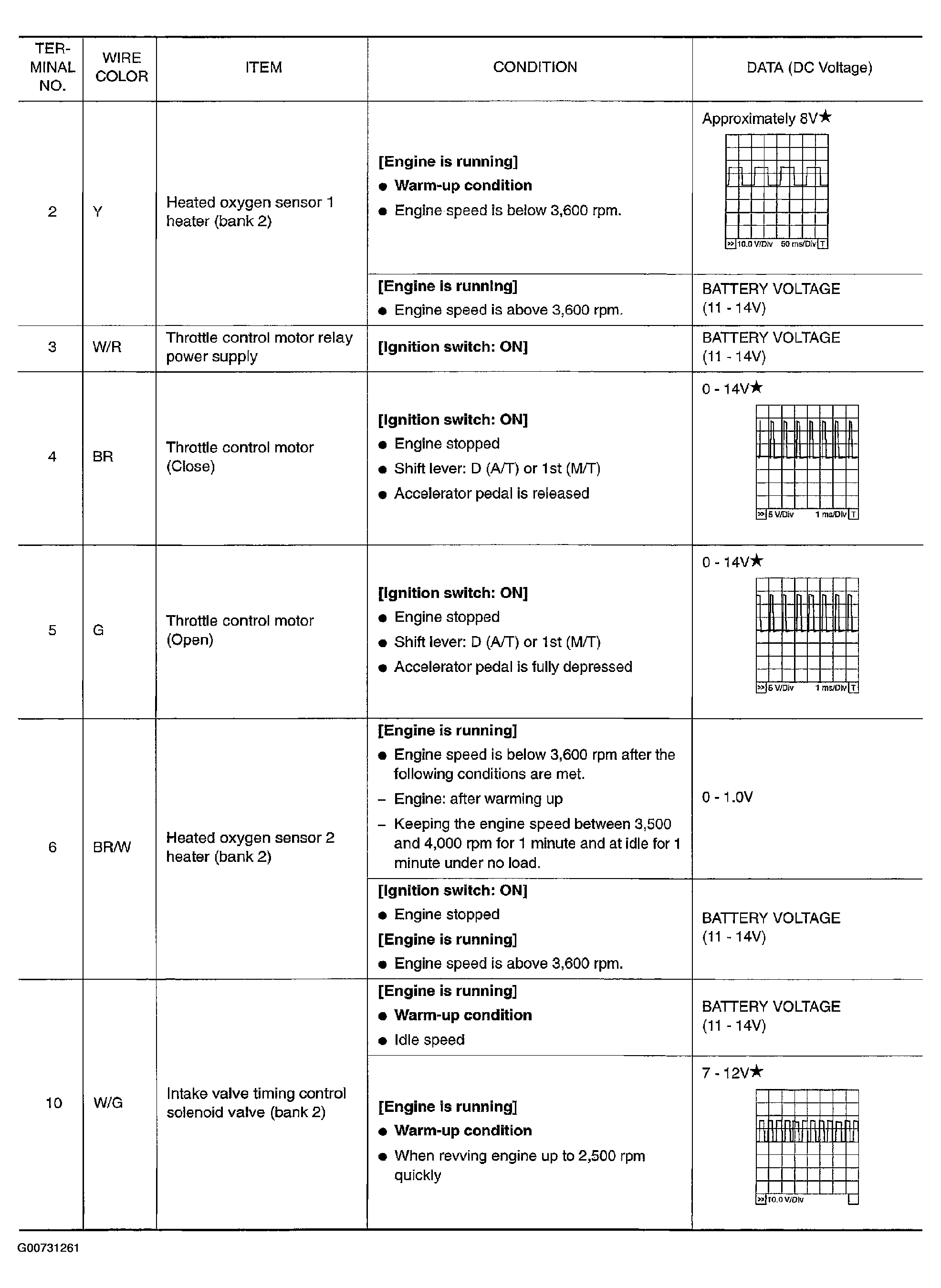

Fig 2: ECM Inspection Table (2 Of 10)

G00731261

Courtesy of NISSAN MOTOR CO., U.S.A.

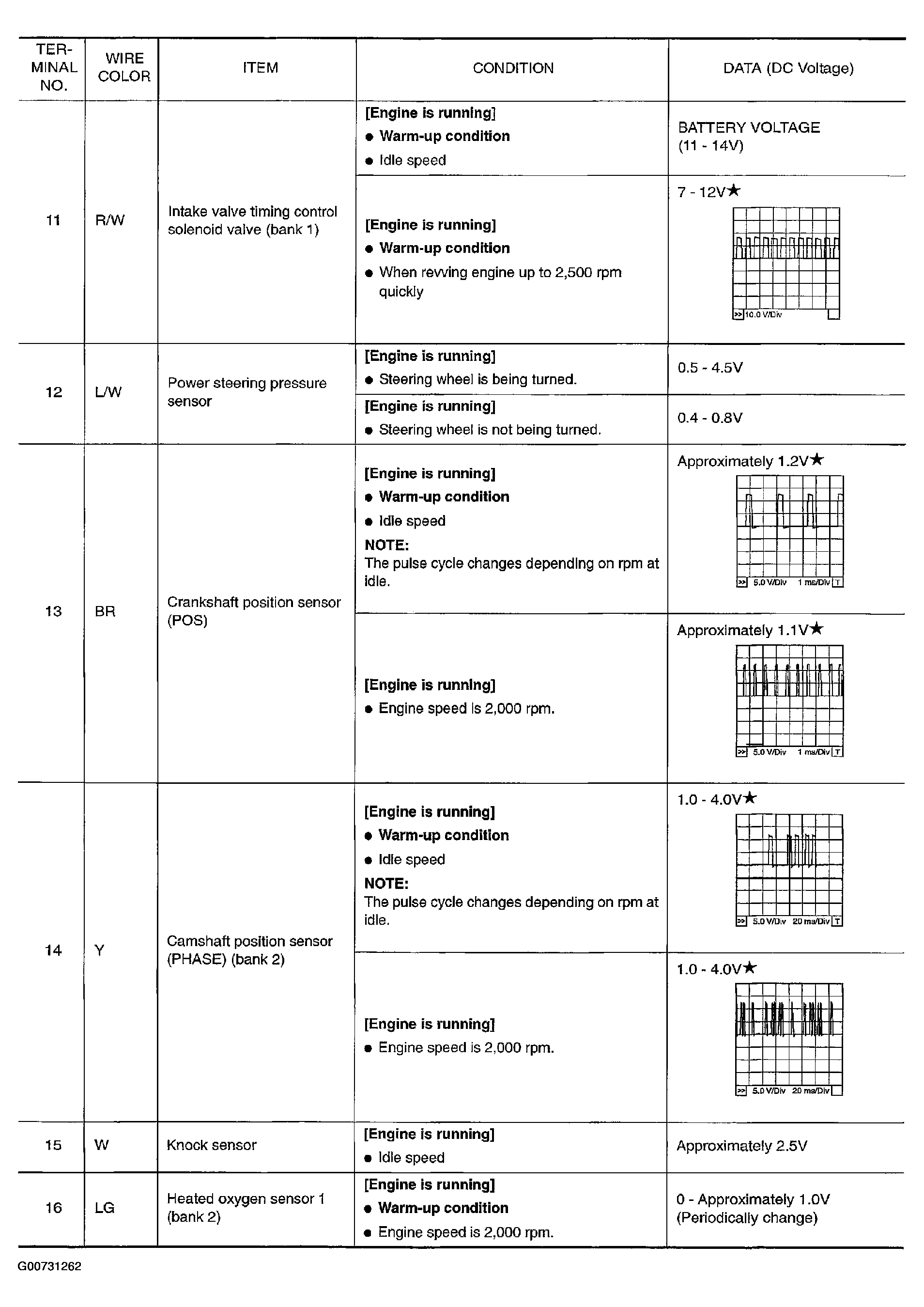

Fig 3: ECM Inspection Table (3 Of 10)

G00731262

Courtesy of NISSAN MOTOR CO., U.S.A.

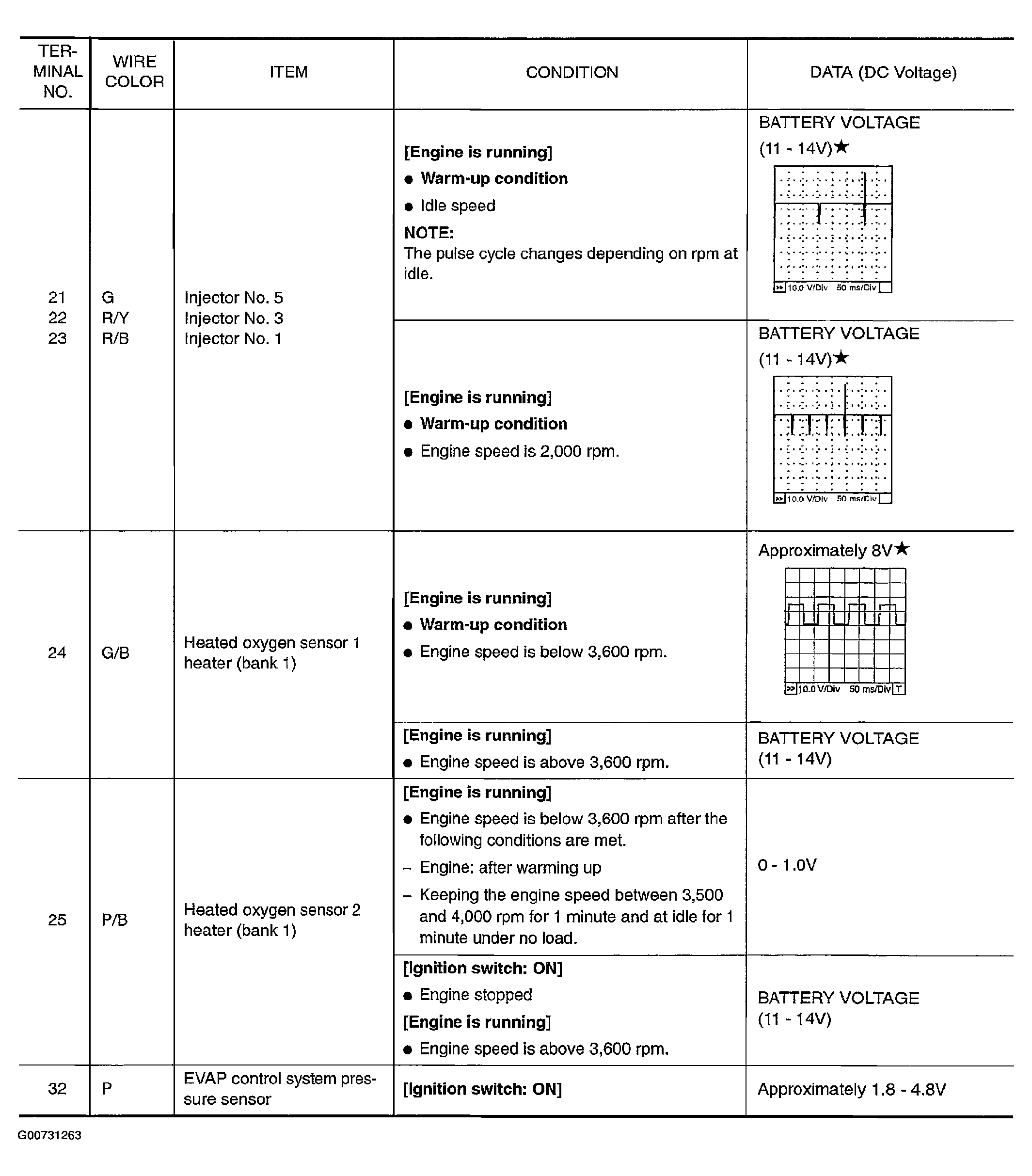

Fig 4: ECM Inspection Table (4 Of 10)

G00731263

Courtesy of NISSAN MOTOR CO., U.S.A.

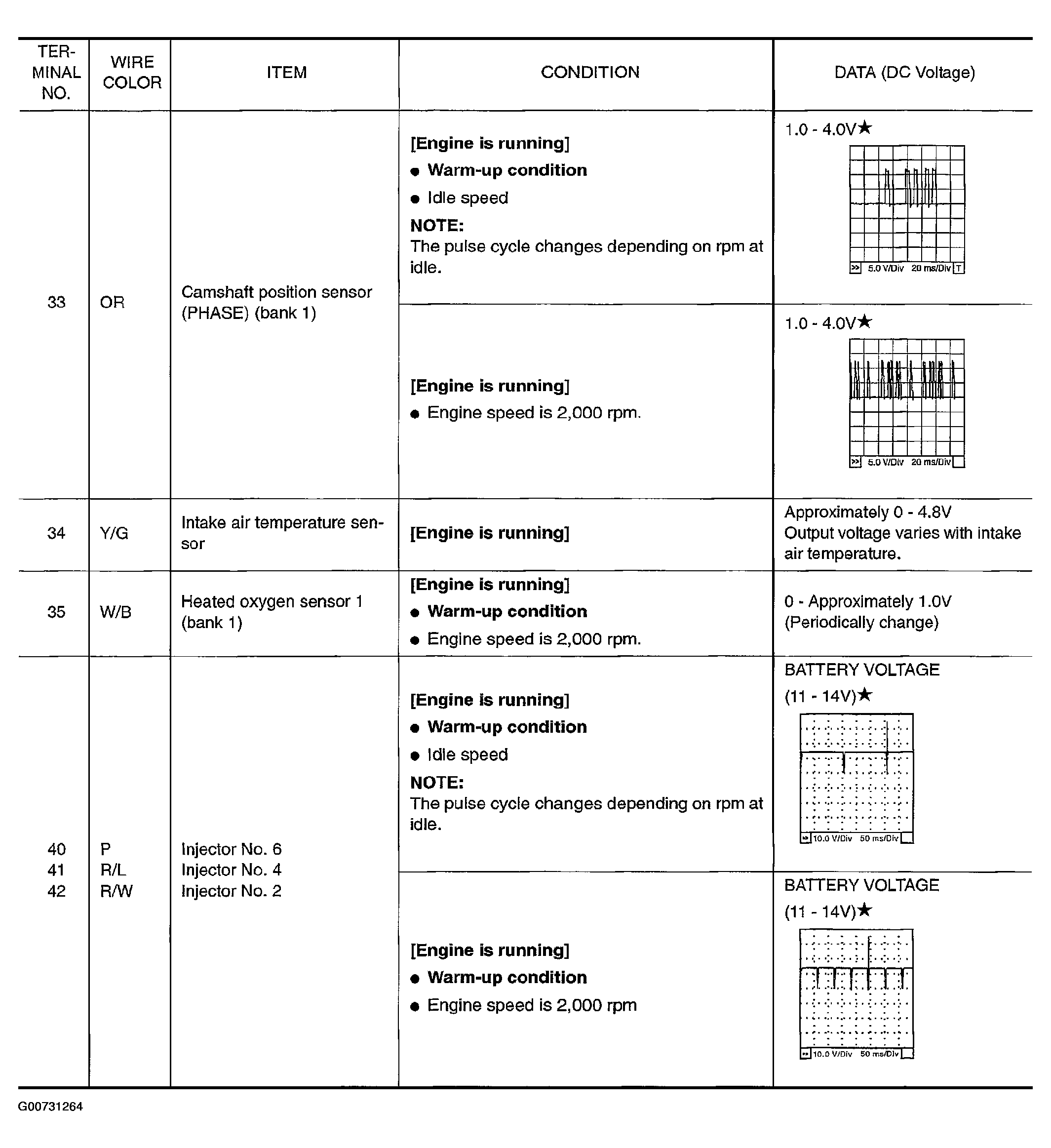

Fig 5: ECM Inspection Table (5 Of 10)

G00731264

Courtesy of NISSAN MOTOR CO., U.S.A.

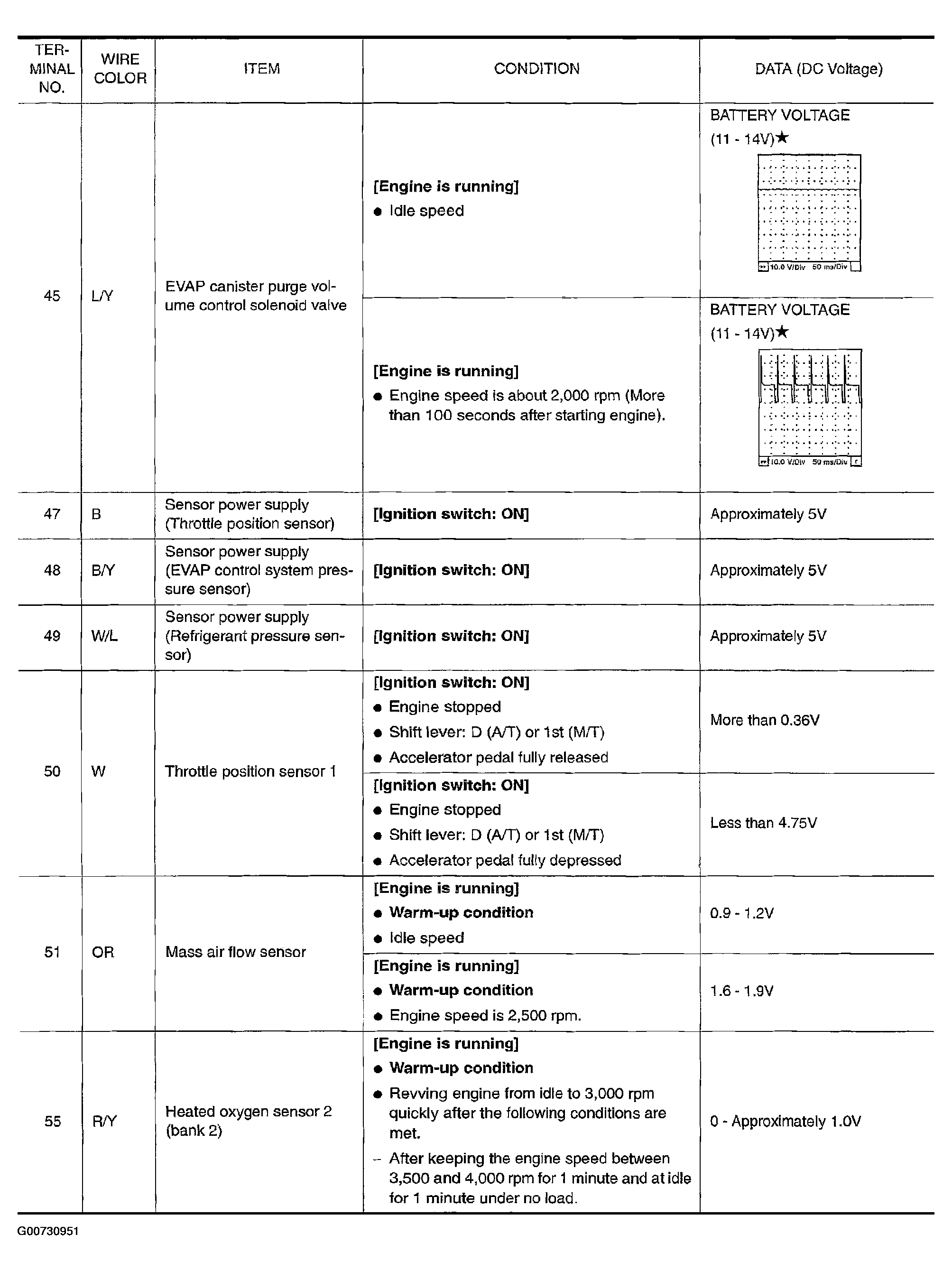

Fig 6: ECM Inspection Table (6 Of 10)

G00730951

Courtesy of NISSAN MOTOR CO., U.S.A.

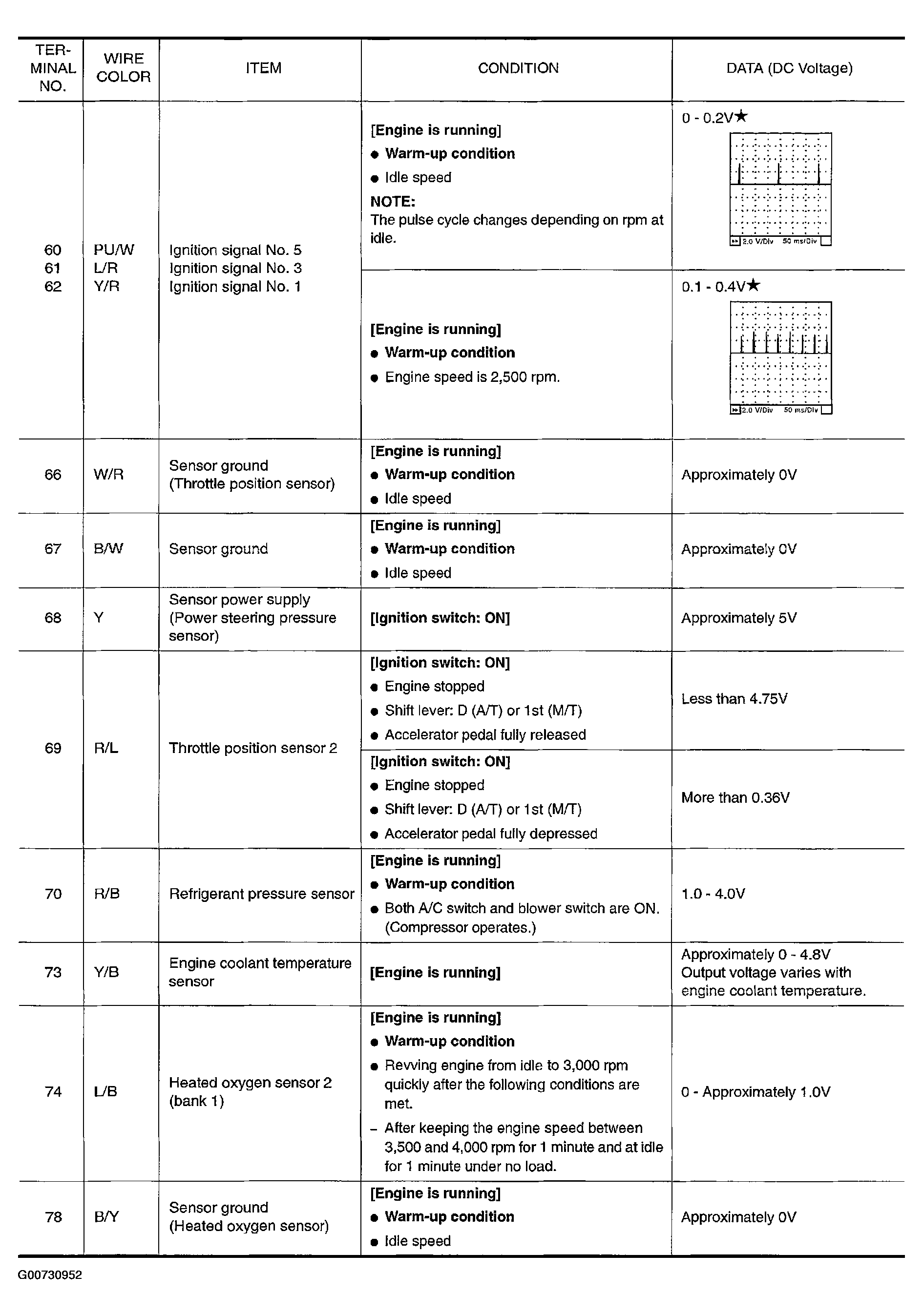

Fig 7: ECM Inspection Table (7 Of 10)

G00730952

Courtesy of NISSAN MOTOR CO., U.S.A.

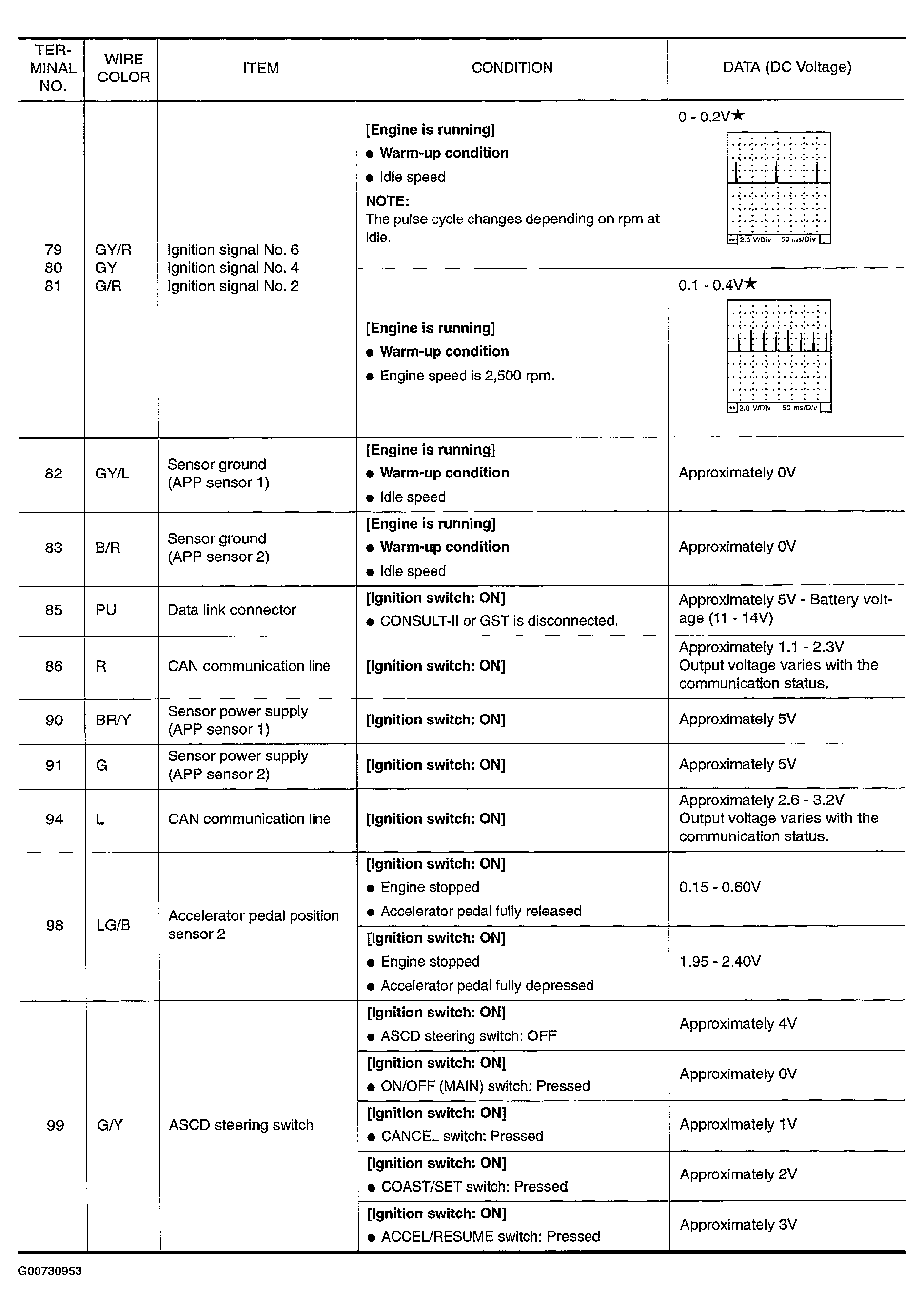

Fig 8: ECM Inspection Table (8 Of 10)

G00730953

Courtesy of NISSAN MOTOR CO., U.S.A.

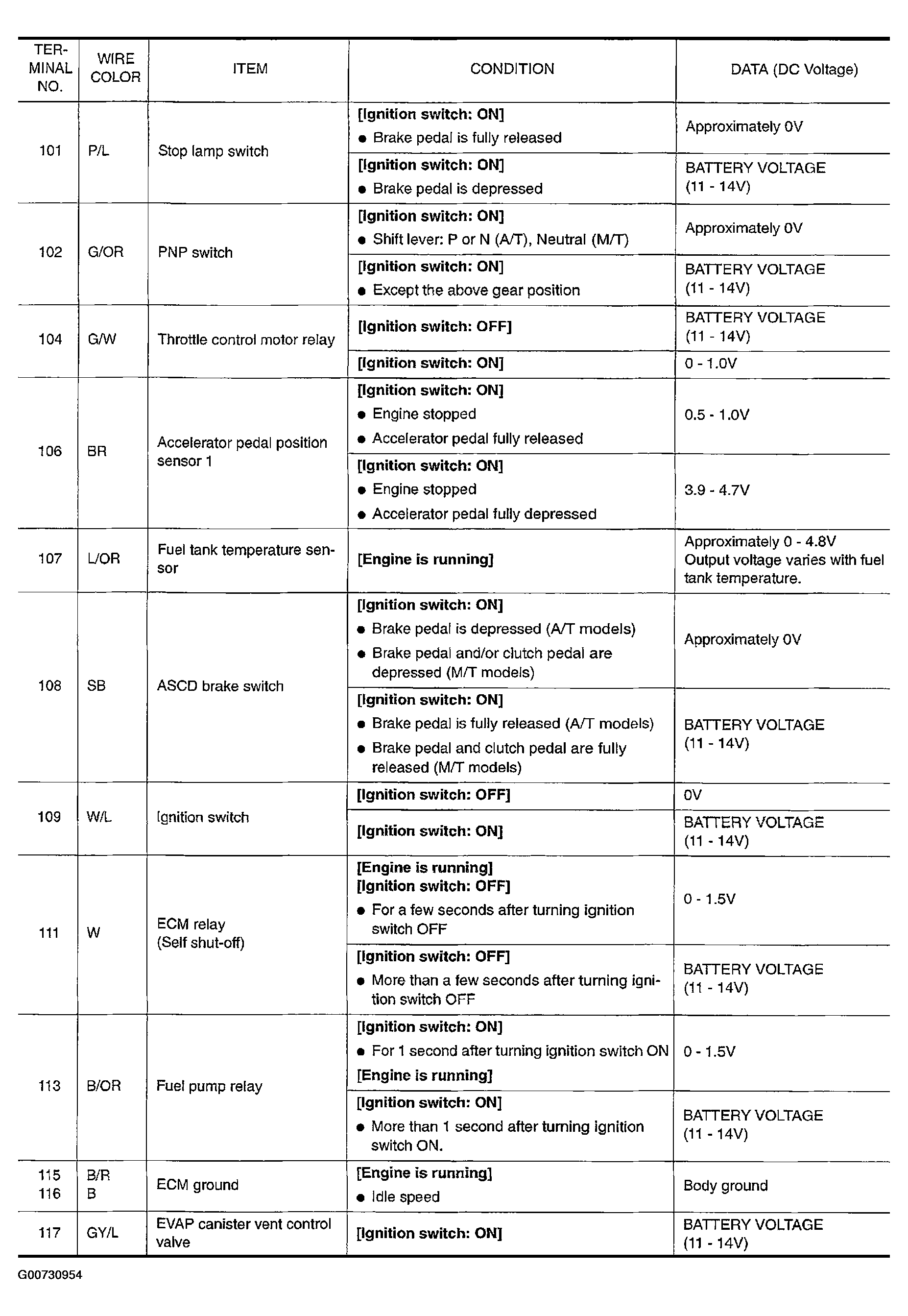

Fig 9: ECM Inspection Table (9 Of 10)

G00730954

Courtesy of NISSAN MOTOR CO., U.S.A.

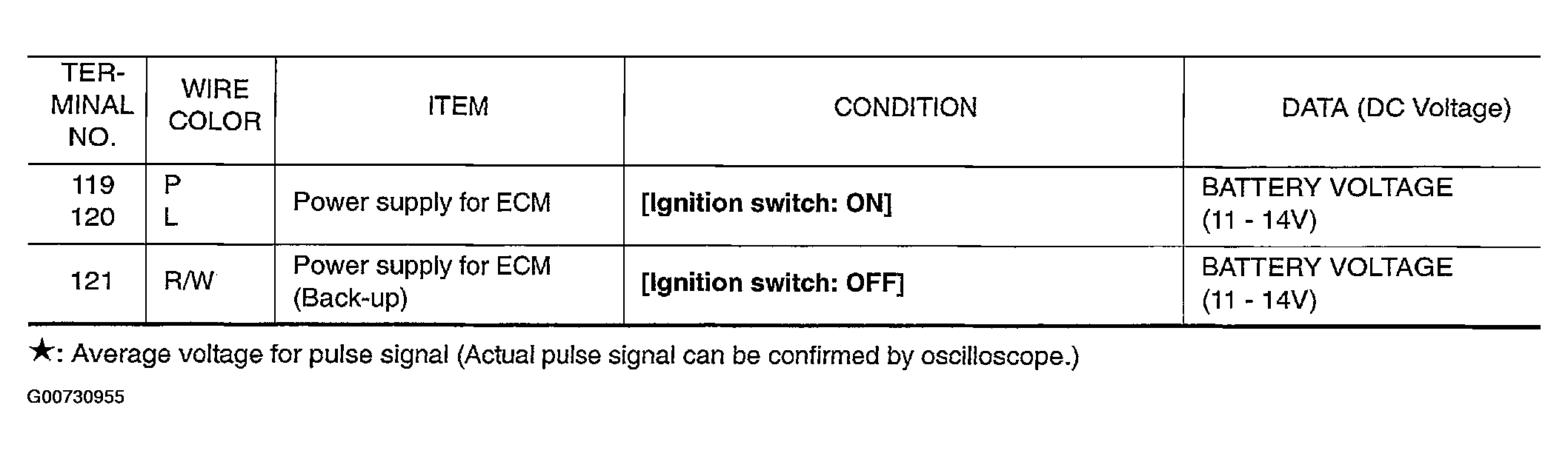

Fig 10: ECM Inspection Table (10 Of 10)

G00730955

Courtesy of NISSAN MOTOR CO., U.S.A.
