2004.5 - Engine Control System - Introduction - Sedan
›
Trouble Diagnosis
›
Circuit Diagram
›
2WD Models
2WD Models

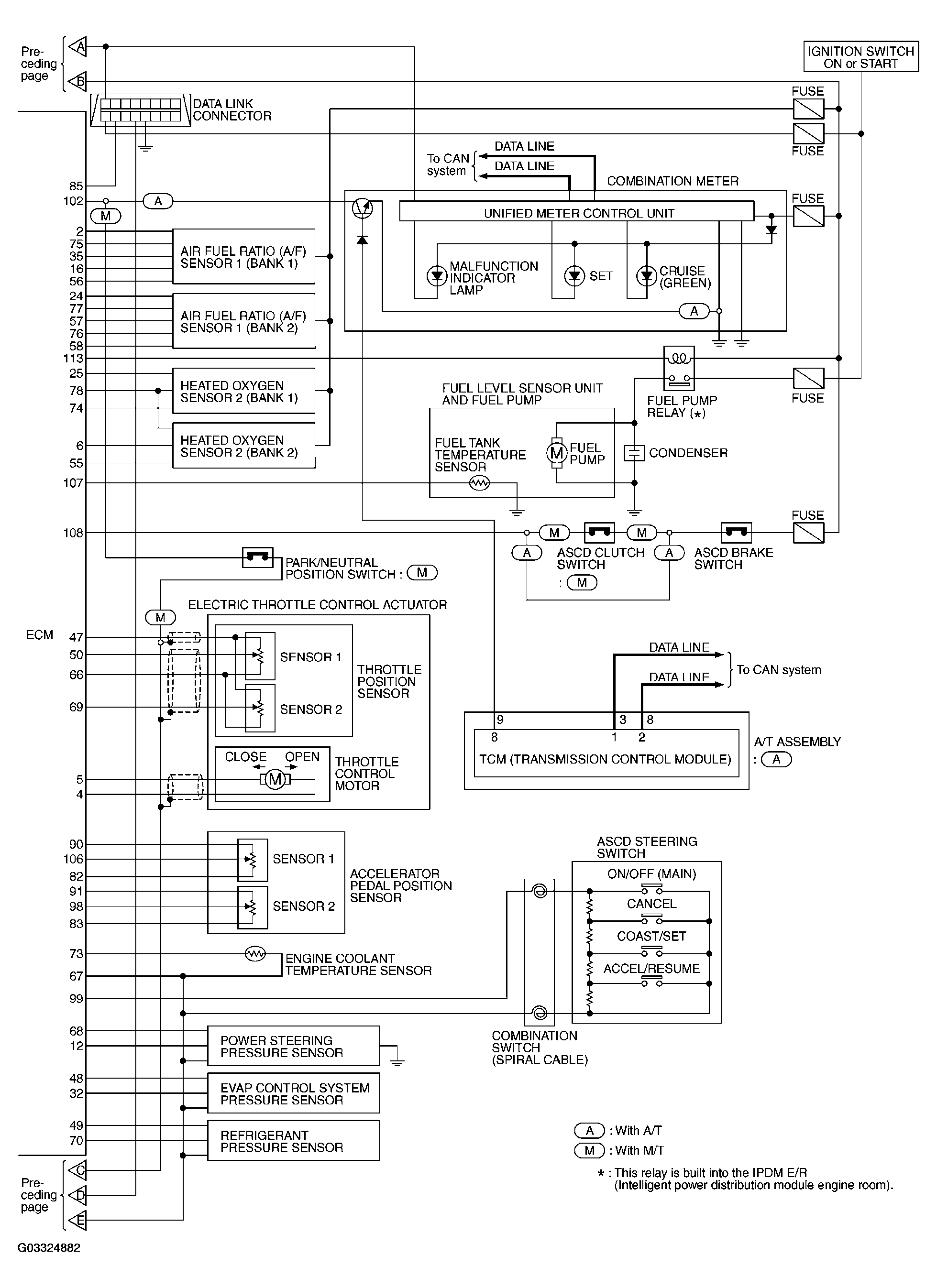

Fig 1: Circuit Diagram 2WD Models (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

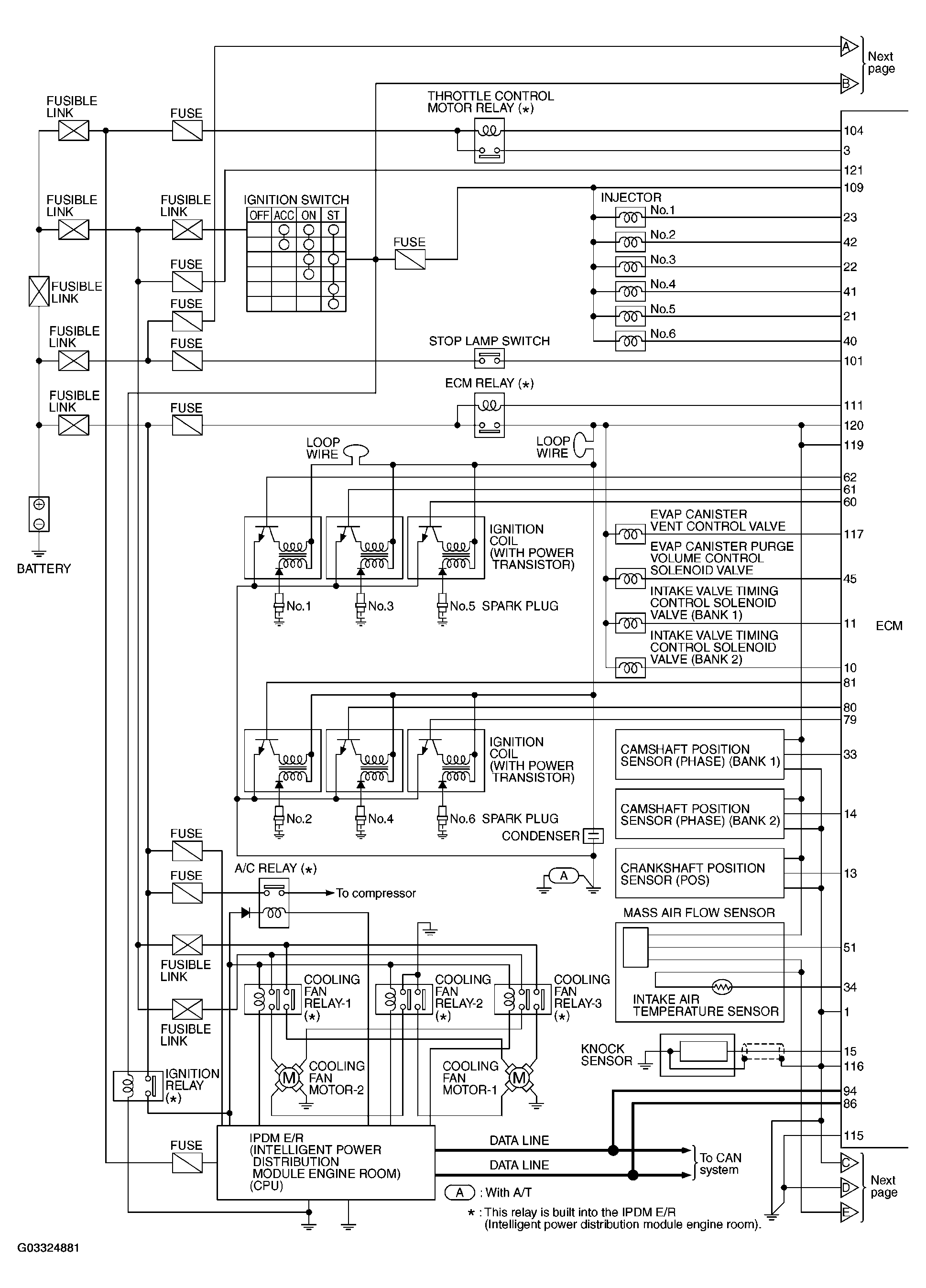

Fig 2: Circuit Diagram 2WD Models (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
