2004.5 - Engine Control System - Introduction - Sedan
›
Trouble Diagnosis
›
Circuit Diagram
›
AWD Models
AWD Models

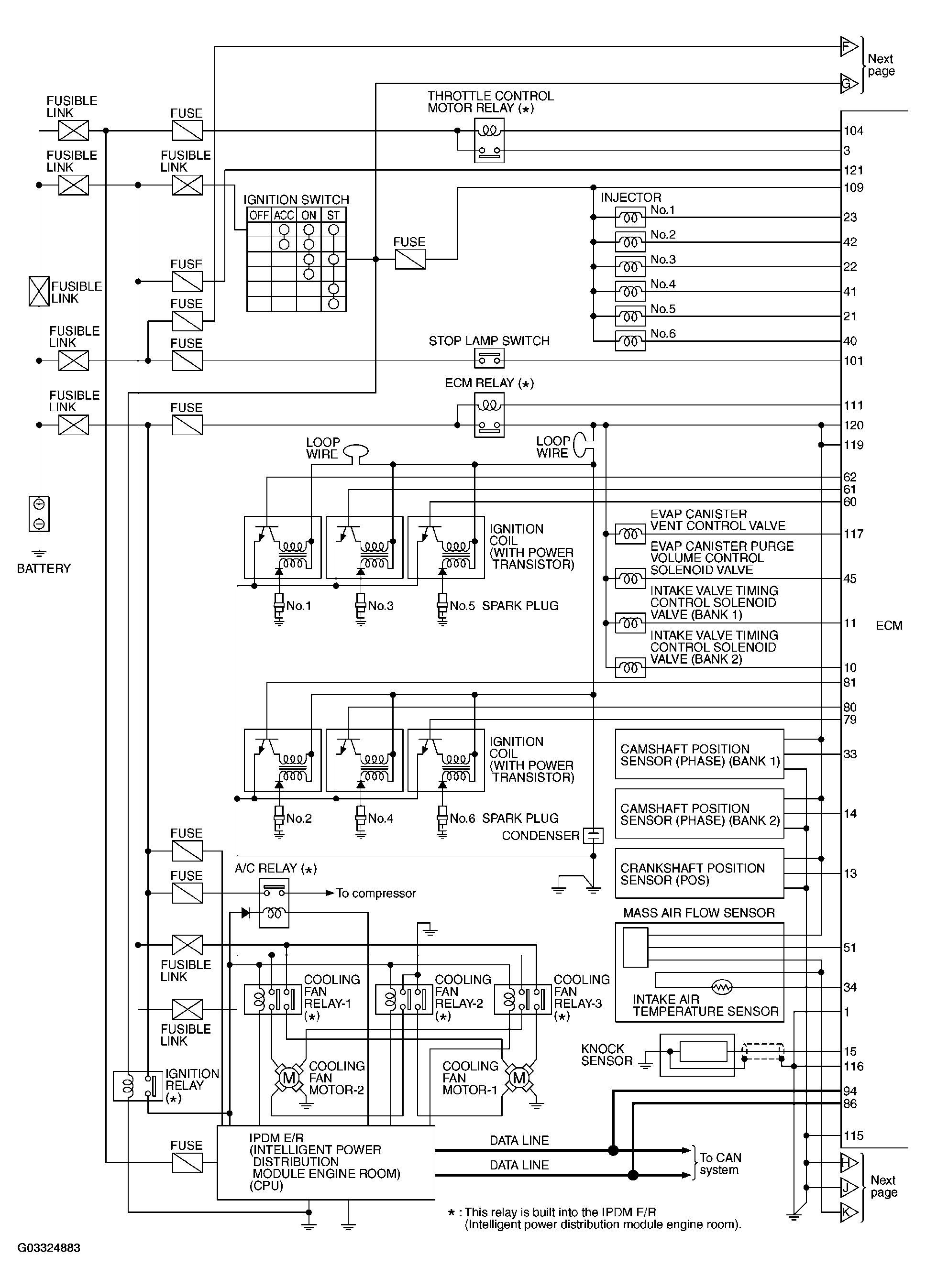

Fig 1: Circuit Diagram AWD Models (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

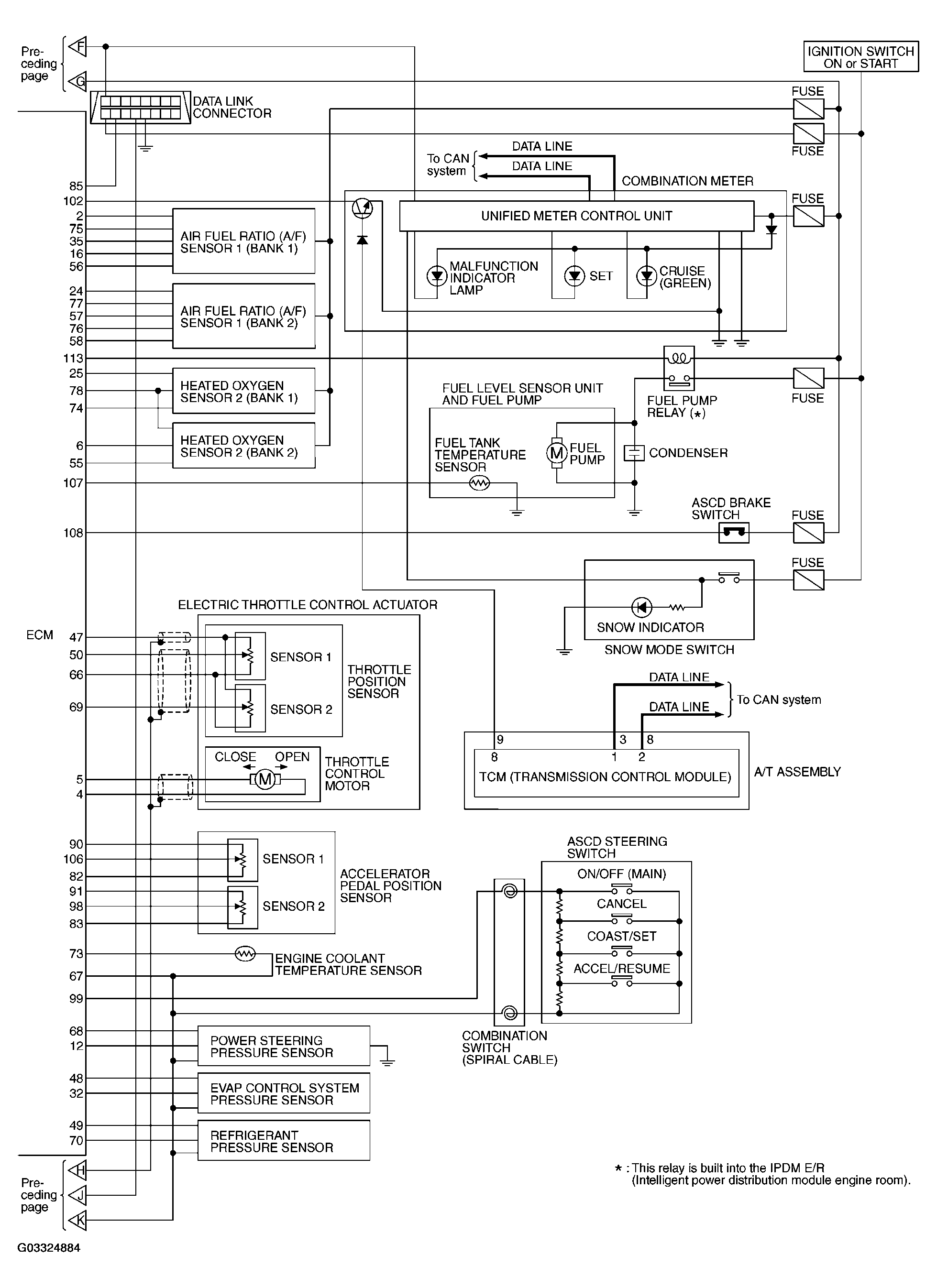

Fig 2: Circuit Diagram AWD Models (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
