Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

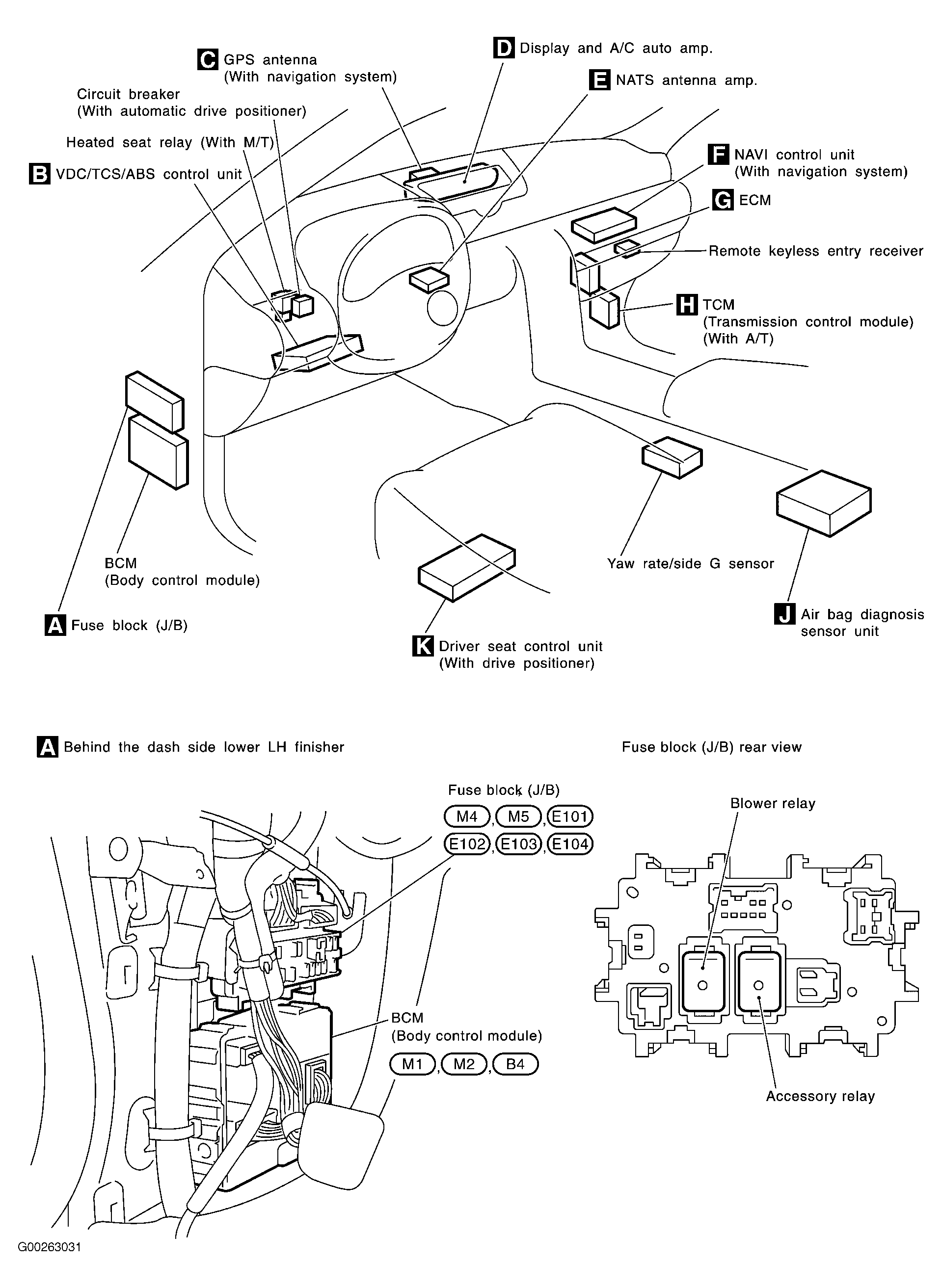

| Circuit Breaker (W/Auto Drive Positioner) | Behind left side of dash. See Figure . |

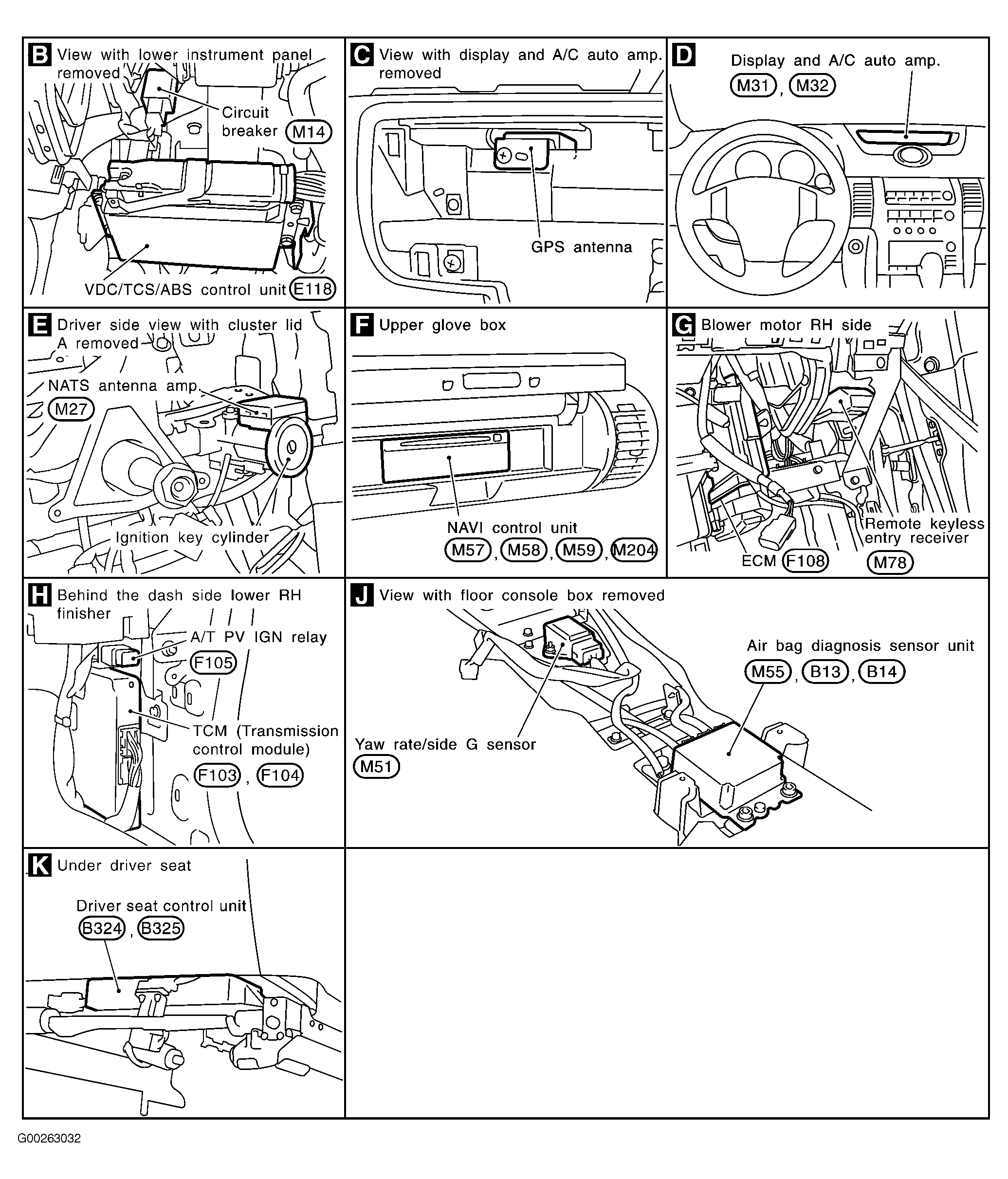

| Fuse Block (J/B) | Behind left kick panel. See Figure . |

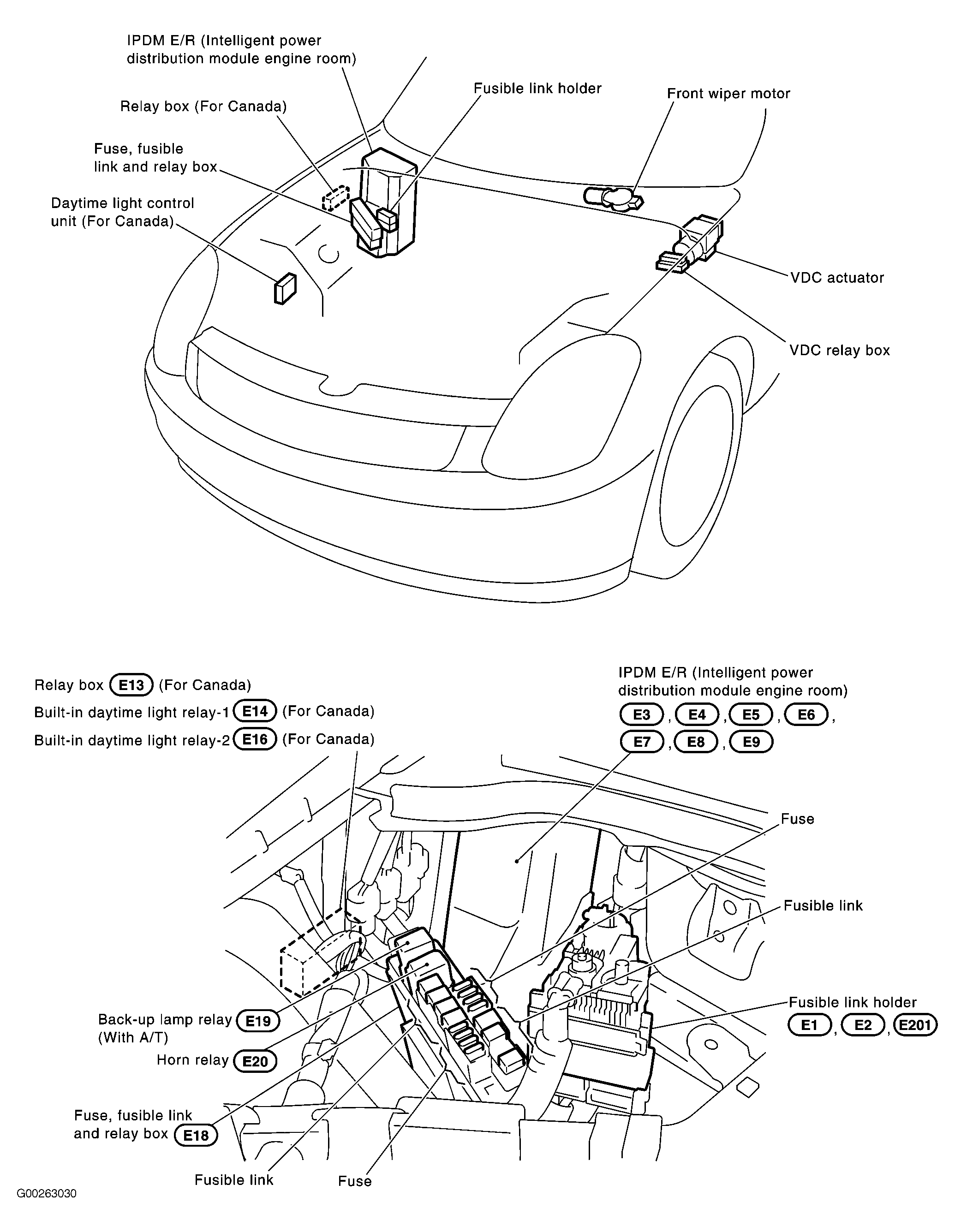

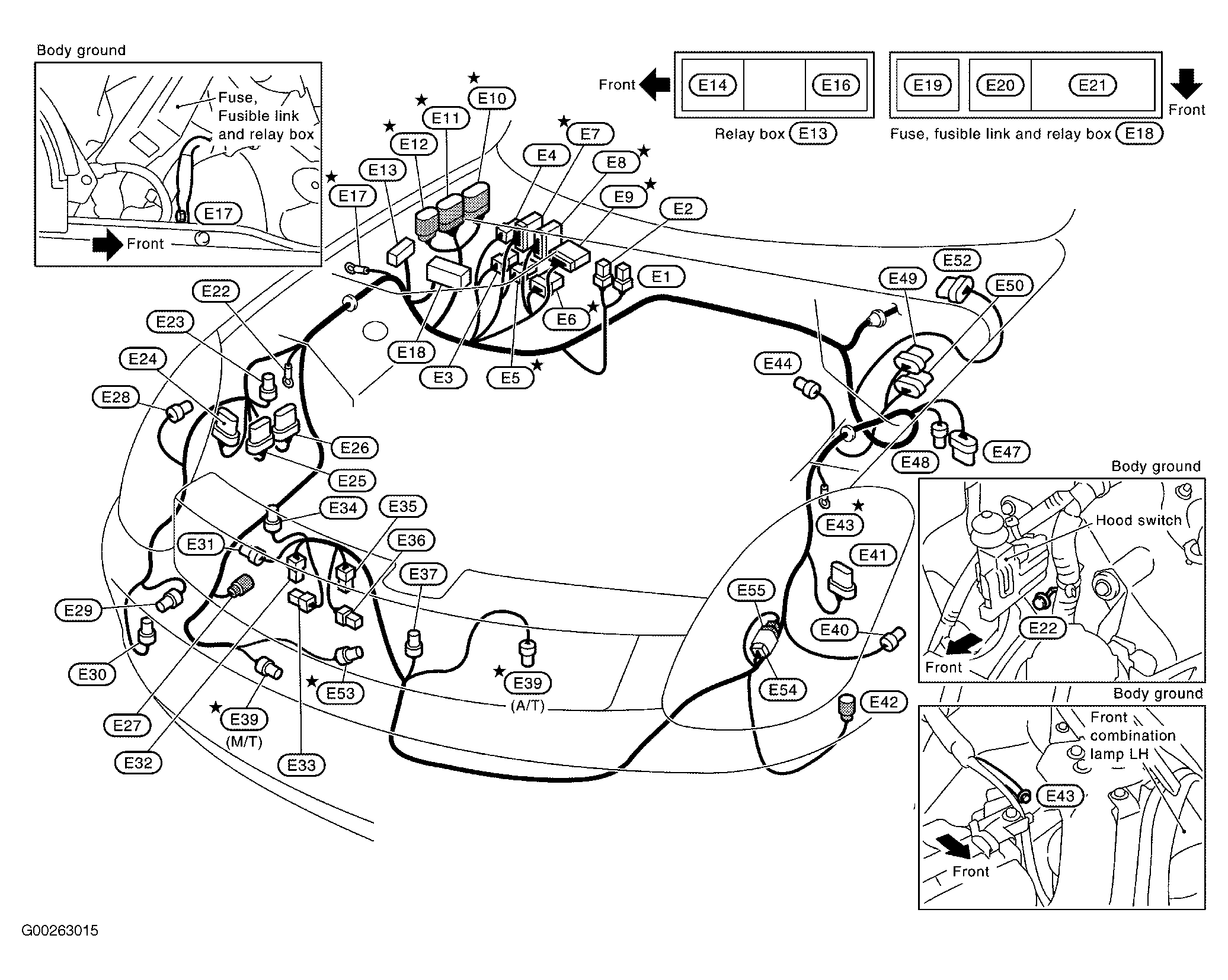

| Fuse, Fusible Link & Relay Box | At right rear of engine compartment. See Figure . |
| Fusible Link Holder | At right rear of engine compartment. See Figure . |
| Fusible Links | In fusible link & relay box, at right rear of engine compartment. See Figure . |
| IPDM E/R (Intelligent Power Distribution Module Engine Room) | At right rear of engine compartment. See Figure . |
| Relay Box (Canada) | At right rear of engine compartment. See Figure . |
| VDC Relay Box (E47) | At left rear of engine compartment. See Figure . |
