Interior Lamp Operation Check

Check if the interior lamp switch is in the ON position and the lamp illuminates.

1. Does interior lamp illuminate?

   Yes: GO TO  2 .

   No: Check the following.

   • Harness for open or short between smart entrance control unit and interior lamp
   • Interior lamp

With CONSULT-II

1. Select ACTIVE TEST in MULTI REMOTE ENT with CONSULT-II.
2. Select INT/IGN ILLUM and touch ON.

Fig 1: Checking Interior Lamp Operation With CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Push unlock button of keyfob with all doors closed and driver's door locked, and check voltage between smart entrance control unit harness connector M144 terminal 31 (R) and ground.

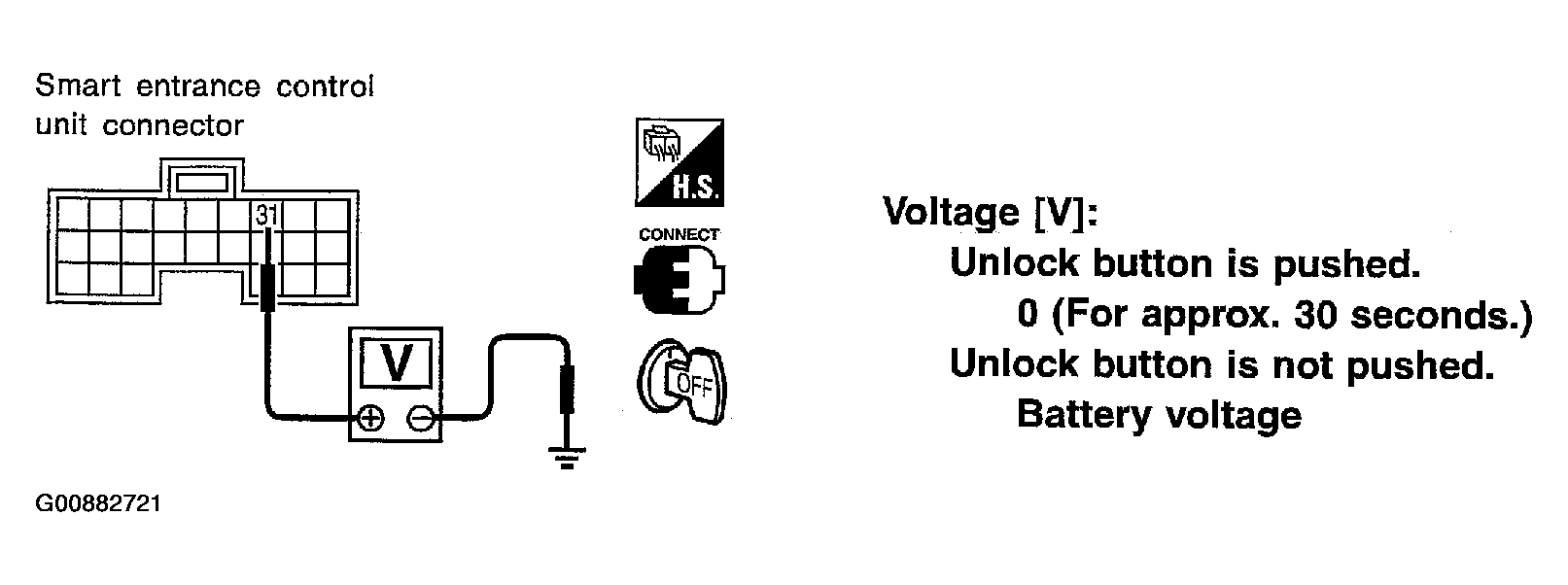

Fig 2: Checking Voltage Of Interior Lamp Terminal & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to wiring diagram in WIRING DIAGRAM - KEYLES -  .

1. OK or NG

   OK: System is OK.

   NG: Check harness open or short between smart entrance control unit and interior lamp.
