DTC P0011, P0021: IVT Control
›
Wiring Diagram
›
Bank 1
Bank 1

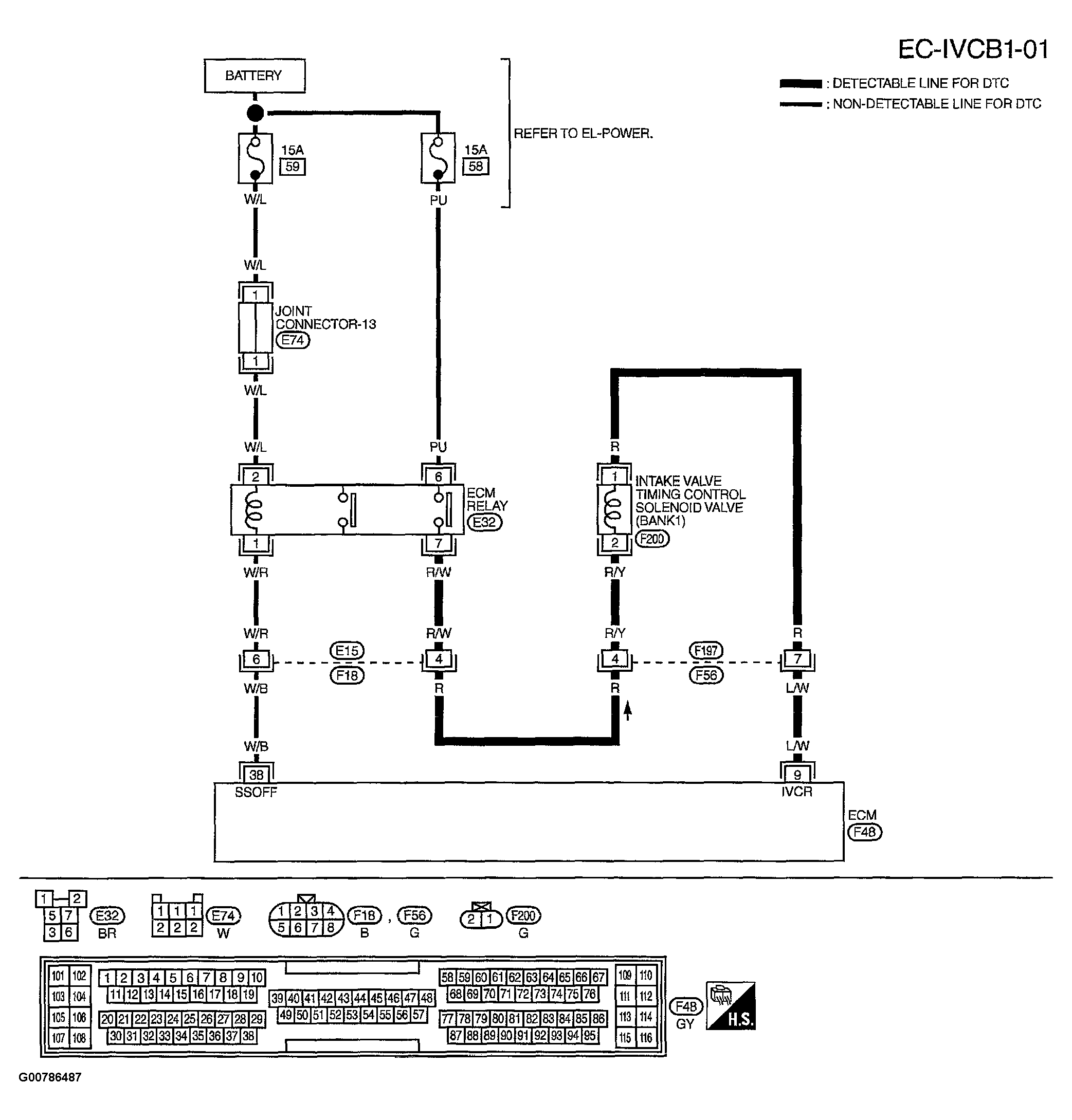

Fig 1: Displaying Wiring Diagram (EC-IVCB1-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
