DTC P0112 & DTC: P0113 IAT Sensor: Wiring Diagram

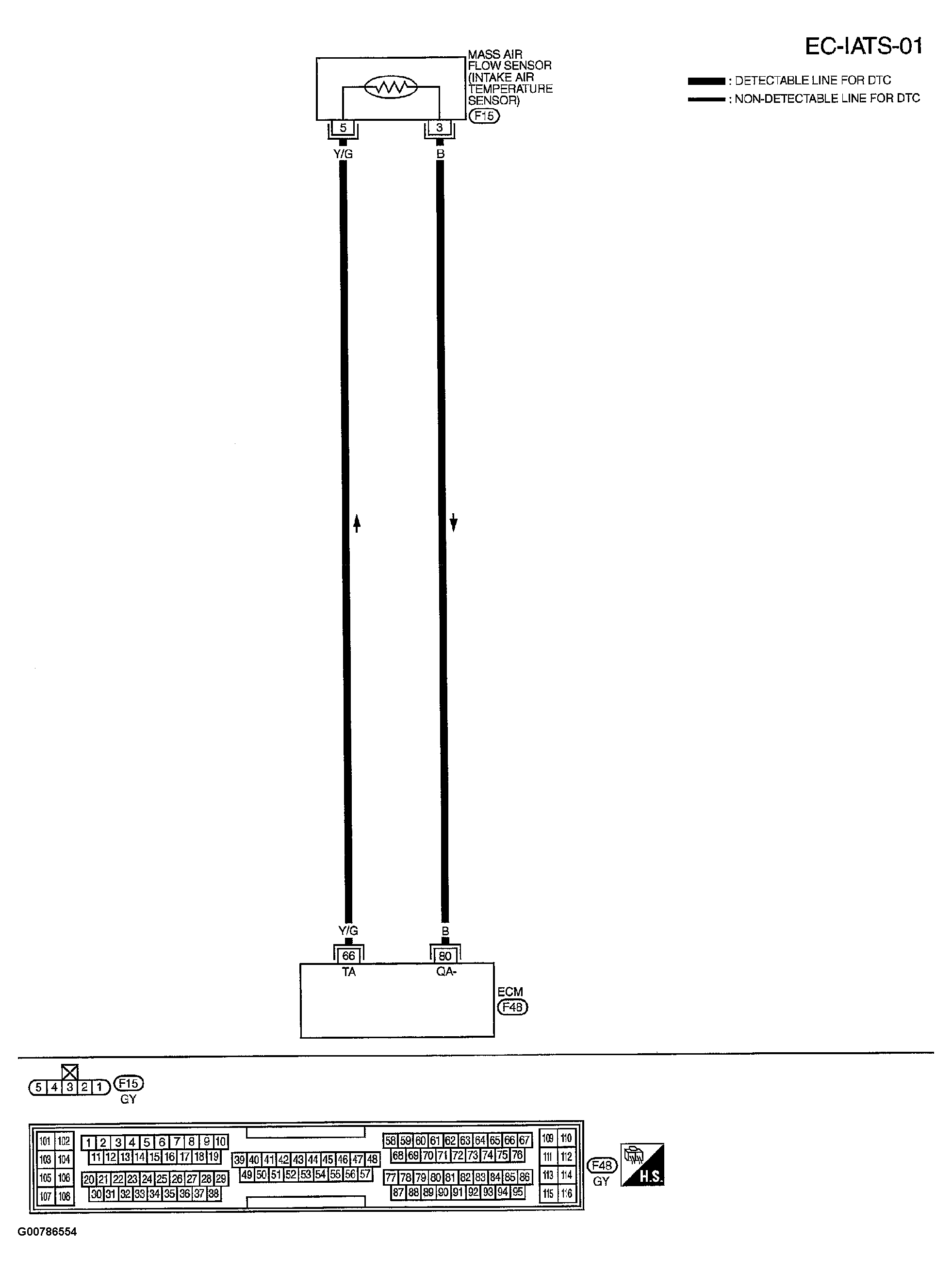

Fig 1: Displaying IAT Sensor Wiring Diagram (EC-IATS-01)
G00786554Courtesy of NISSAN MOTOR CO., U.S.A.
