Power Window
›
Consult-II Application Items
›
"Retained PWR"
"Retained PWR"

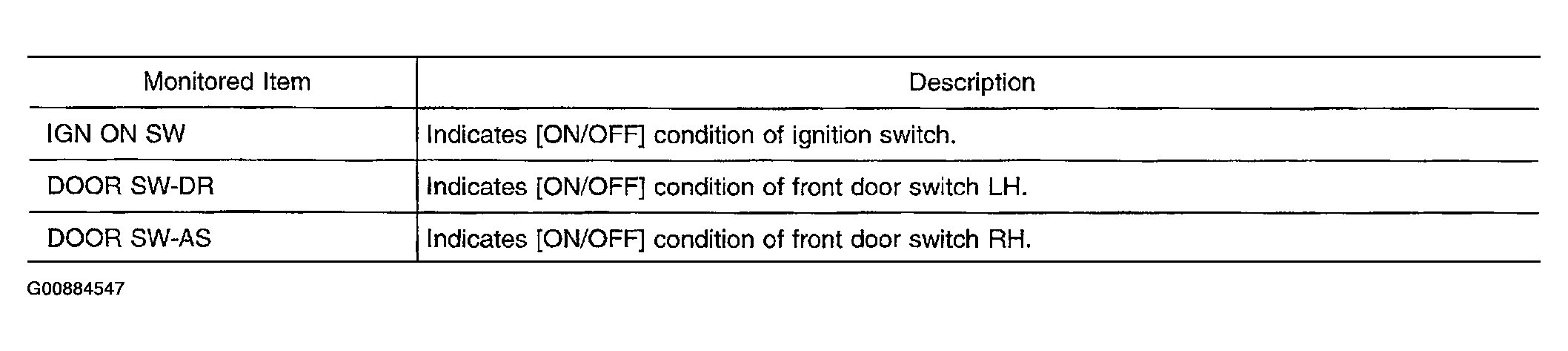

Fig 1: Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

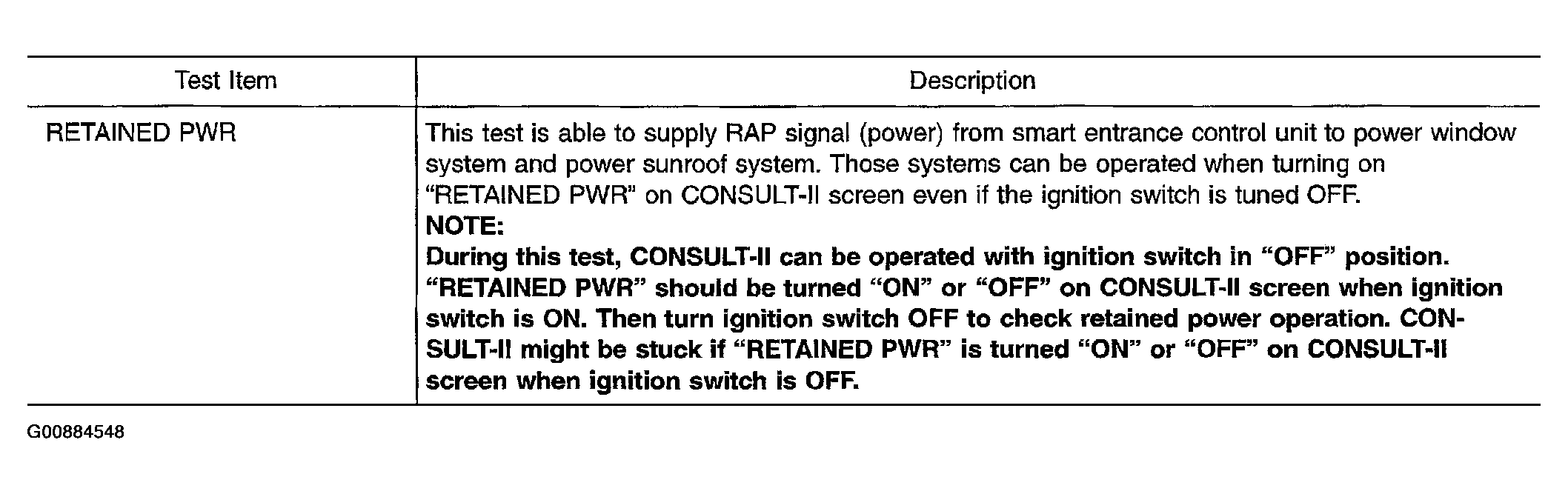

Fig 2: Active Test
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Work Support
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
