Home › Infiniti › 2004 › I35 › Repair and Diagnosis › Body & Frame › Power Windows › Power Window › Schematic

Power Window: Schematic

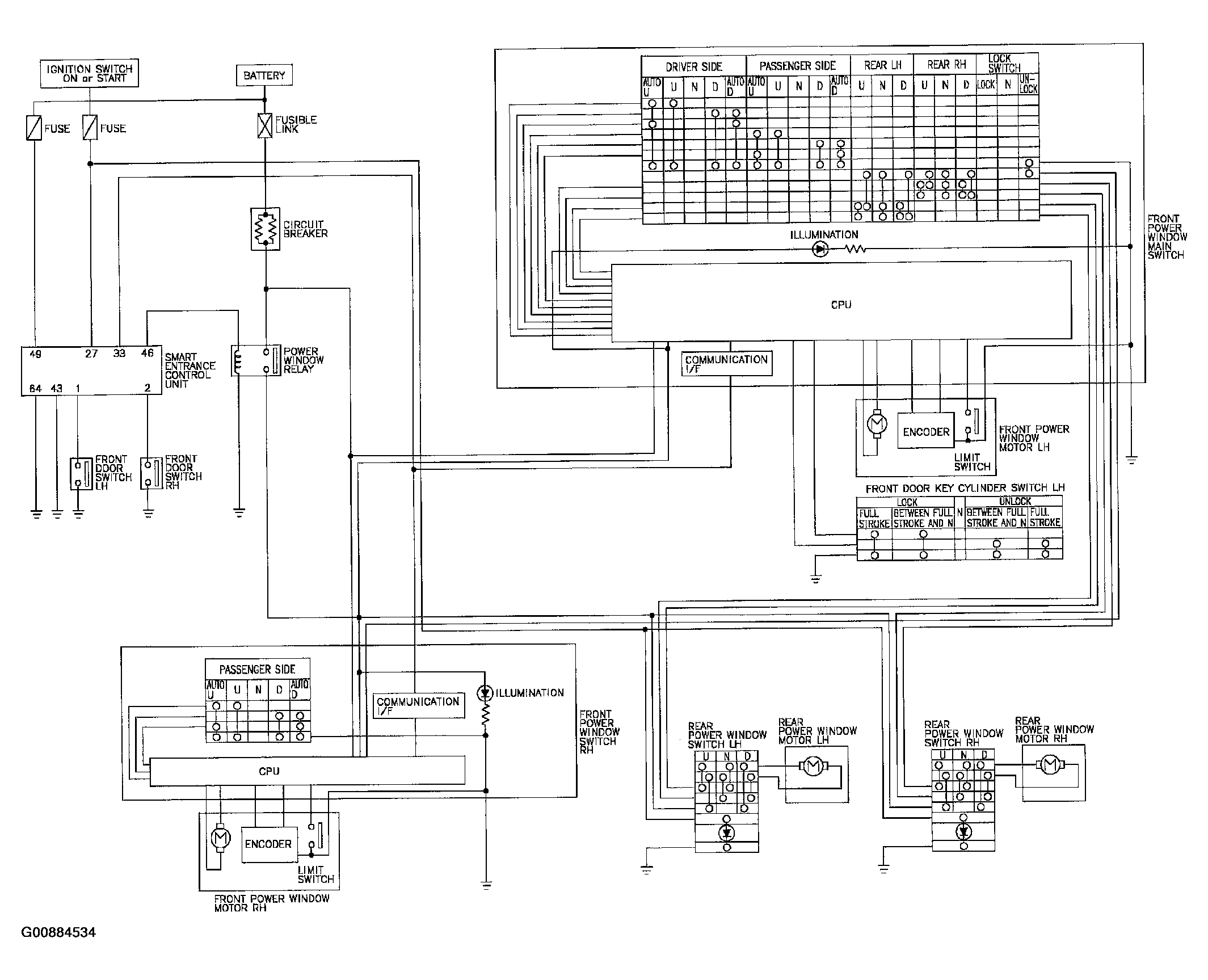

Fig 1: Power Window Schematic
G00884534Courtesy of NISSAN MOTOR CO., U.S.A.
