1 Check Sliding Encoder Output Signal

(Sliding Encoder Check)

Measure voltage between seat control unit LH terminal 18 and ground with CONSULT-II or oscilloscope when power seat slide is operated.

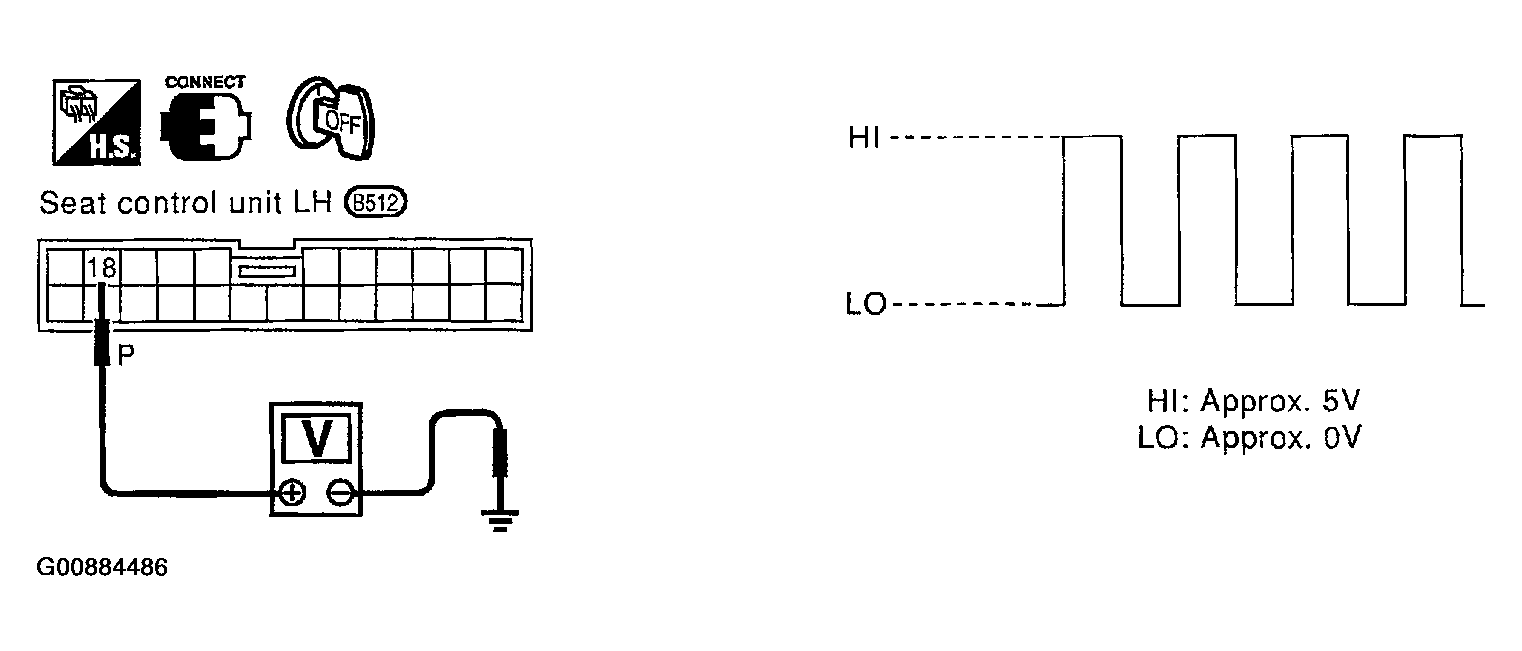

Fig 1: Checking Sliding Encoder For Output Signal

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Sliding encoder is OK.

NG: GO TO 2.
