3 Check Sliding Encoder Open Circuit

1. Disconnect seat control unit LH connector and sliding device LH connector.
2. Check harness continuity between seat control unit LH connector and sliding device LH connector.

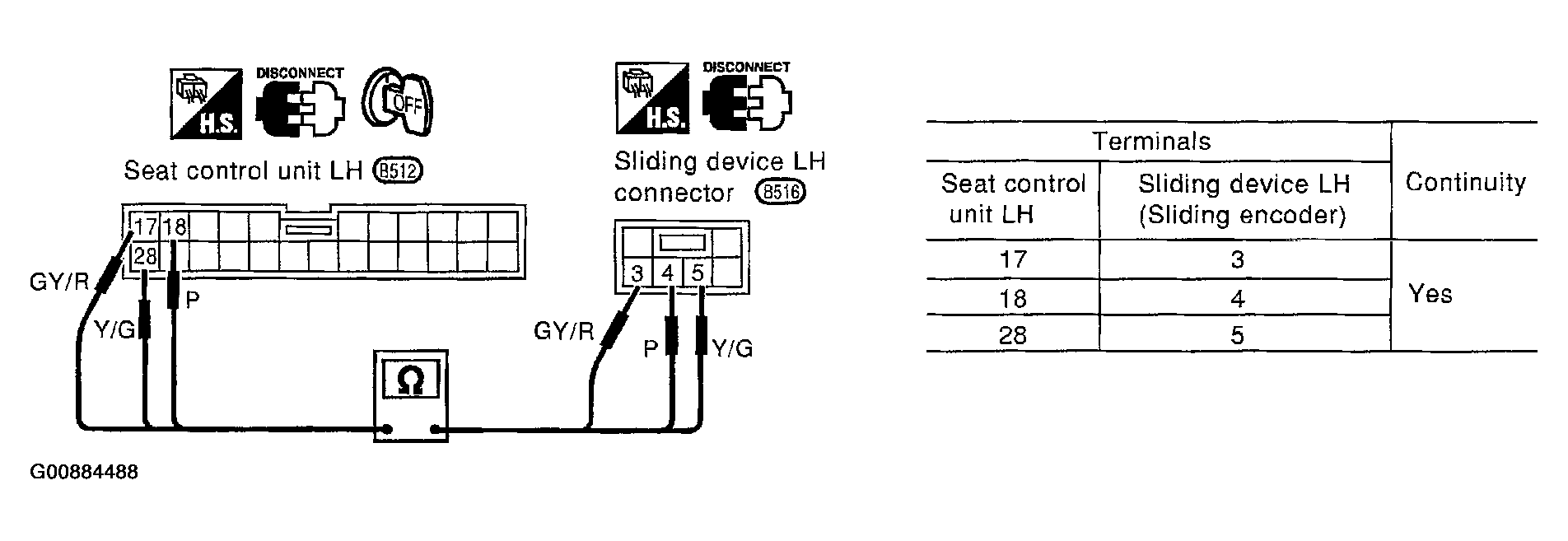

   Fig 1: Checking Sliding Encoder For Open Circuit

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 4.

NG: Repair harness.
