Abs Actuator And Electric Unit (Control Unit): Removal

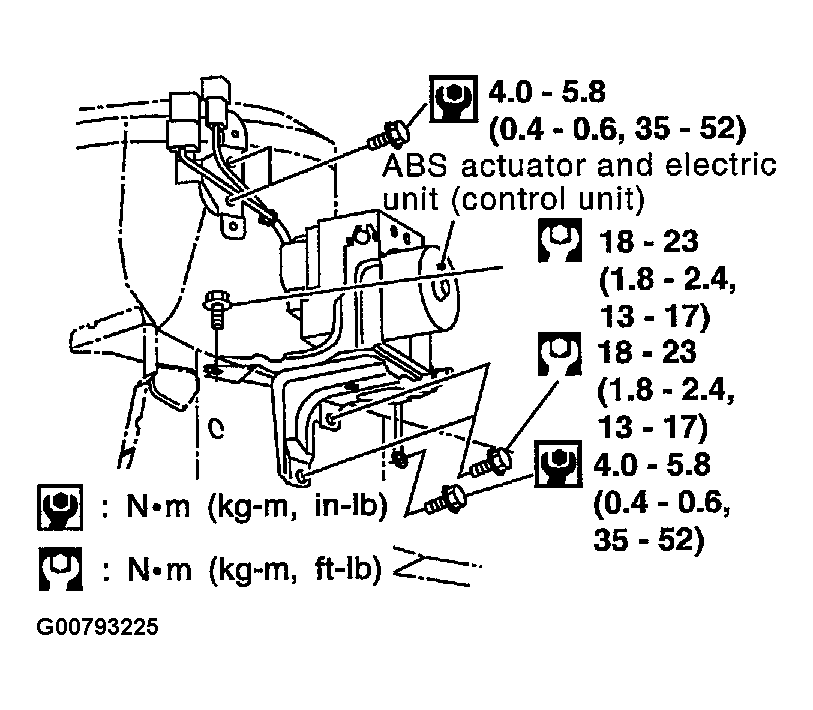

Fig 1: Removing ABS Actuator & Electric Unit W/ Torque Specifications

G00793225

Courtesy of NISSAN MOTOR CO., U.S.A.

Disconnect battery cable.
Drain brake fluid. See BLEEDING BRAKE SYSTEM .
Remove air cleaner and duct.
Apply different colored paint to each pipe connector and actuator to prevent incorrect connection.
Disconnect harness connectors, brake pipes and remove fixing nuts and actuator ground cable.
