Abs Hydraulic Circuit
Abs Hydraulic Circuit

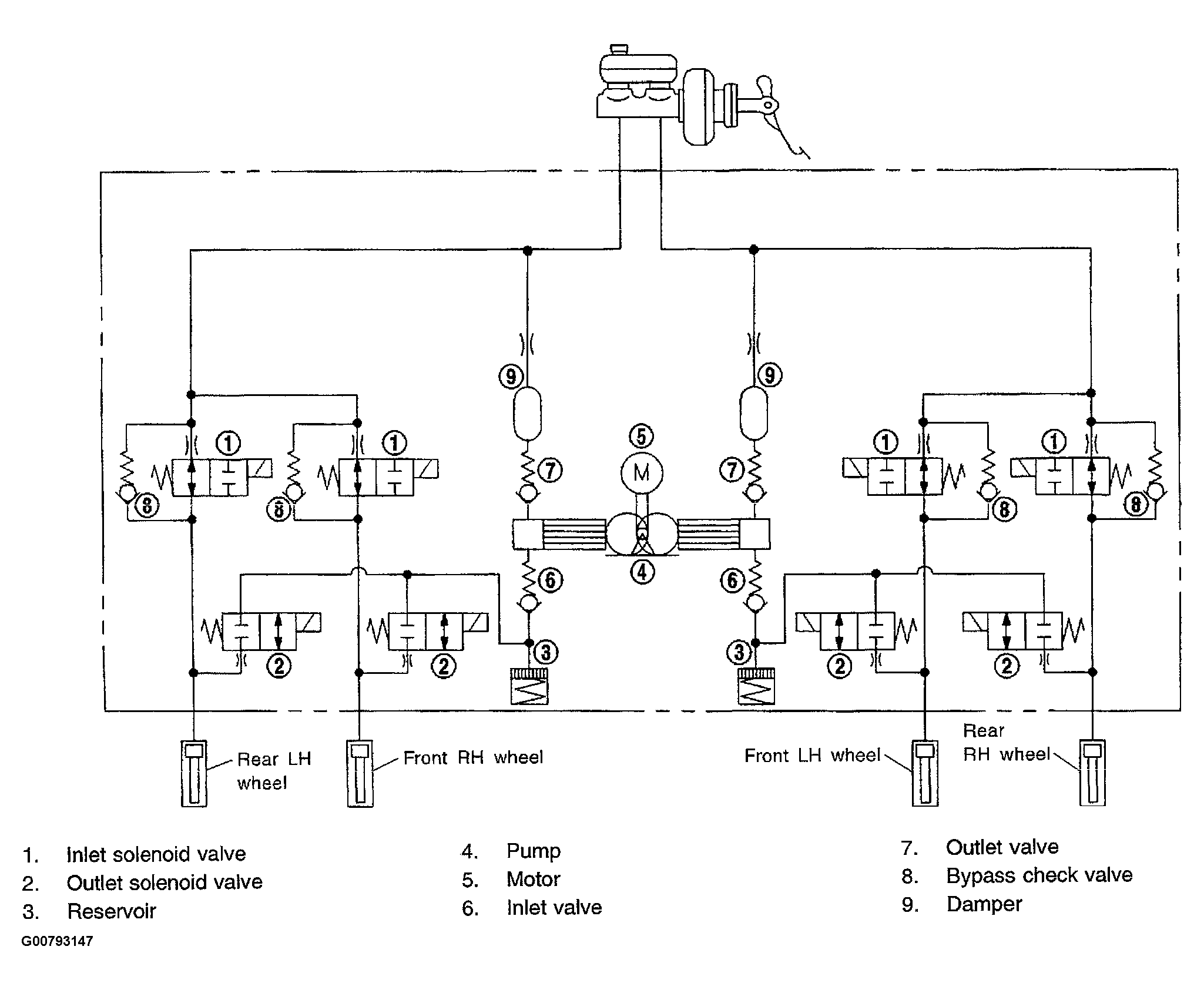

Fig 1: Identifying ABS Hydraulic Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
