Brake Control System - TCS
›
Schematic
Brake Control System - TCS: Schematic

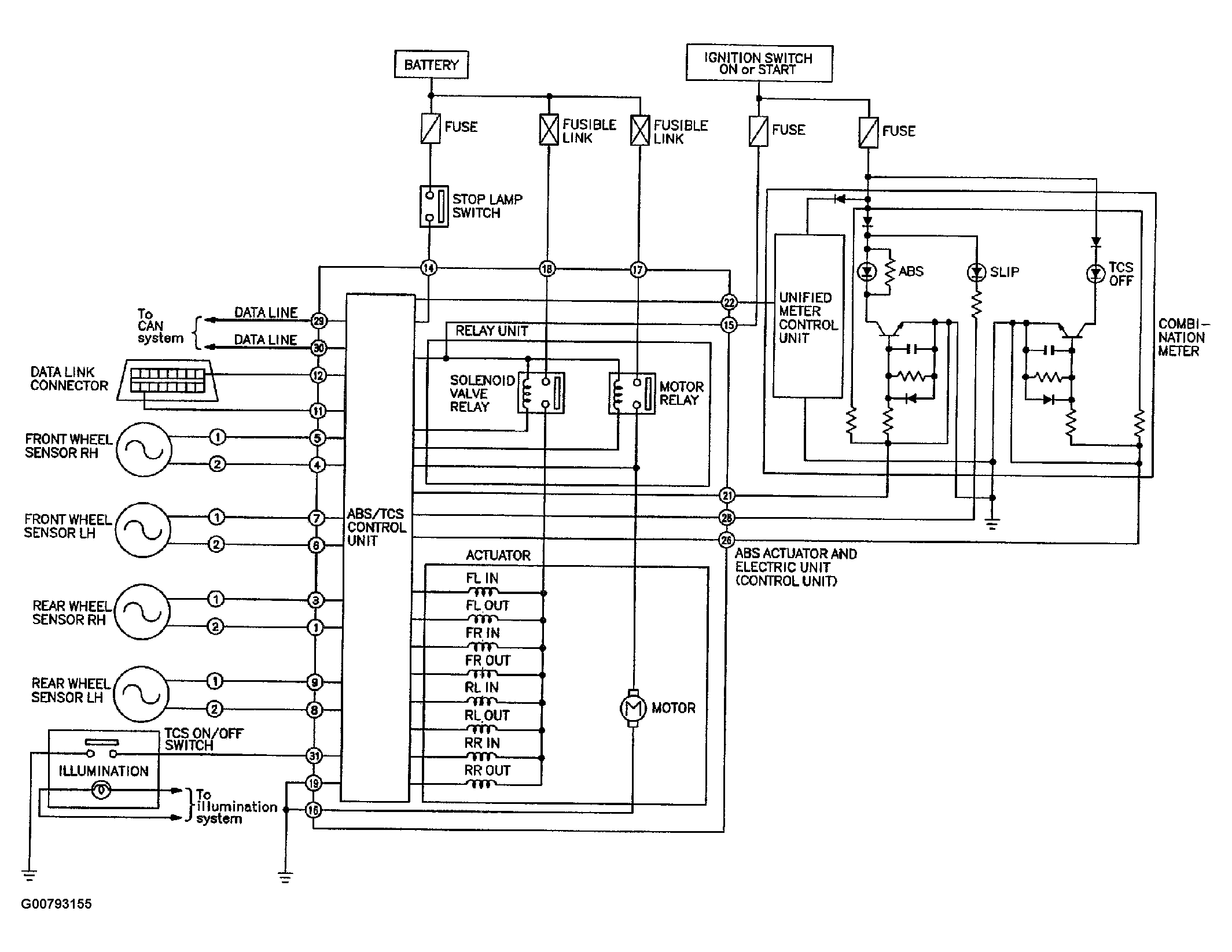

Fig 1: TCS Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
