Diagnostic Procedure 2
Diagnostic Procedure 2
For diagnostic procedure 2, see

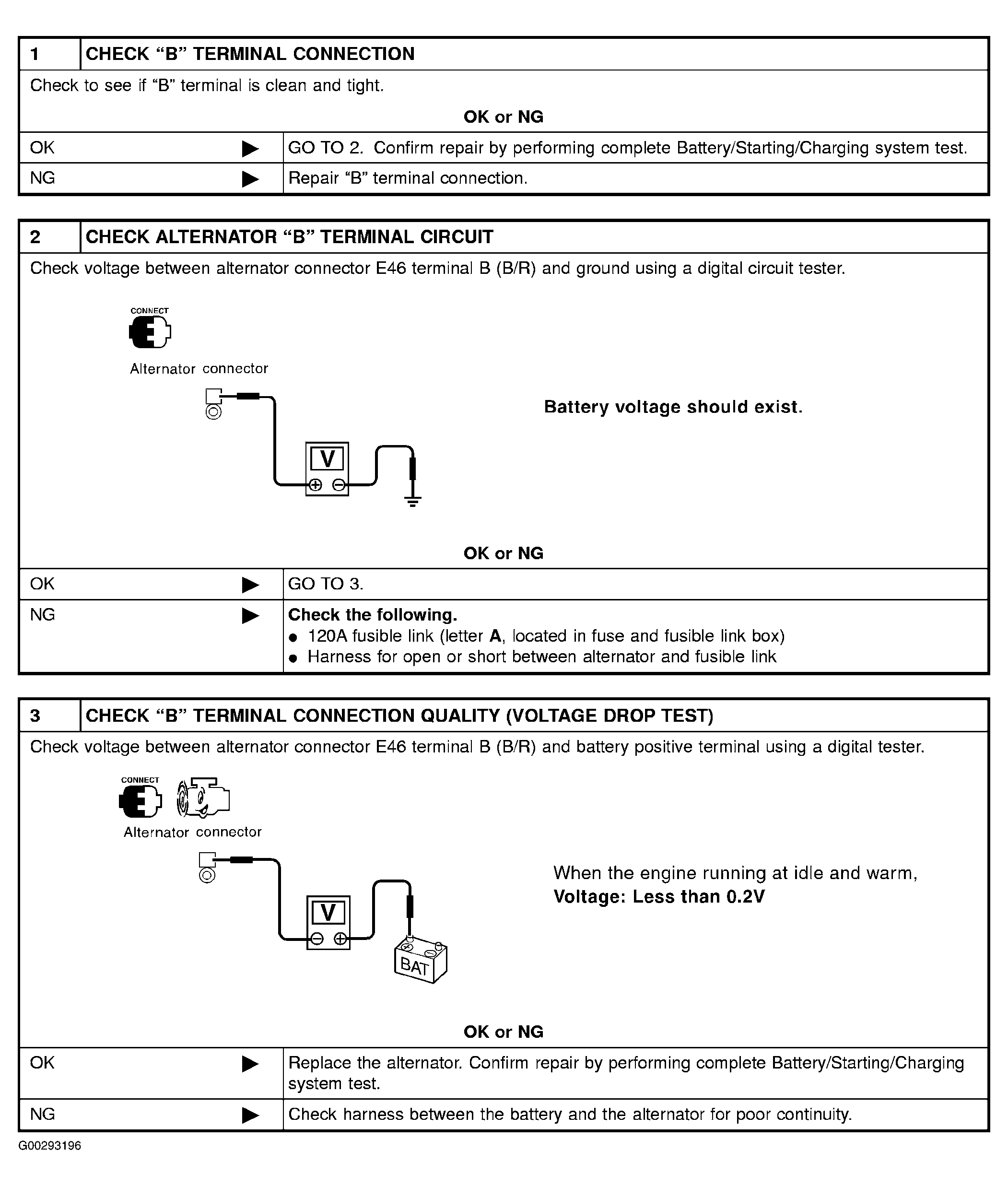

Fig 1
.
Fig 1: Diagnostic Procedure 2
Courtesy of NISSAN MOTOR CO., U.S.A.
