Lubrication Circuit
Lubrication Circuit

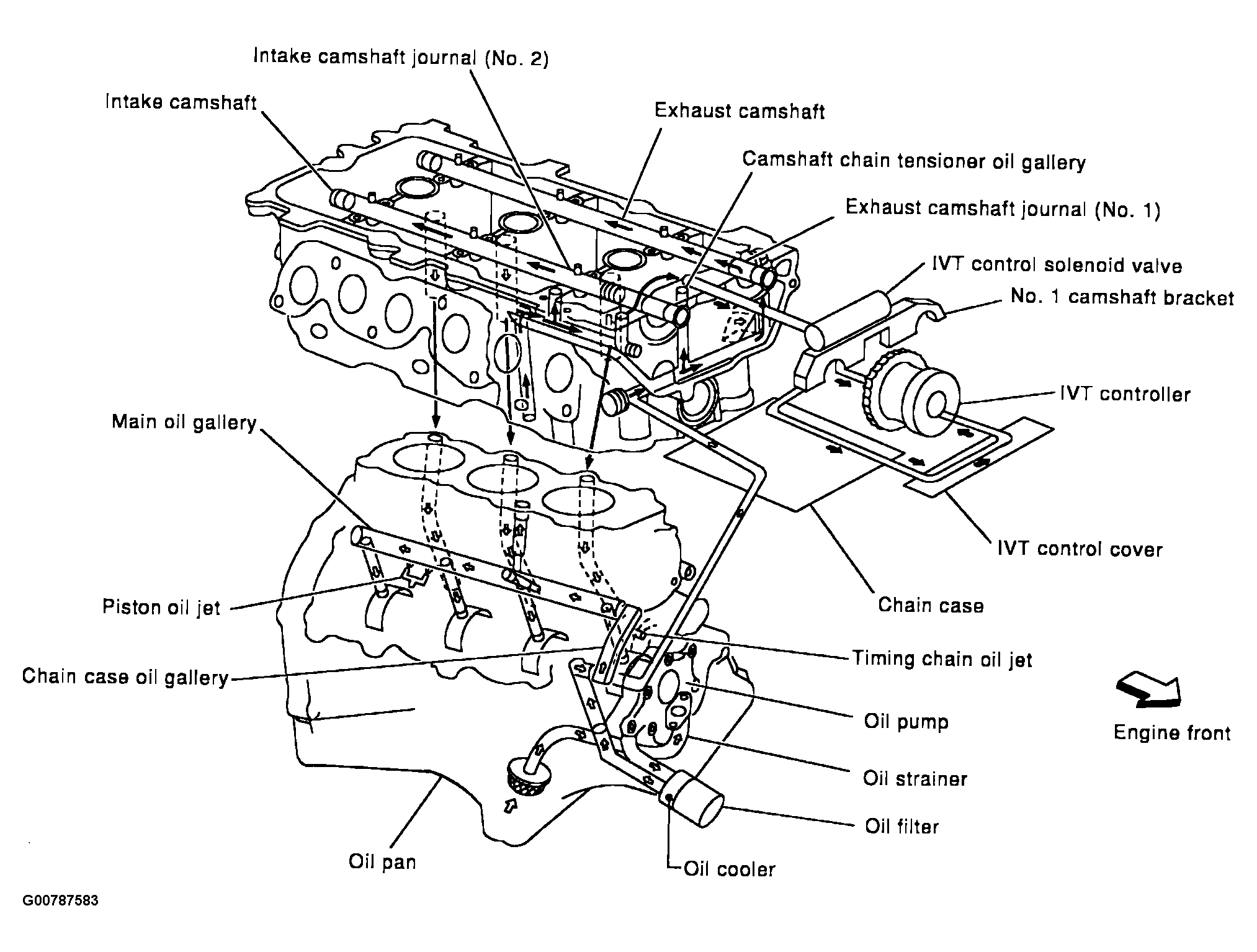

Fig 1: Identifying Lubrication Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.

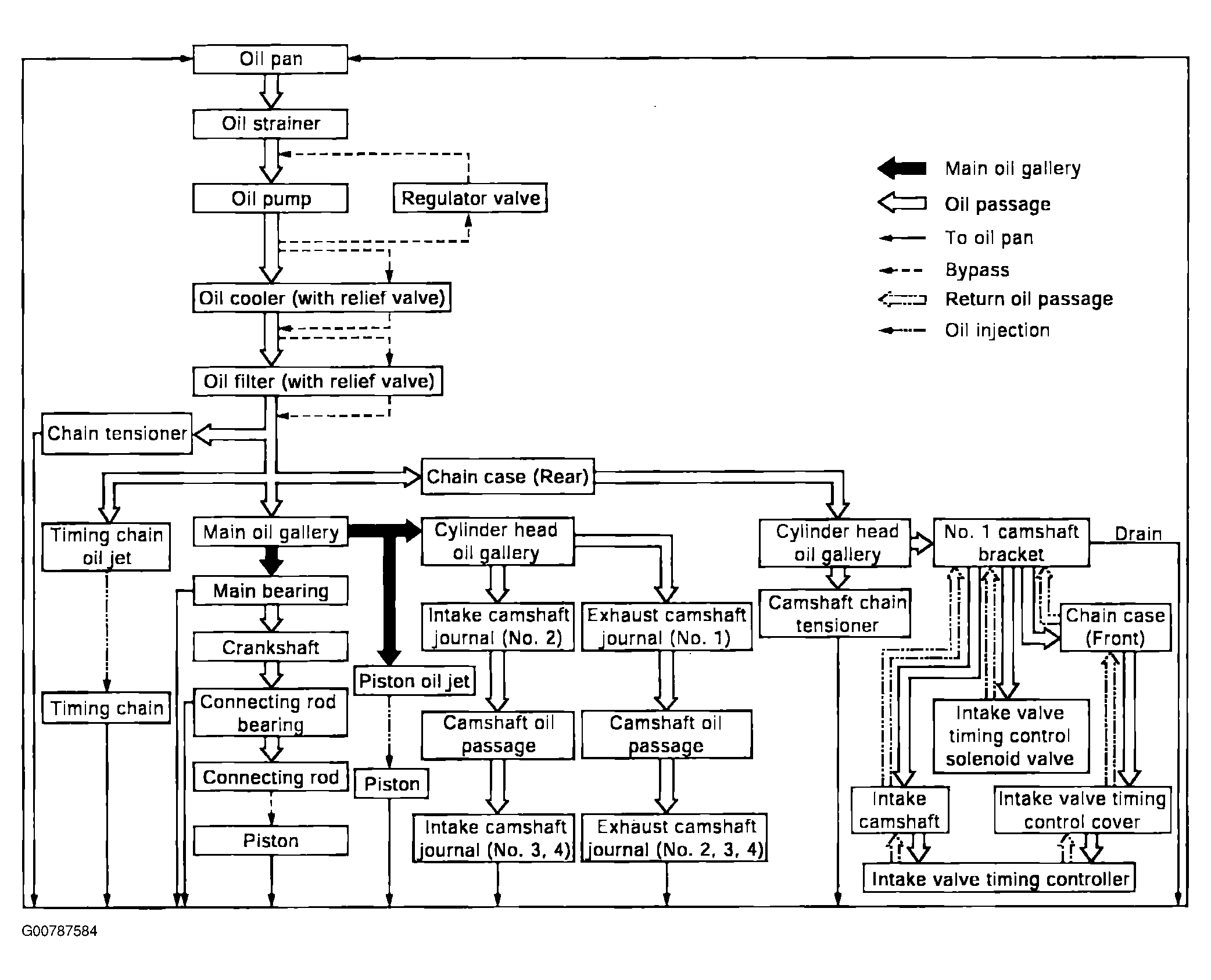

Fig 2: Engine Lubrication System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
