ASCD Indicator Lamp: Wiring Diagram

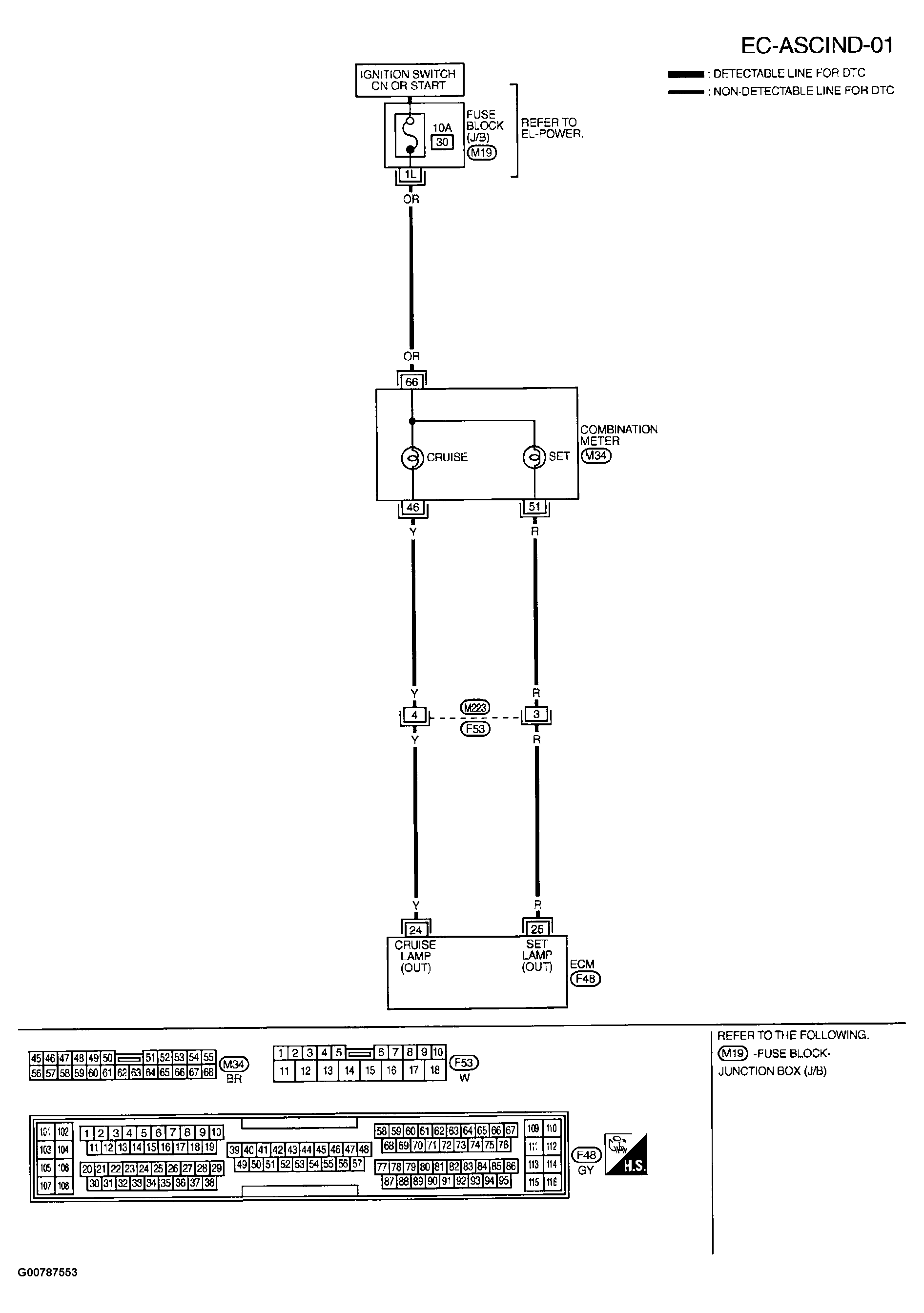

Fig 1: Displaying Wiring Diagram (EC-ASCIND-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
